Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
3.6WDOH6125

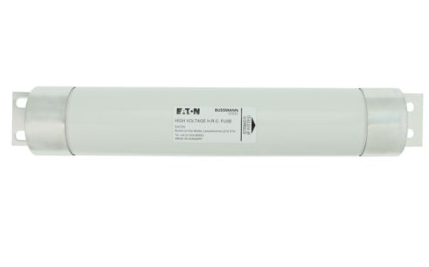

3.6WDOH6125 is a medium voltage motor fuse link from Eaton designed for reliable short circuit protection in motor circuits.This fuse link is rated for 125 amperes and 3.6 kilovolts AC, conforming to British Standard dimensions. It features a back-up fuse type with a striker for indication and is sized 51 x 192 mm. The fuse complies with IEC60282-1, IEC644, and BS5907 standards, ensuring high performance and safety in motor protection applications.
- Amperage: 125A
- Voltage Rating: 3.6 kV AC
- Fuse Type: Back-up motor fuse link
- Dimensions: 51 x 192 mm
- Standards: IEC60282-1, IEC644, BS5907
- Mounting: British Standard (BS) dimensions
- Includes striker for fuse operation indication
- Manufacturer Series: Eaton Bussmann
Specifications
- Part Number: 3.6WDOH6125
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 3600
- Amperage : 125
- AIC rating : [email protected]
- Connection : Bolt-In Blade
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 05171261683
- GTIN : 00051712616836
- Dimensions : 192 mm x 51 mm x 51 mm (Length/Depth x Height x Width)
- Weight : 2.53
