- Manufacturer:ABB
- Sub-Category:Molded Case
Description
2CSF204001R1250

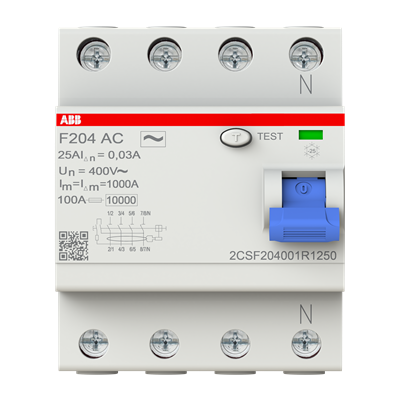

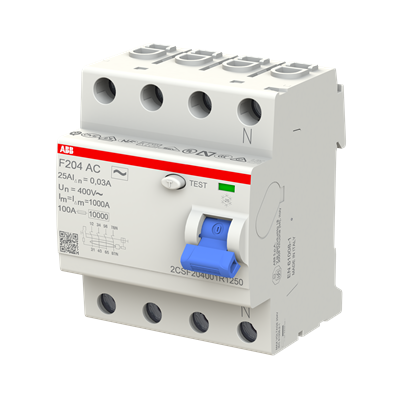

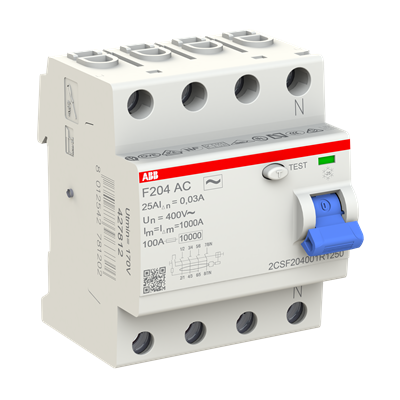

2CSF204001R1250 is an ABB F204 AC-25/0.03 Residual Current Circuit Breaker (RCCB) designed for protection against earth fault currents.
This 4-pole RCCB features a rated current of 25 amps and a rated residual current sensitivity of 30 mA. It operates at a rated voltage of 230/400 V AC with a rated insulation voltage of 500 V and a rated conditional short-circuit current of 10 kA. The device complies with technical UL/CSA standards and offers high mechanical and electrical endurance with 20,000 and 10,000 cycles respectively. It is designed for modular mounting with a width of 70 mm and includes protections against shock and surge currents.
- Manufacturer: ABB
- Part Number: 2CSF204001R1250
- Type: Residual Current Circuit Breaker (RCCB)
- Rated Current: 25 A
- Number of Poles: 4
- Rated Residual Current: 30 mA
- Rated Voltage: 230/400 V AC
- Rated Insulation Voltage: 500 V
- Rated Conditional Short-Circuit Current: 10 kA
- Trip Unit: Type AC
- Mechanical Endurance: 20,000 cycles
- Electrical Endurance: 10,000 cycles
- Width: 70 mm (4 modules)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 2CSF204001R1250
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- Weight : 5
