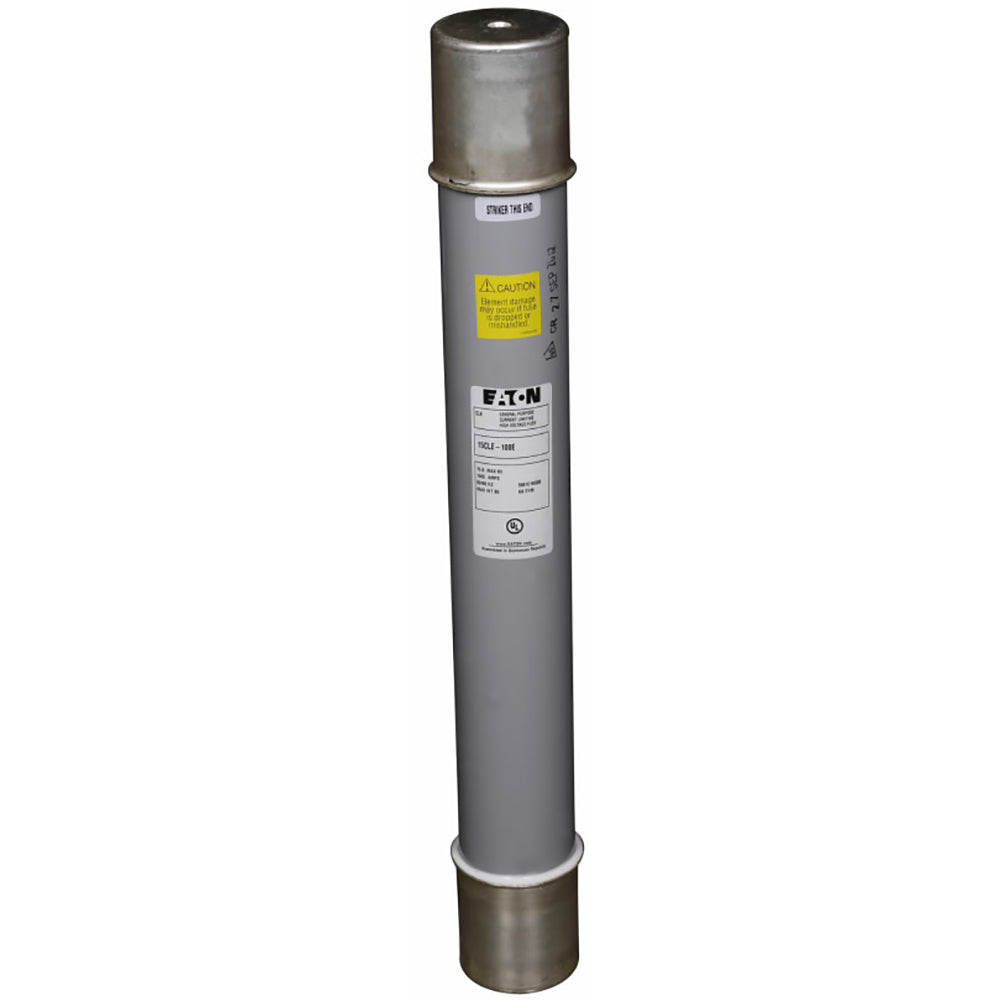

2CLE-20E - Eaton Bussmann CLE E-Rated Fuse 20A 2.4 kV 50 kAIC Class E Single Barrel

2CLE-20E

2CLE-20E is an Eaton Bussmann CLE E-Rated medium voltage fuse designed for transformer and industrial power protection applications. This single barrel fuse features a 20A current rating, 2.4 kV voltage rating, and a 50 kAIC interrupting capacity, meeting ANSI C37.46 standards for reliable performance in demanding environments. This cartridge-style fuse is part of the Bussmann CLE series, offering E-rated protection for medium voltage circuits. It is suitable for use in single barrel fuse holders and provides current limiting protection for critical equipment.

• Part Number: 2CLE-20E
• Manufacturer: Eaton Bussmann
• Series: CLE
• Amperage Rating: 20A
• Voltage Rating: 2.4 kV
• Interrupting Rating: 50 kAIC
• Fuse Type: Class E, E-Rated
• Mounting Type: Single Barrel
• Application: Transformer Protection
• Standards: ANSI C37.46
• Frame: Medium Voltage
• Features: Current Limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2CLE-20E
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Voltage : 2750
• Amperage : 20
• AIC rating : [email protected]
• Diameter : 3
• Class Rating : R
• Barrels : 2
• Clip Center : 8.1

Product Data

• UPC : 786670215967
• GTIN : 00786670215967
• Country of Origin : Canada
• Dimensions : 9.5 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 5
• Certification : ,IEEE Std. C37.41
