Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

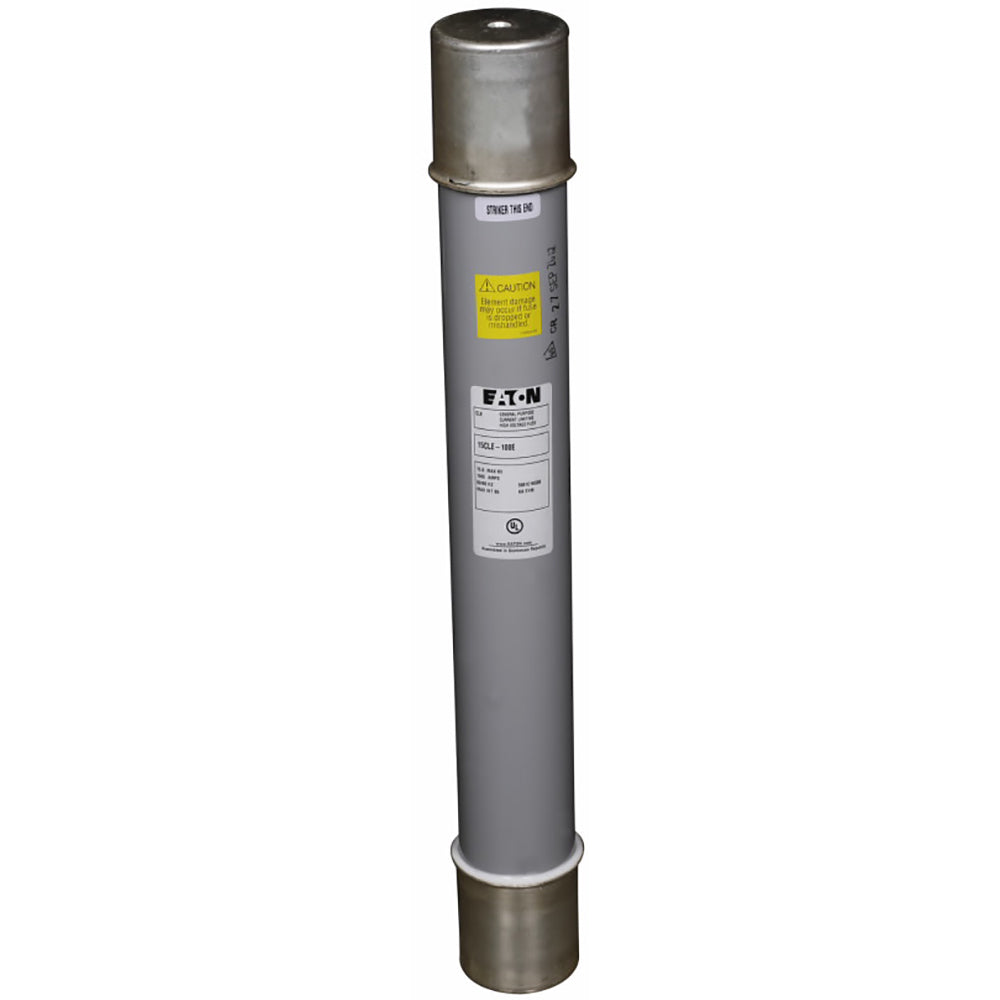

2CLE-150E
2CLE-150E is an Eaton Bussmann series CLE medium voltage fuse designed for reliable circuit protection in industrial applications.This single barrel fuse is rated for 150 amps and 2.4 kV voltage with a 50 kA interrupting rating. It features an E-rated power classification suitable for feeder circuit, switchgear, and transformer protection. The fuse is designed for indoor use with ferrule mounting and meets ANSI C37.46 performance standards.
- Amperage: 150A
- Voltage Rating: 2.4 kV (2400V)
- Interrupting Rating: 50 kAIC
- Fuse Type: Single barrel, cartridge
- Mounting Type: Ferrule mounted
- Series/Frame: CLE, Class E
- Application: Medium voltage circuit protection
- Agency Certifications: Meets ANSI C37.46
- Dimensions: Approximately 3 inch diameter
- Indoor use
Specifications
- Part Number: 2CLE-150E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : CLE
- Voltage : 2750
- Amperage : 150
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 7
Product Data
- UPC : 786670218104
- GTIN : 00786670218104
- Country of Origin : United States
- Dimensions : 10.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : ,IEEE Std. C37.41
