Product Info
- Manufacturer:Mersen
- Sub-Category:Electrical bushing
Description
262

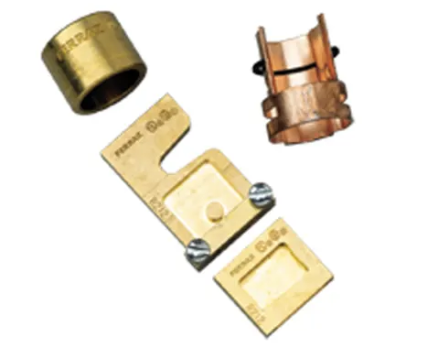

262 is a Mersen Ferraz Shawmut fuse reducer designed to allow a 60 amp fuse to fit into 200 amp clips for Class H and K fuses at 250 volts.This non-rejection fuse reducer improves circuit protection by enabling the use of closer rated time-delay fuses in existing equipment with higher ampere rated clips. It is UL Listed and CSA Certified, suitable for applications requiring reliable fuse reduction without bolt-on mounting.
- Manufacturer: Mersen, Ferraz Shawmut
- Part Number: 262
- Type: Fuse Reducer, Non-Rejection
- Reduced Fuse Amperage Rating: 60 Amps
- Fuse Clip Amperage Rating: 200 Amps
- Voltage Rating: 250 Volts
- Fuse Classes: H and K
- Standards: UL Listed Guide No. IZZR, CSA Certified
- Application: Allows use of lower rated fuses in higher amp clips
Specifications
- Part Number: 262
- Manufacturer : Mersen
- Brand : Mersen
- Category : Conduit & Fittings
- Item Subcategory : Electrical bushing
- Type : 262
- Voltage : 250
- Amperage Maximum : 200
- Amperage Minimum : 60
Product Data
- UPC : 784564102621
- Country of Origin : Mexico
- Dimensions : 3.96 in L x 3.24 in W x 1.728 in H
- Weight : 0.3
- Certification : cULus Listed
