Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Switches
Description
2601BG1

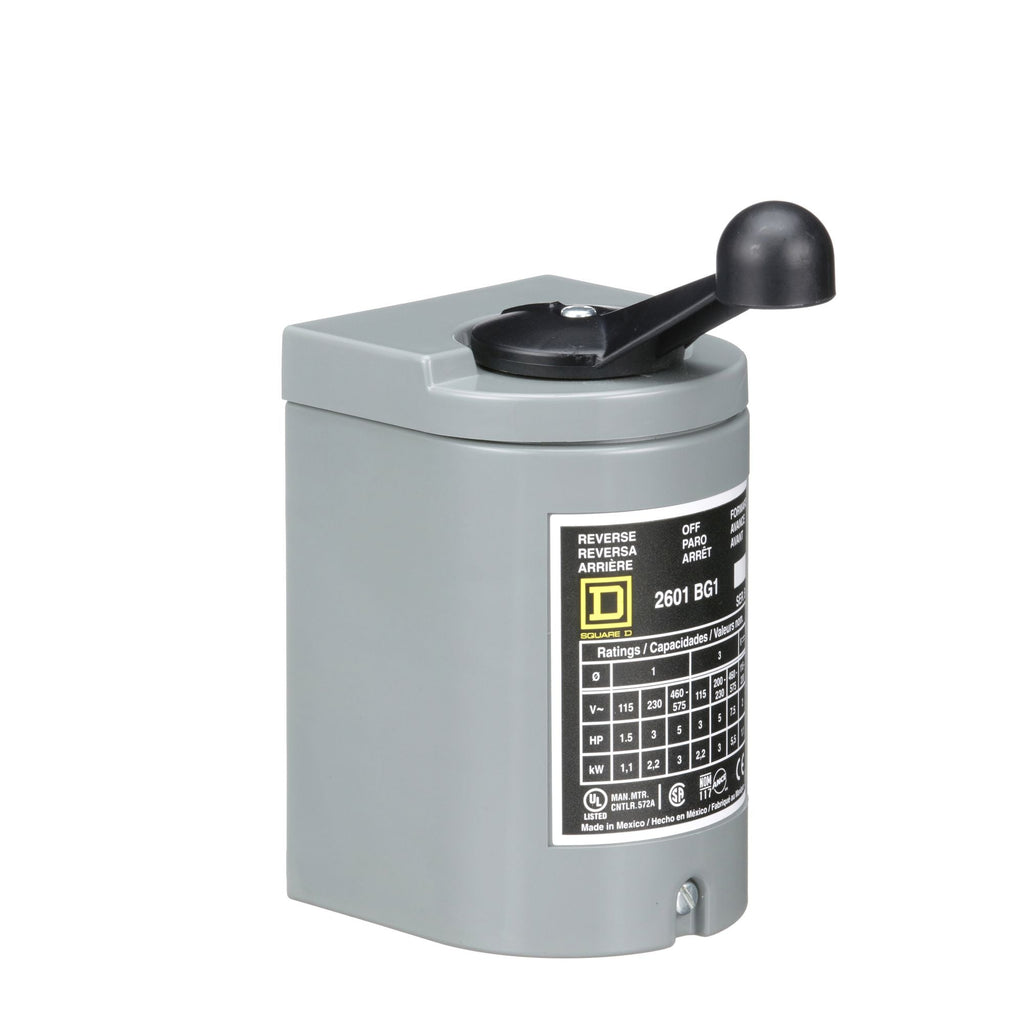

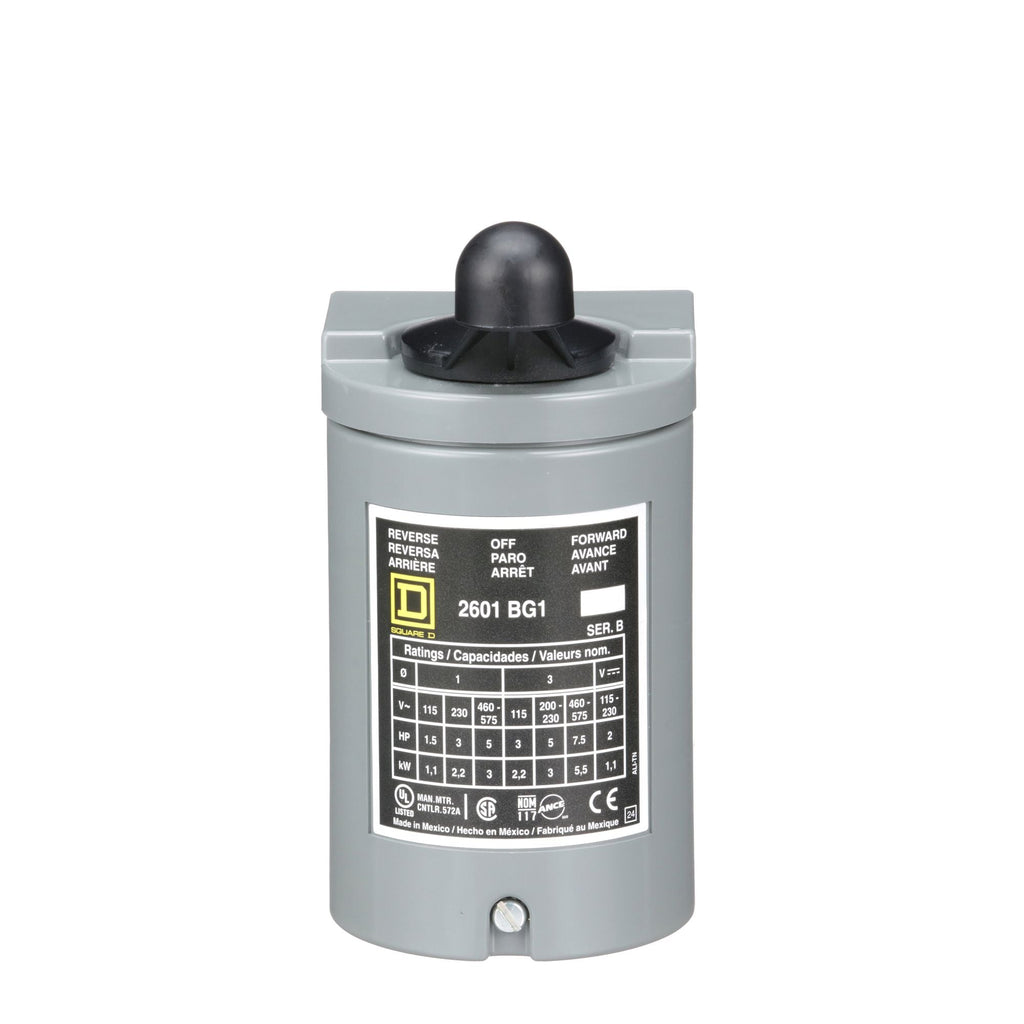

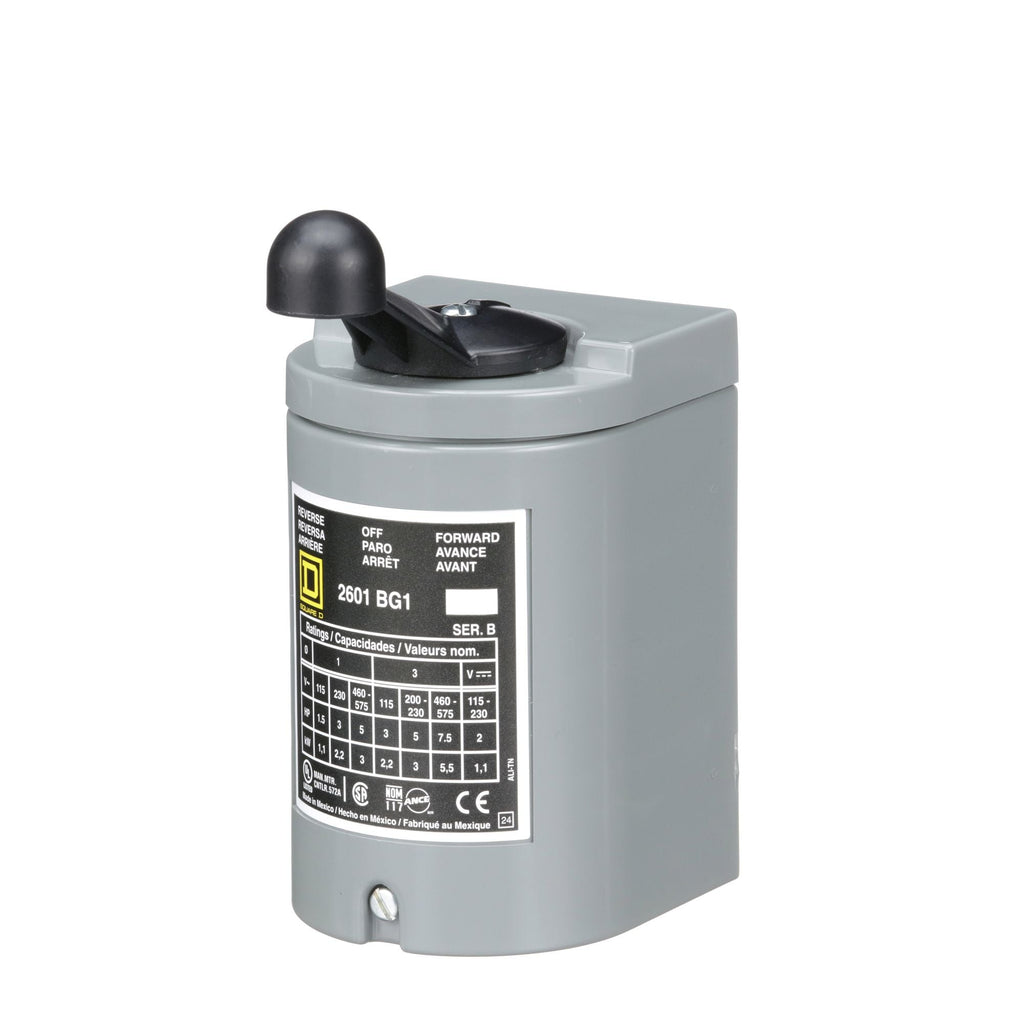

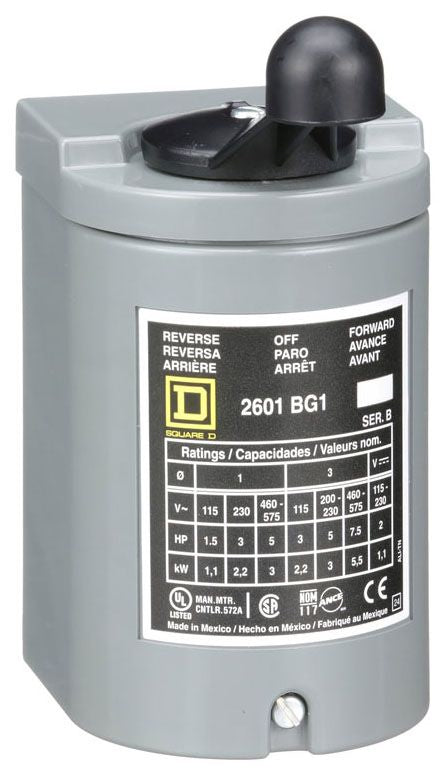

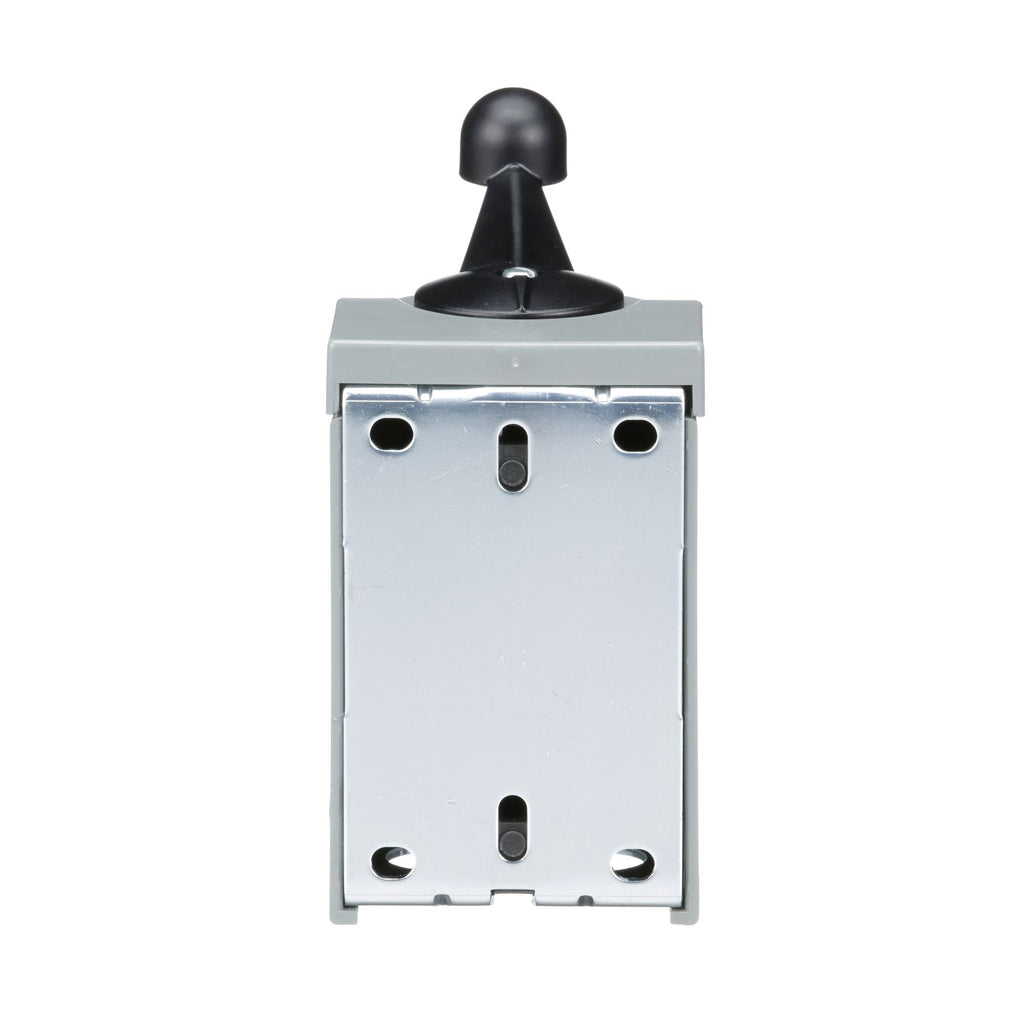

2601BG1 is a Square D reversing drum switch designed for manual motor control applications with a NEMA 1 general purpose enclosure.This 3-pole switch supports up to 600 VAC and 250 VDC, handling 5 HP at 575 VAC for single-phase motors and 7.5 HP at 575 VAC for polyphase motors. It features screw-clamp terminals for electrical connections and is UL listed and CSA certified for safety and reliability. The switch is suitable for use with AC or DC squirrel cage and single-phase motors designed for reversing service and can be field converted from maintained to momentary operation.
- Manufacturer: Square D
- Part Number: 2601BG1
- Type: Reversing Drum Switch
- Poles: 3
- Voltage Rating: 600 V AC, 250 V DC
- Horsepower Rating: 5 HP single phase, 7.5 HP polyphase at 575 VAC
- Mounting: NEMA 1 Enclosure (General Purpose)
- Electrical Connection: Screw-clamp terminals
- Certifications: UL Listed, CSA Certified
- Operation: Handle operated, field convertible from maintained to momentary
Specifications
- Part Number: 2601BG1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Switches
- Section : Drum switch
- Family : B Series
- Voltage : 600 /250 DC
Product Data
- UPC : 785901555438
- GTIN : 785901555438
- Country of Origin : Mexico
- Dimensions : 5.38 in (136.65 mm) x 2.68 in (68.07 mm) x 4.61 in (117.09 mm) (Height x Width x Depth)
- Weight : 2.25 lb
- Certification : CSA Cetrified, UL Listed
