Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Control Stations
Description
2601AG2

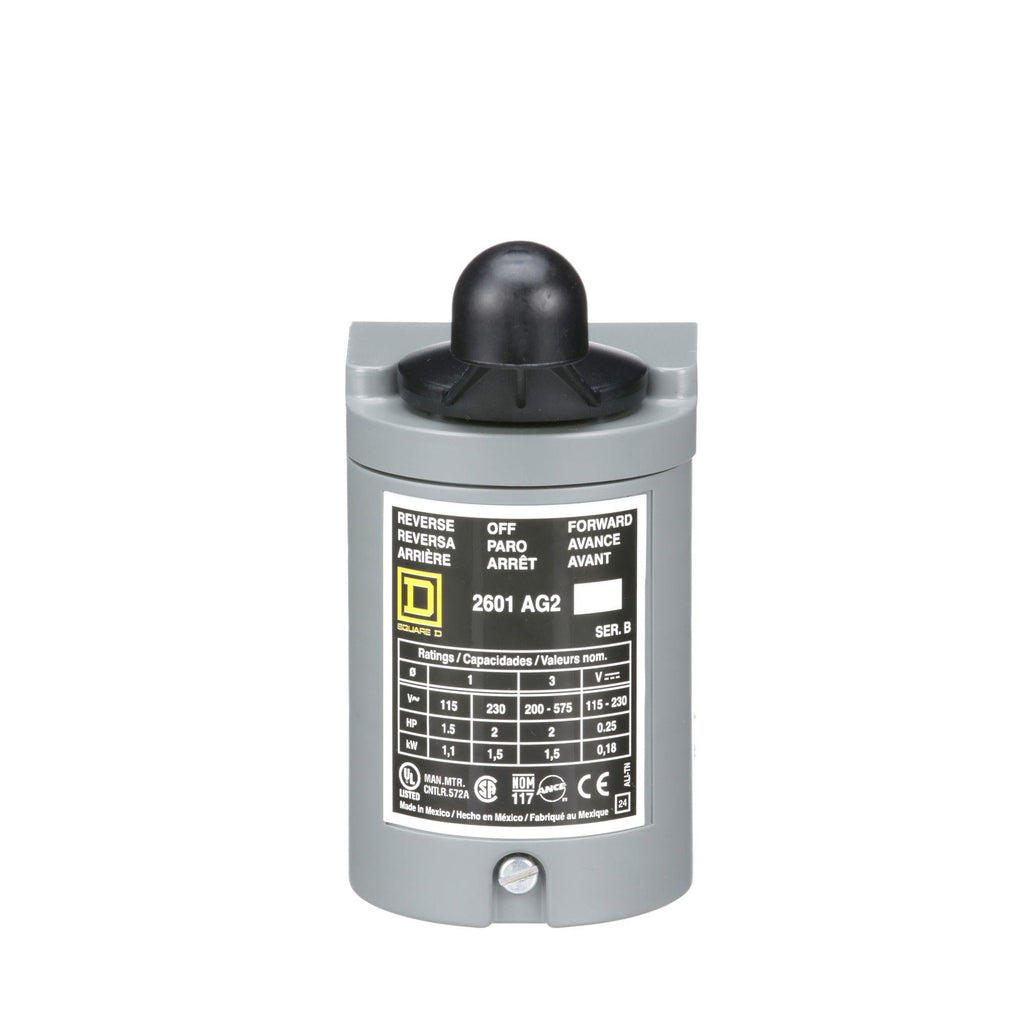

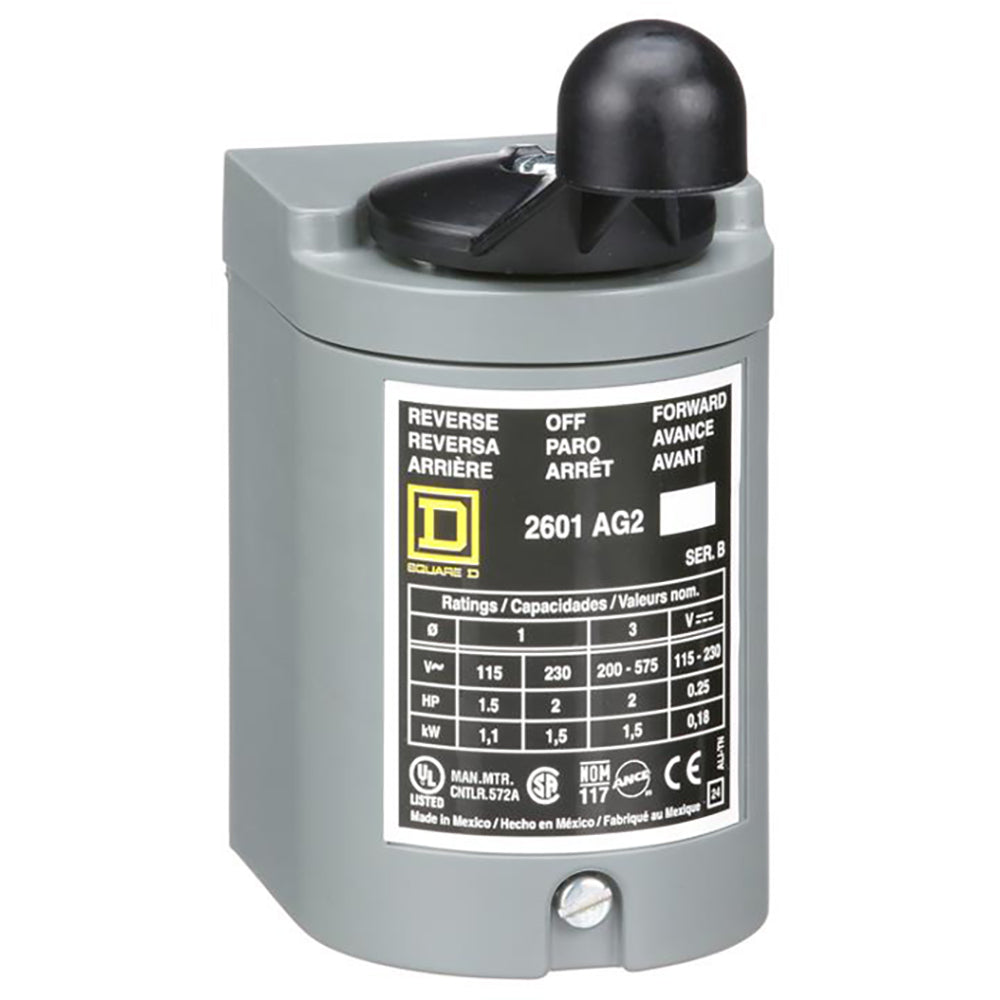

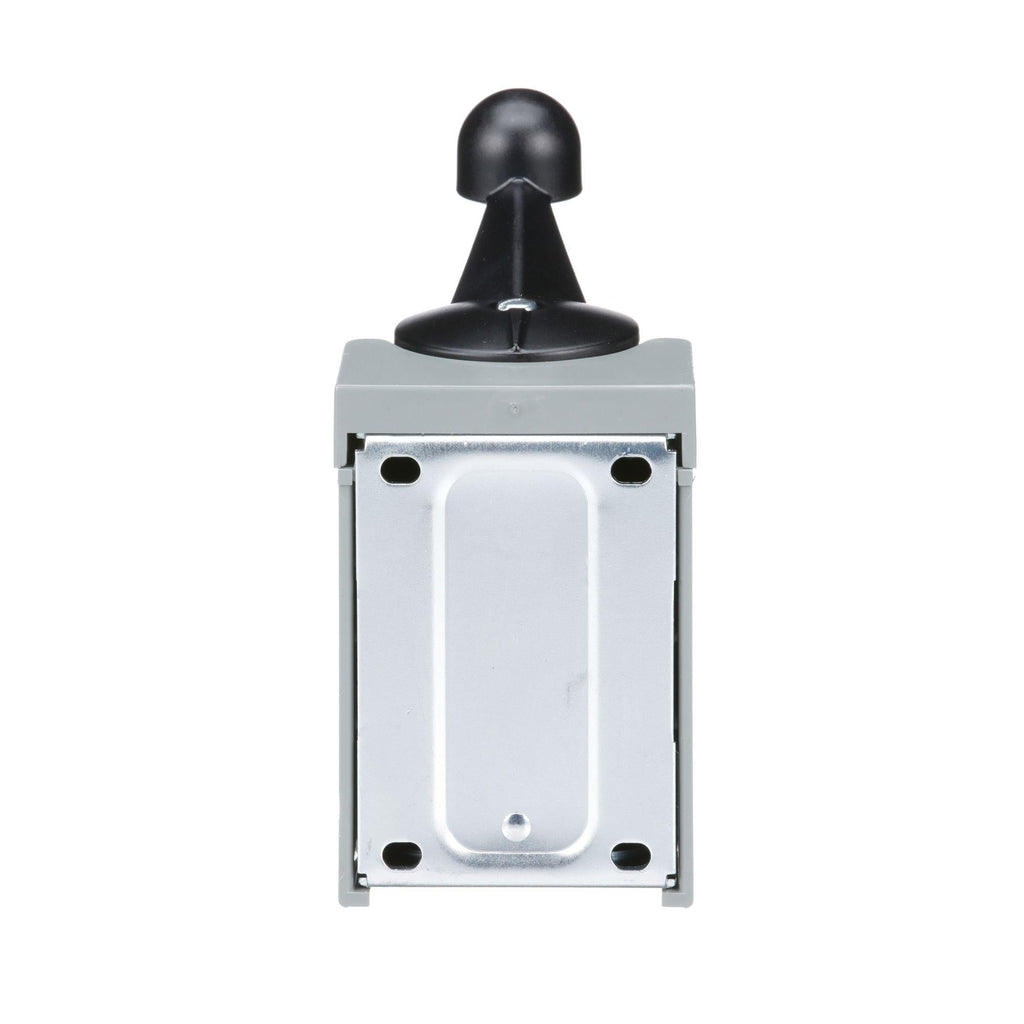

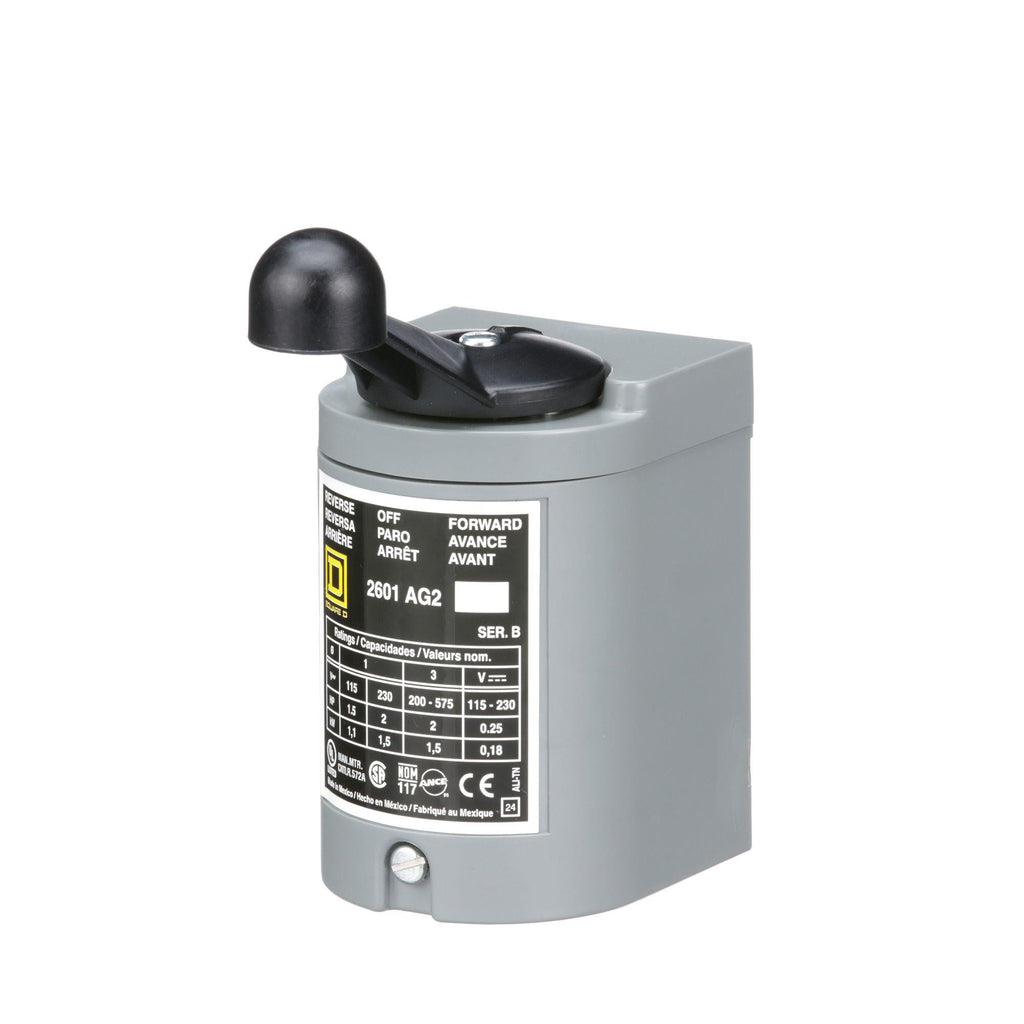

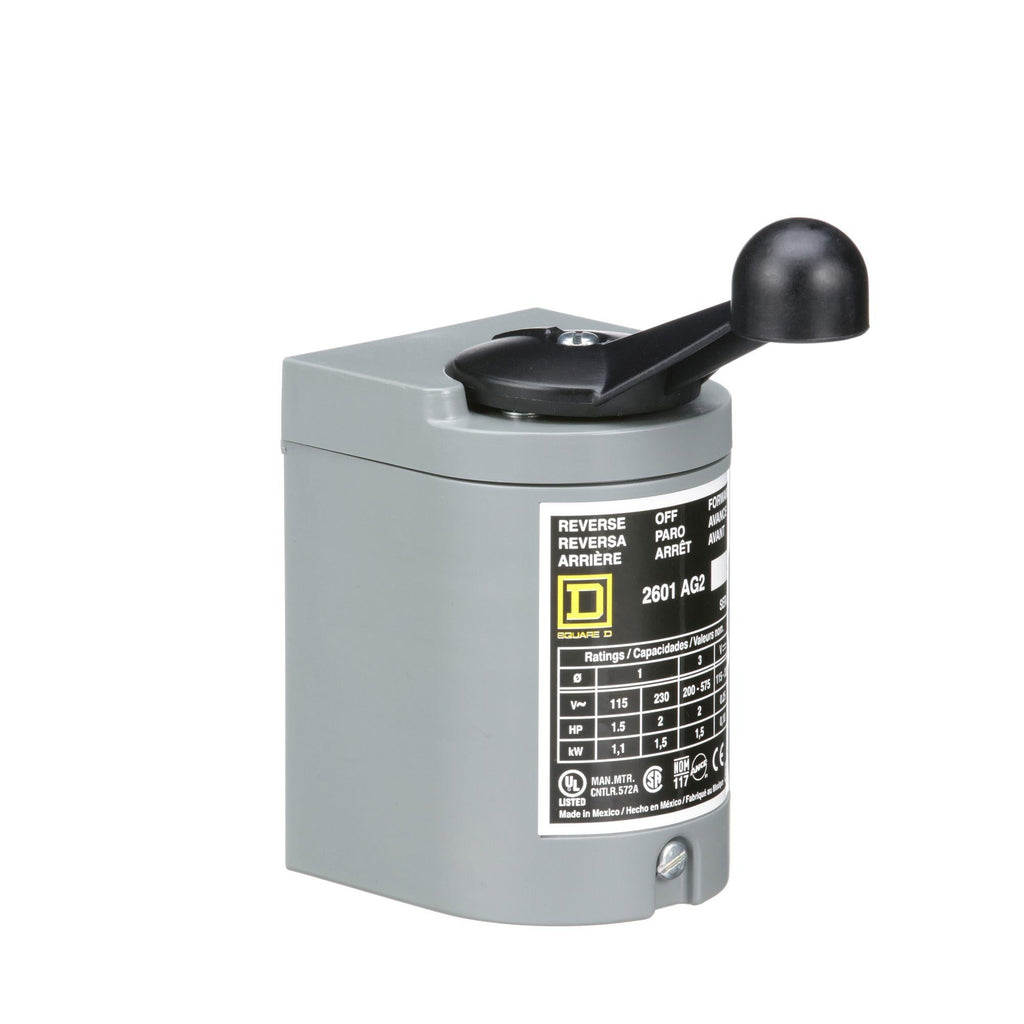

2601AG2 is a Square D 3 pole drum switch designed for motor control applications with a voltage rating of 600VAC and 250VDC, suitable for motors up to 2 HP.This drum switch features a flush mounting type and NEMA 1 indoor enclosure, providing reliable reversing control for single-phase and polyphase motors. It supports up to 2 HP at 230 VAC single phase and 2 HP at 575 VAC polyphase, with non-replaceable contacts and a robust design for industrial use.
- Manufacturer: Square D
- Part Number: 2601AG2
- Poles: 3
- Voltage Rating: 600VAC, 250VDC
- Horsepower: 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase
- Mounting Type: Flush mount
- Enclosure Rating: NEMA 1 (Indoor)
- Series: 2601A
- Application: Motor control, reversing switch
- Handle operated
- Contacts: Non-replaceable
- Certifications: NEMA 1 compliant
Specifications
- Part Number: 2601AG2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Control Stations
- Type : 2601 Series
Product Data
- UPC : 78590155541
- GTIN : 00785901555414
- Country of Origin : Mexico
- Dimensions : 5.38 in (136.65 mm) x 2.68 in (68.07 mm) x 4.61 in (117.09 mm) (Height x Width x Depth)
- Weight : 1.25 lb
- Certification : CSA Cetrified, UL Listed
