2601AF2 - Schneider Electric 3-Pole Reversing Drum Switch 600VAC 2HP NEMA 13 Flush Handle Operated

2601AF2

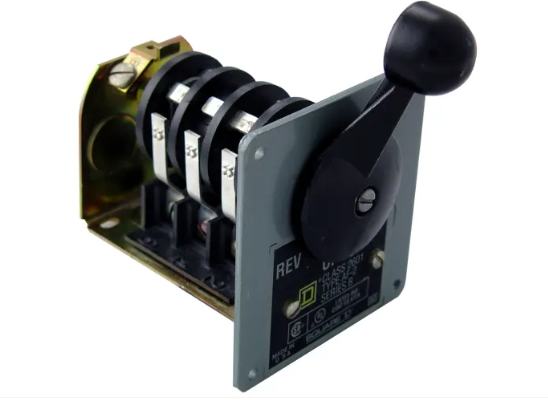

2601AF2 is a Schneider Electric reversing drum switch designed for reliable motor control with a 3-pole configuration and 600 VAC rating.2601AF2 features a handle-operated mechanism with a NEMA 13 flush enclosure, suitable for reversing applications up to 2 HP at 230 VAC single phase and 2 HP at 575 VAC polyphase. It supports on-off-on switching with a 3-position, 3-pole double-throw circuit, providing robust performance in industrial environments.

• 3 poles, 3-position (On-Off-On) switch function
• 600 VAC maximum voltage rating
• 2 HP at 230 VAC single phase motor rating
• 2 HP at 575 VAC polyphase motor rating
• Handle operated
• NEMA 13 flush mounting enclosure
• Reversing drum switch type
• Compatible with single and polyphase motors
• Compact dimensions approximately 3.38" W x 5.58" D x 5.2" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2601AF2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Drum Switch

Product Data

• UPC : 078590101502
• GTIN : 00785901015024
• Country of Origin : Mexico
• Dimensions : 5.20 in (132.08 mm) x 3.38 in (85.85 mm) x 5.58 in (141.73 mm) (Height x Width x Depth)
• Weight : 1.561
