Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
25RDB4-DH

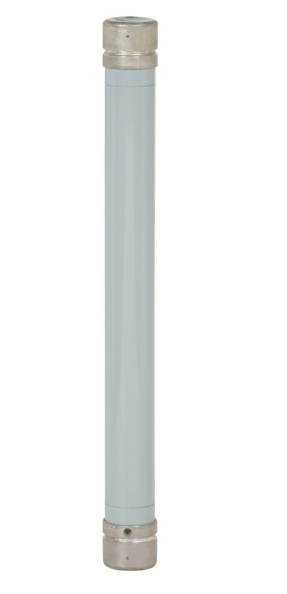

25RDB4-DH is an Eaton RDB-400 expulsion dropout fuse holder designed for use with Type RDB expulsion fuses in medium voltage applications. This holder provides reliable circuit protection and is engineered for outdoor installations requiring high interrupting capacity and easy maintenance. The 25RDB4-DH features a disconnect mounting design, making it suitable for applications where visible isolation is required. It is compatible with Type RDB expulsion fuses and supports a maximum voltage of 25.5 kV and a continuous current rating of 300A. The holder includes an ejector spring mechanism that ensures safe operation by forcing the arcing rod through the top of the fuse during fault conditions.
- Part Number: 25RDB4-DH
- Manufacturer: Eaton
- Type: RDB-400 Expulsion Dropout Fuse Holder
- Maximum Voltage: 25.5 kV
- Continuous Current Rating: 300A
- Mounting Type: Disconnect
- Compatible Fuse Type: Type RDB Expulsion Fuses
- Interrupting Rating: 300A
- Series/Frame: RDB-400
- Application: Outdoor, Medium Voltage
- Features: Ejector Spring, Refillable Design
- Standards: IEEE/ANSI C37.46
Specifications
- Part Number: 25RDB4-DH
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Fuse Holders
- Type : RBA4
Product Data
- UPC : 78667022832
- GTIN : 00786670228325
- Country of Origin : Dominican Republic
- Dimensions : 28 in x 4.75 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.9
- Certification : IEEE Std. C37.41
