Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

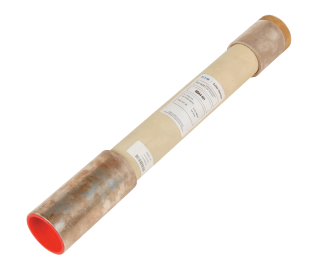

25RBA4-100E
25RBA4-100E is a medium voltage expulsion fuse from Eaton designed for reliable circuit protection at 23,000 volts and 100 amperes.
This Eaton 25RBA4-100E fuse features a single barrel design and is part of the RBA series of expulsion fuses. It uses boric acid as the interrupting medium to safely extinguish arcs during fault conditions. The fuse has an interrupting rating of 21kA at 23kV, suitable for medium voltage power distribution applications. It is constructed for indoor mounting and provides robust protection with a voltage rating of 23kV nominal and a maximum design voltage of 25.5kV.
- Amperage: 100A
- Voltage Rating: 23,000V nominal, 25,500V maximum design
- Fuse Type: Expulsion
- Series: RBA
- Interrupting Rating: 21kA at 23kV
- Poles: 1 Barrel
- Mounting: Indoor fuse holder compatible
- Weight: Approximately 2.7 lbs
- Class: Class E
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 25RBA4-100E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Type : RBA4
- Voltage : 23000
- Amperage : 100
- AIC rating : 21kA@23kV
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667023400
- GTIN : 00786670234005
- Country of Origin : Dominican Republic
- Dimensions : 14.8 in x 2.6 in x 2.6 in (Length/Depth x Height x Width)
- Weight : 2.7
- Certification : IEEE Std. C37.41
