Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

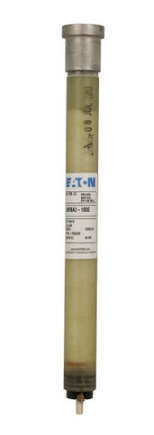

25RBA2-100E
25RBA2-100E is an RBA expulsion fuse refill unit designed for medium-voltage power distribution applications. This Type RBA2 fuse delivers reliable overcurrent protection in electrical systems rated up to 23 kV nominal voltage with a maximum design rating of 26 kV. The fuse is engineered to meet IEEE Std. C37.41 standards and provides standard-speed operation for circuit protection in utility and industrial environments. The Class E designation ensures compatibility with RBA and RDB fuseholder designs, though new applications should utilize current RBA fuse technology as BA mountings are no longer recommended for new installations.
- Amperage Rating: 100E
- Voltage Rating: 23 kV nominal, 26 kV maximum
- Fuse Type: RBA2 Expulsion Fuse Refill
- Class: Class E
- Speed: Standard Speed
- Certification: IEEE Std. C37.41
- Product Height: 1.5 inches
- Product Length: 10.5 inches
- Product Width: 1.5 inches
- Compatible Holders: RBA and RDB Fuseholders
Specifications
- Part Number: 25RBA2-100E
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : RBA2
- Voltage : 23000
- Amperage : 100
- AIC rating : 10.5kA@23kV
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667023080
- GTIN : 00786670230809
- Country of Origin : Dominican Republic
- Dimensions : 15.3 in x 2.5 in x 2.4 in (Length/Depth x Height x Width)
- Weight : 2.7
- Certification : IEEE Std. C37.41
