Product Info
- Manufacturer:Thomas & Betts
Description
2565

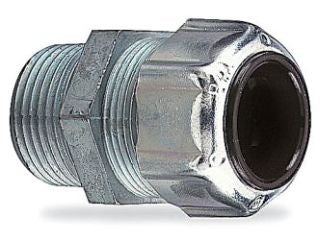

2565 is a Thomas & Betts Ranger Liquidtight Strain Relief Cord Connector designed for cable openings from 1-3/8 to 1-5/8 inches.This connector features a malleable iron body with zinc plating for durability and a neoprene bushing to ensure a liquid-tight installation by applying pressure along the cable length.
- Type: Liquidtight Strain Relief Cord Connector
- Size: 1-1/2 Inch Straight
- Cable Opening Range: 1-3/8 to 1-5/8 inches
- Material: Malleable Iron body, Zinc Plated finish
- Bushing: Neoprene for liquid-tight seal
- Thread Length: 13/16 inch
- Throat Diameter: 1-29/64 inch
- Cable Types: S/so/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
- Temperature Rating: 105°C
- Certifications: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
- Application: Suitable for hazardous locations where general purpose equipment is permitted by NEC 501-4(B)
Specifications
- Part Number: 2565
- Manufacturer : Thomas & Betts
- Brand : Thomas & Betts
- Category : Conduit & Fittings
- Family : Ranger Ranger®
Product Data
- UPC : 078621002565
- Dimensions : 2-5/8 in Dia x 2-13/16 in L
- Weight : 5.19
