Product Info
- Manufacturer:Thomas & Betts
Description
2547

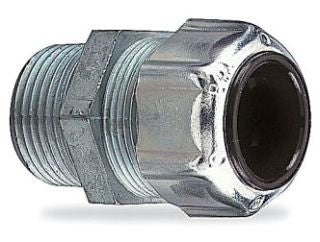

2547 is a 1 inch straight liquidtight strain relief cord connector by Thomas & Betts designed for secure cable connections in harsh environments.2547 features a durable zinc die-cast body with a neoprene bushing for full-length cable protection and a mechanical grip that ensures liquidtight strain relief. It accommodates cable diameters from 0.875 to 0.985 inches and is suitable for dry, wet, and hazardous locations. The connector is UL and CSA approved and operates reliably up to 105 degrees Celsius.
- Type: Straight cord connector
- Material: Zinc die cast body with neoprene bushing
- Cord range: 0.875 to 0.985 inches diameter
- Thread size: 1 inch NPT
- Dimensions: 1-11/16 inch diameter x 1-7/8 inch length
- Application: Liquidtight strain relief for flexible cords
- Environmental rating: Suitable for dry, wet, and hazardous locations
- Operating temperature: Up to 105°C
- Certifications: UL and CSA listed
- Series: 2500 Series
Specifications
- Part Number: 2547
- Manufacturer : Thomas & Betts
- Brand : Thomas & Betts
- Category : Conduit & Fittings
- Family : Ranger Ranger®
Product Data
- UPC : 786210025476
- GTIN : 00786210025476
- Dimensions : 1-11/16 in Dia x 1-7/8 in L
- Weight : 1 lb
