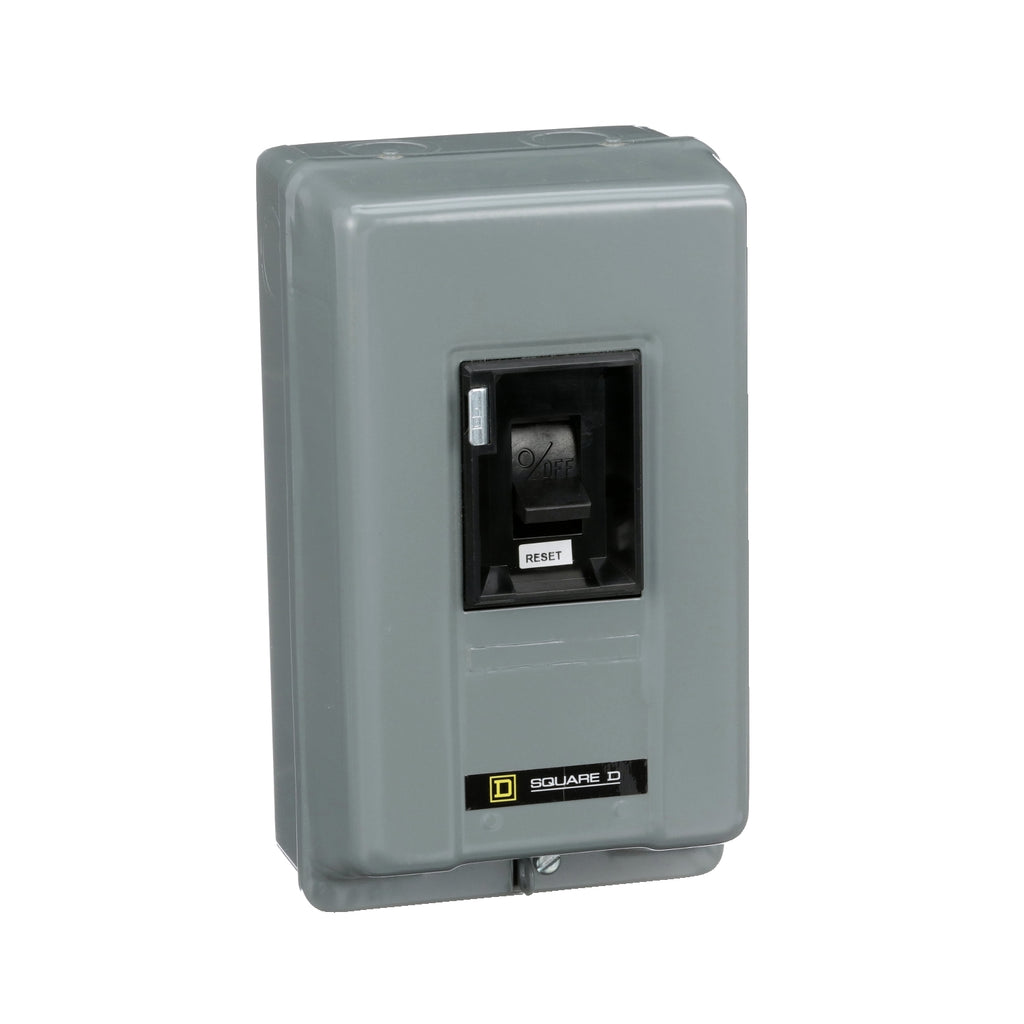

2510TCG1 - Square D 2 Pole 600V NEMA M1 Manual Motor Starter 3 HP 230 VAC Single Phase

2510TCG1

2510TCG1 is a Square D manual motor starter designed for single-phase motor control applications with a 2-pole configuration and NEMA M1 frame.This starter supports up to 3 HP at 230 VAC and 2 HP at 115 VAC, rated for 600 VAC operation. It features a melting alloy thermal trip unit for reliable overload protection, is enclosed in a NEMA 1 rated housing, and is suitable for integral horsepower motors without low voltage protection.

Key Specifications
• Manufacturer: Square D
• Part Number: 2510TCG1
• Poles: 2
• Voltage Rating: 600 VAC
• Horsepower Rating: 3 HP at 230 VAC, 2 HP at 115 VAC
• Phase: Single Phase
• Frame/Series: NEMA M1
• Trip Unit: Melting Alloy Thermal
• Mounting Type: Enclosed Toggle
• Enclosure Rating: NEMA 1
• Interrupt Rating: Not specified
• Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 2510TCG1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : T
• Voltage : 600
• Amperage : 9
• Phase : 1
• Poles : 2



Product Data

• UPC : 785901795711
• GTIN : 00785901795711
• Country of Origin : Mexico
• Dimensions : 8.63 in (219.20 mm) x 5 in (127 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.74
