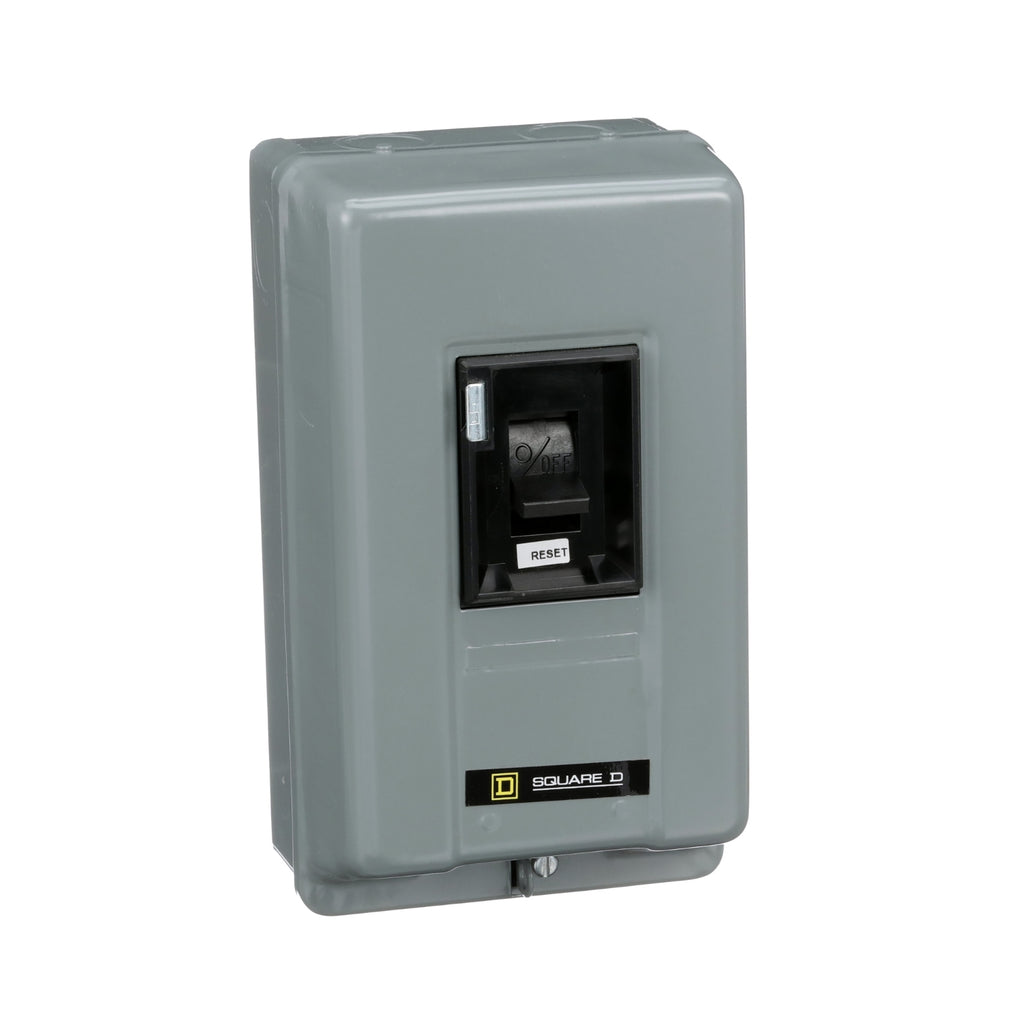

2510TBG2 - Square D Class 2510 Manual Motor Starter, 3 Pole, 3 Phase, 600V, 9A, NEMA 1, Toggle, No Indicator, Heater Packs Sold Separately

2510TBG2

2510TBG2 is a Square D Class 2510 manual motor starter designed for reliable three-phase motor control.

This integral horsepower manual starter features a toggle switch operator, three poles, and is rated for 600V AC systems. It is suitable for motors up to 3 HP at 200-230V AC and 5 HP at 380-575V AC. The starter is housed in a NEMA 1 enclosure and requires separate heater packs for overload protection. No indicator is included. This unit is ideal for industrial applications requiring manual control and robust protection.

Key Specifications

• Manufacturer: Square D
• Part Number: 2510TBG2
• Series/Frame: Class 2510, NEMA Size M-0
• Amperage: 9A (with appropriate heater pack)
• Voltage: 600V AC
• Poles: 3
• Phase: 3
• Mounting Type: Panel mount, NEMA 1 enclosure
• Control Type: Toggle switch
• Interrupt Rating: Not specified in available data
• Trip Unit: Thermal overload, heater packs sold separately
• Certifications: Not specified in available data
• Indicator: No indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510TBG2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : T
• Voltage : 600
• Amperage : 9
• Phase : 3
• Poles : 3
• Aux Contacts : Without
• Nema Starter Size : M-0

Product Data

• UPC : 785901795612
• GTIN : 00785901795612
• Country of Origin : Mexico
• Dimensions : 8.63 in (219.20 mm) x 5 in (127 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.239
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
