2510MCW3 - Square D 27A 600VAC 3-Pole Manual Motor Starter NEMA M1 10HP at 380/575VAC

2510MCW3

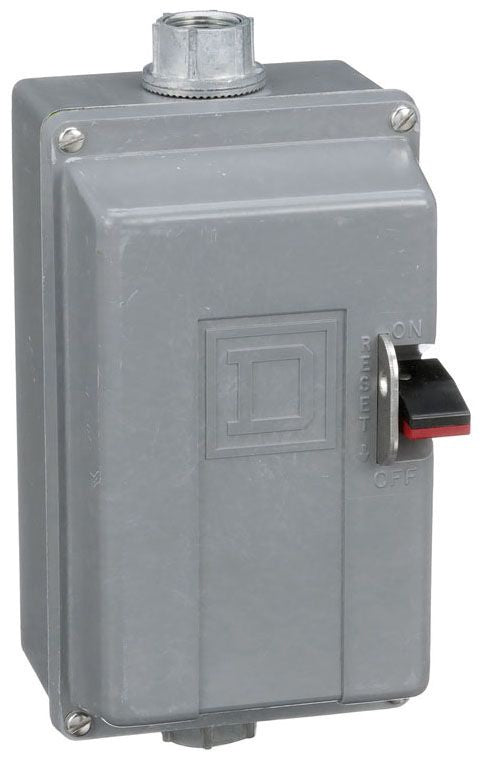

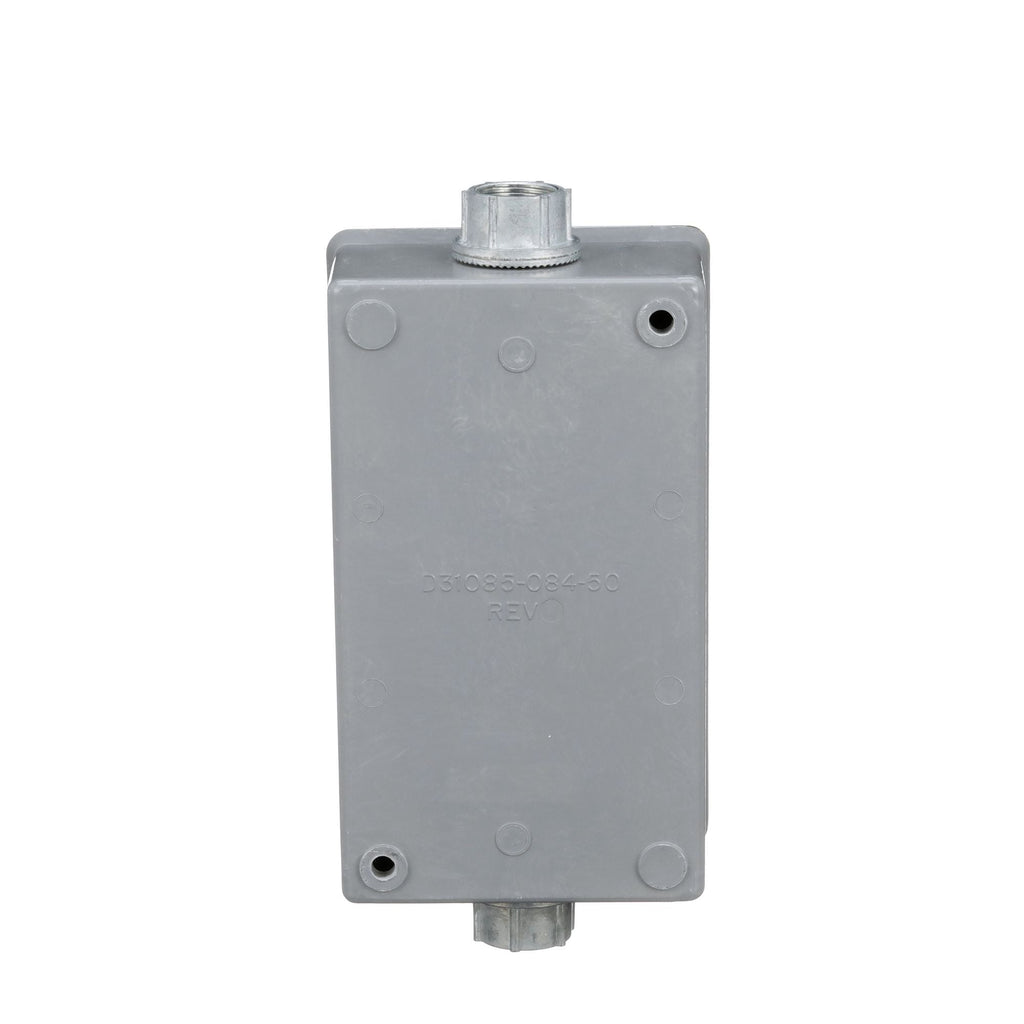

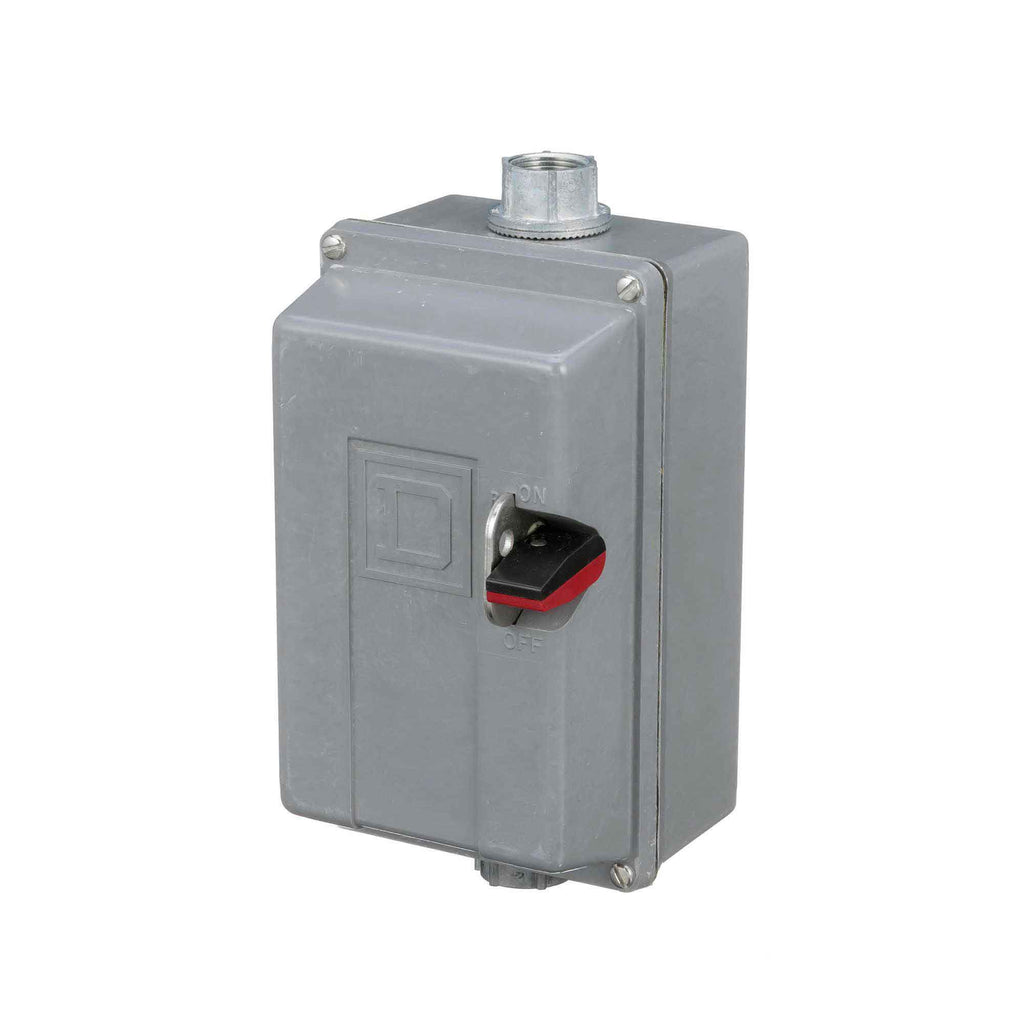

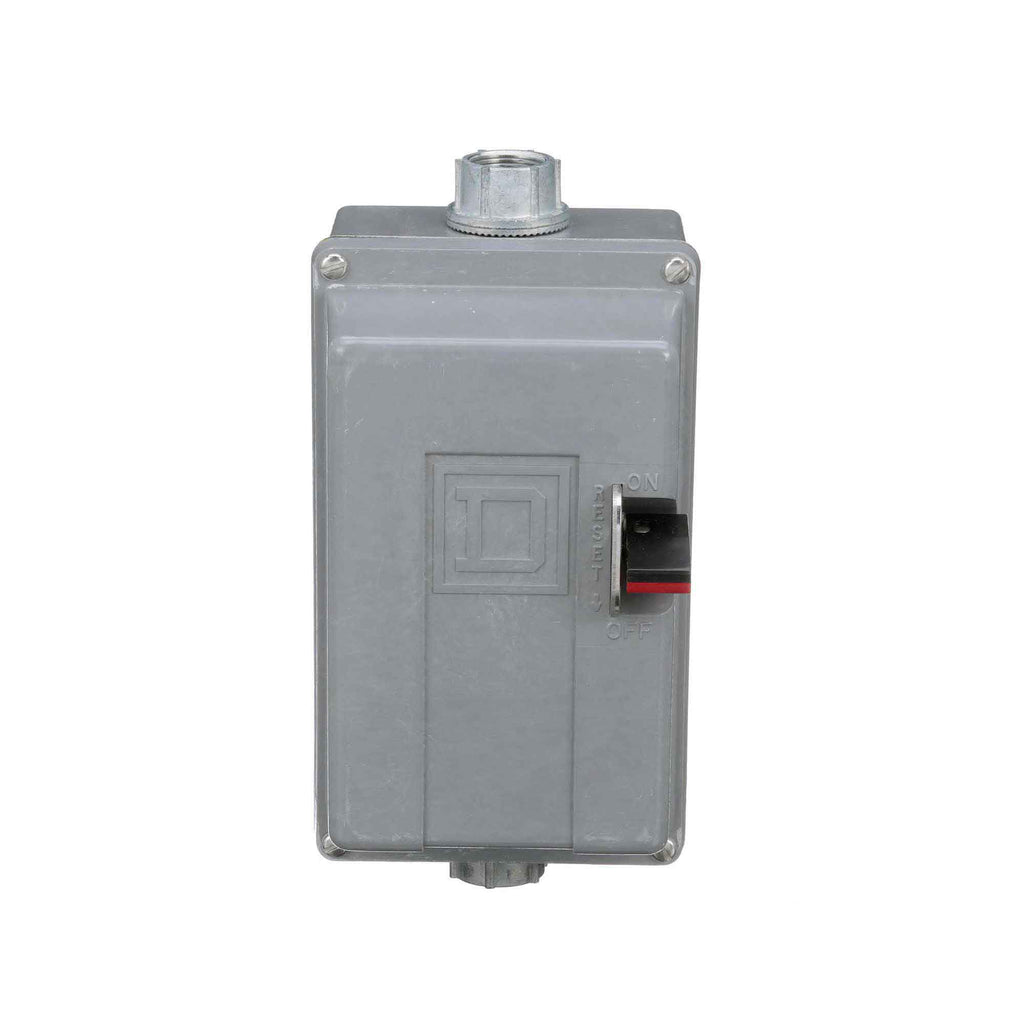

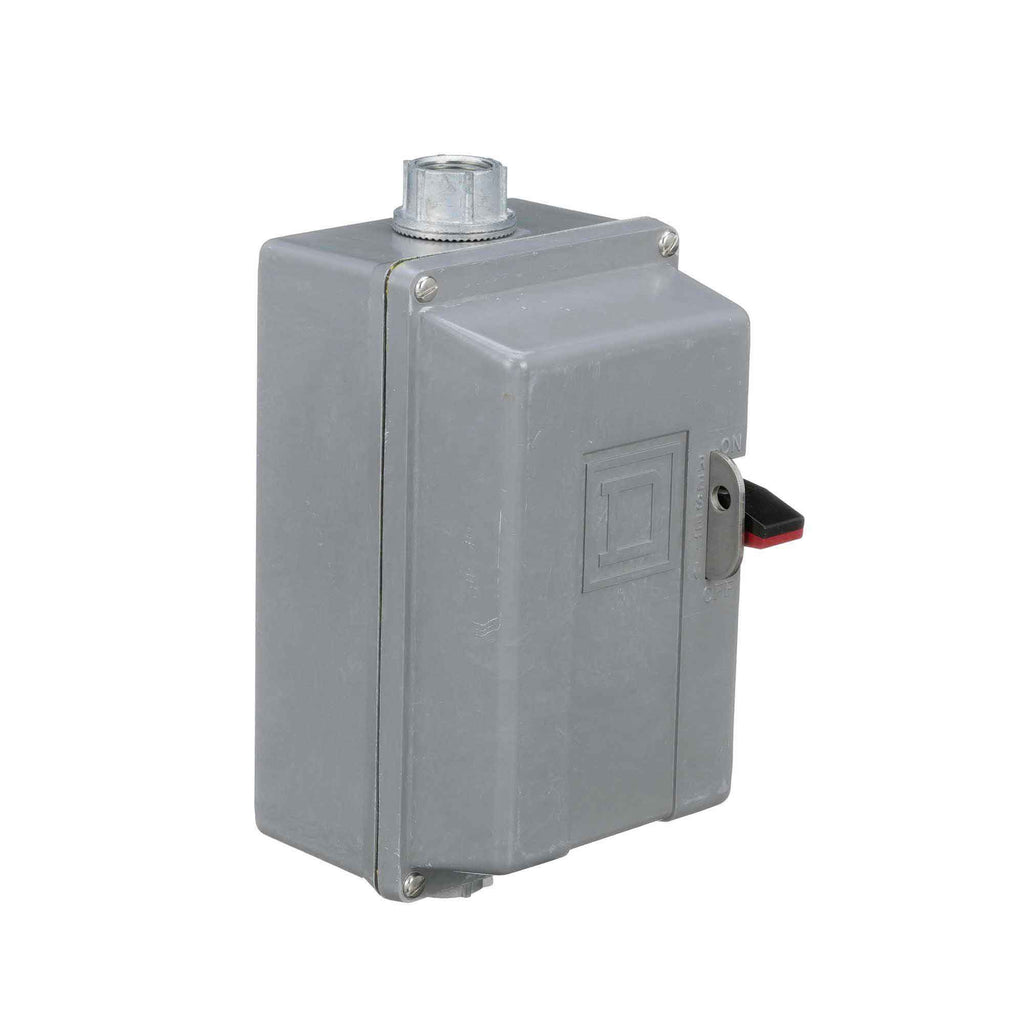

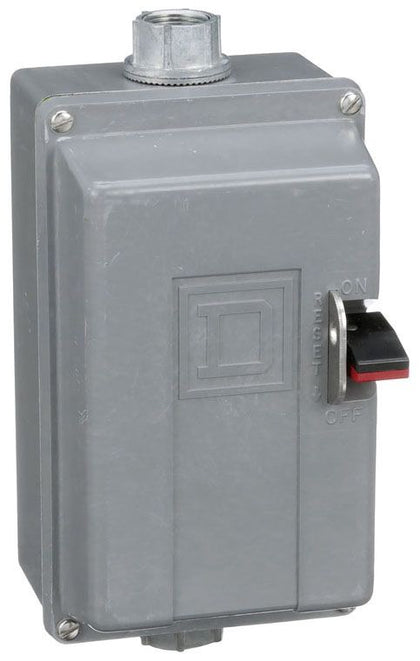

2510MCW3 is a Square D manual motor starter designed for integral horsepower motor control with a NEMA M1 enclosure.

This three-pole starter is rated for 27 amps and operates at up to 600 volts AC. It supports motors up to 10 horsepower at 380/575 VAC three-phase and provides reliable melting alloy thermal overload protection. The device features a toggle handle for manual On/Off control and is housed in a NEMA 4/4X glass polyester enclosure that is watertight, dusttight, and corrosion resistant. This starter is UL listed and CSA certified, suitable for surface mounting with conduit entries on top and bottom.

Key Specifications
• Amperage: 27 A
• Voltage Rating: 600 VAC
• Poles: 3
• Horsepower Rating: 10 HP at 380/575 VAC, 3-phase
• Enclosure Type: NEMA M1, NEMA 4/4X glass polyester
• Thermal Overload Protection: Melting alloy thermal units (ordered separately)
• Mounting: Surface mount
• Certifications: UL Listed, CSA Certified
• Toggle handle with padlock capability

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510MCW3
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : 2510
• Voltage : 600 /250 DC
• Aux Contacts : Without
• Nema Starter Size : M-1

Product Data

• UPC : 785901821021
• GTIN : 785901821021
• Country of Origin : Mexico
• Dimensions : 12.13 in (308.10 mm) x 6.5 in (165.1 mm) x 6.41 in (162.81 mm) (Height x Width x Depth)
• Weight : 8.111
• Certification : CSA LR60905, E42243 CCN NLRV, UL Listed
