2510MBR2 - Schneider Electric Manual Starter 18A 600VAC 3 Pole NEMA M0 NEMA 7/9 Enclosure 5HP at 380/575VAC

2510MBR2

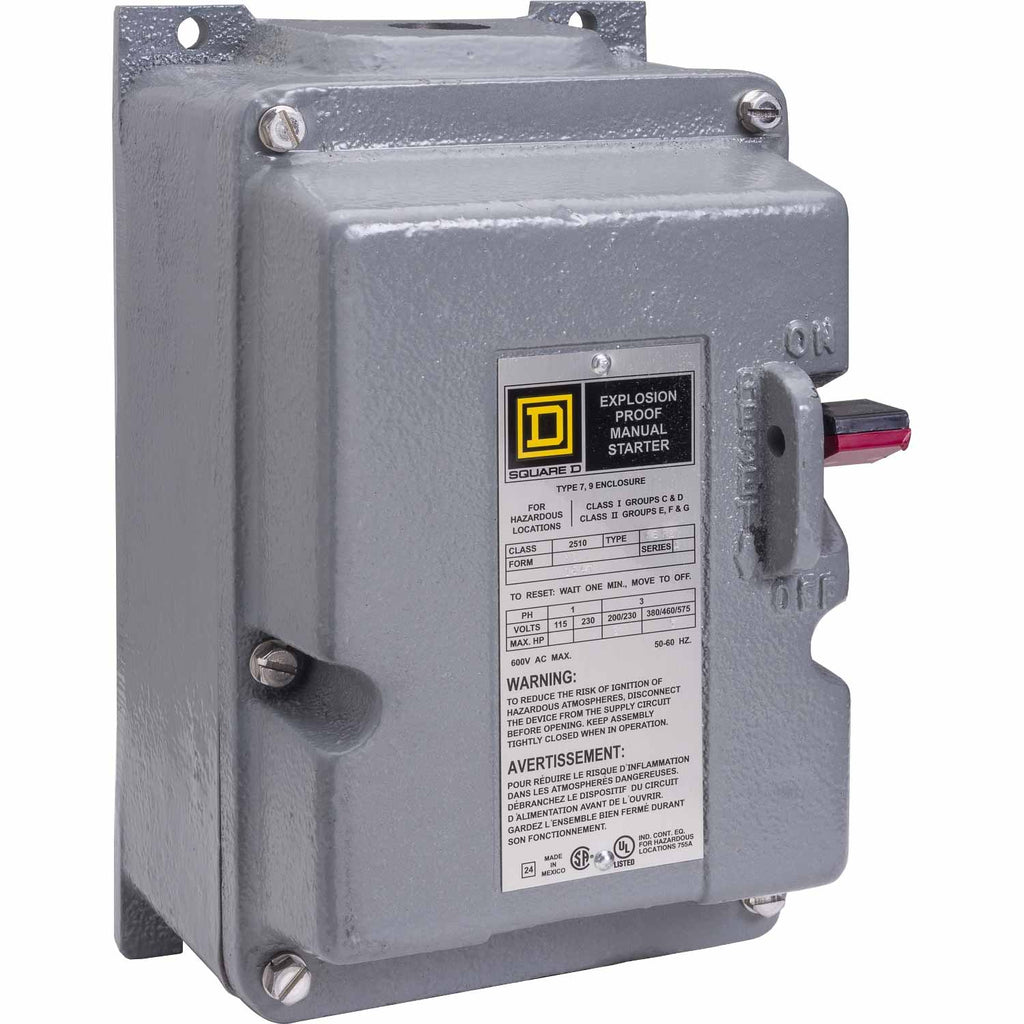

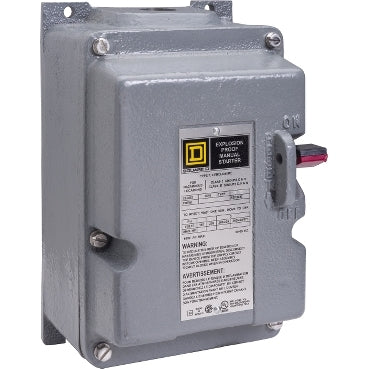

2510MBR2 is a Schneider Electric manual starter designed for reliable motor control and overload protection.This integral horsepower manual starter features a 3-pole configuration rated for 18 amps and 600 VAC operational voltage. It supports motors up to 3 HP at 200-230 VAC and 5 HP at 380-575 VAC three-phase. The device includes three melting alloy thermal units for overload sensing, a push-button control type, and a cast iron NEMA 7/9 enclosure suitable for hazardous locations. It is a non-reversing starter with pressure wire clamp connections and complies with UL and CSA certifications.

Key Specifications
• Amperage Rating: 18 A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Horsepower Rating: 3 HP at 200-230 VAC, 5 HP at 380-575 VAC
• Mounting Type: NEMA M0 Frame
• Interrupt Rating: Integral horsepower manual starter
• Trip Unit: Melting alloy thermal units (3 required)
• Control Type: Push-button switch
• Enclosure: Cast iron NEMA 7/9 (hazardous location rated)
• Connection Type: Pressure wire clamp
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Non-Reversing




Specifications

• Part Number: 2510MBR2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Aux Contacts : Without
• Nema Starter Size : M-0



Product Data

• UPC : 785901800606
• GTIN : 00785901800606
• Country of Origin : Mexico

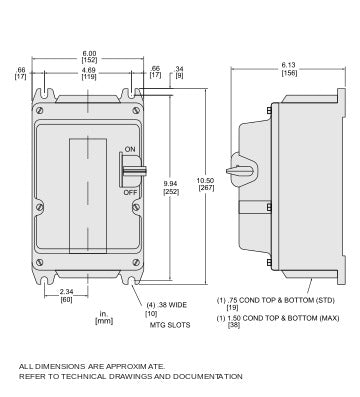

• Dimensions : 10.5 in (266.7 mm) x 6 in (152.4 mm) x 6.13 in (155.70 mm) (Height x Width x Depth)
• Weight : 32.13
• Certification : UL, CSA, NEMA
