2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KW1B

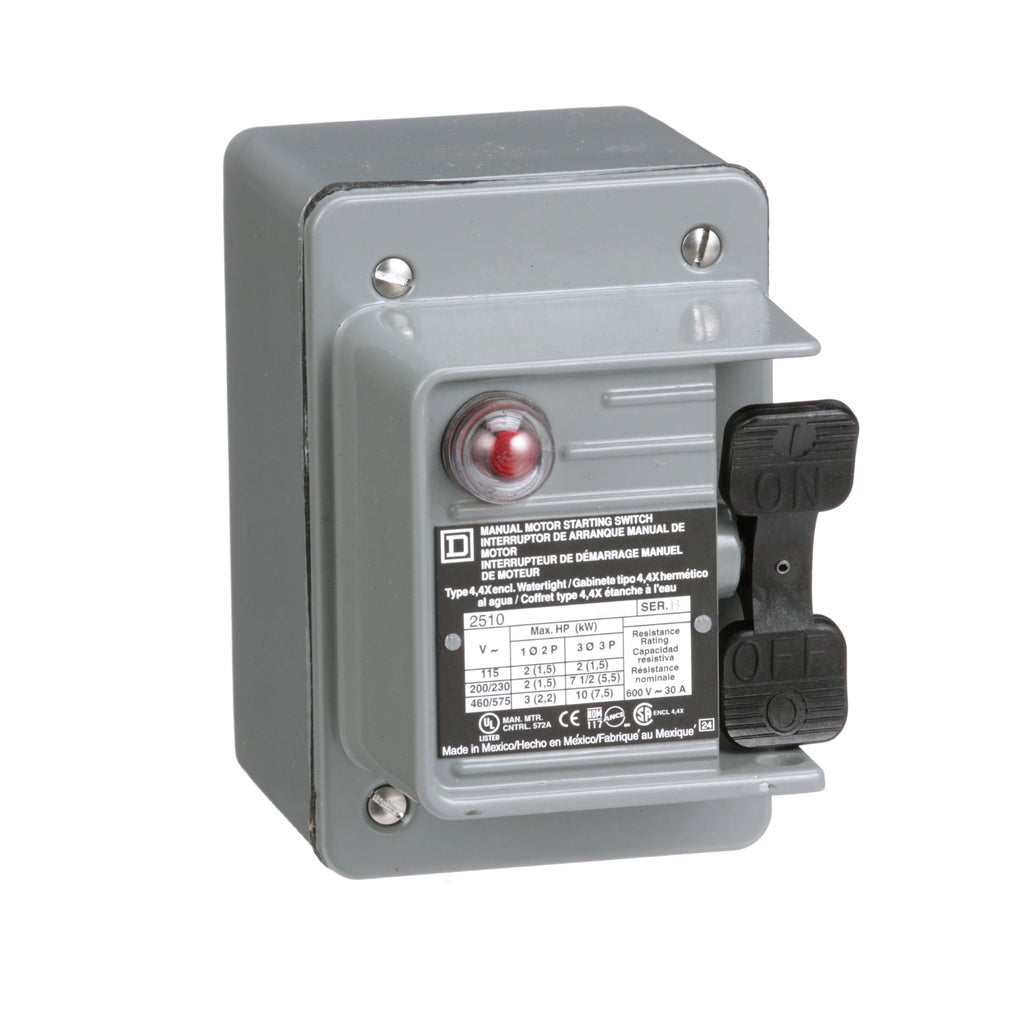

2510KW1B is a Square D manual motor switch designed for reliable on/off control of small motors in indoor and outdoor environments.This Type K manual switch features a 30 ampere current rating with a 2-pole configuration, suitable for single-phase motors. It supports motor horsepower ratings up to 3 HP at 575 VAC and 2 HP at 230 VAC. The switch is toggle operated and includes a red pilot light indicator for status signaling. It is housed in a NEMA 4 zinc alloy enclosure, providing protection against water and dust for both indoor and outdoor applications. The device includes a 0.75 inch NPT cable entry at the bottom for wiring convenience.
- Manufacturer: Square D
- Part Number: 2510KW1B
- Current Rating: 30 Amps
- Voltage Rating: 600 VAC / 230 VDC
- Poles: 2
- Horsepower Ratings: 3 HP at 575 VAC, 2 HP at 230 VAC, 2 HP at 115 VAC
- Control Type: Toggle operated
- Indicator: Red pilot light, 230 VAC
- Enclosure: NEMA 4 zinc alloy (water and dust tight)
- Cable Entry: 0.75 inch NPT (bottom)
- Phase: Single-phase
- Type: K manual switch
Specifications
- Part Number: 2510KW1B
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : K
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Enclosure : 4
Product Data
- UPC : 078590100606
- GTIN : 00785901006060
- Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.56 in (115.82 mm) (Height x Width x Depth)
- Weight : 3.48
