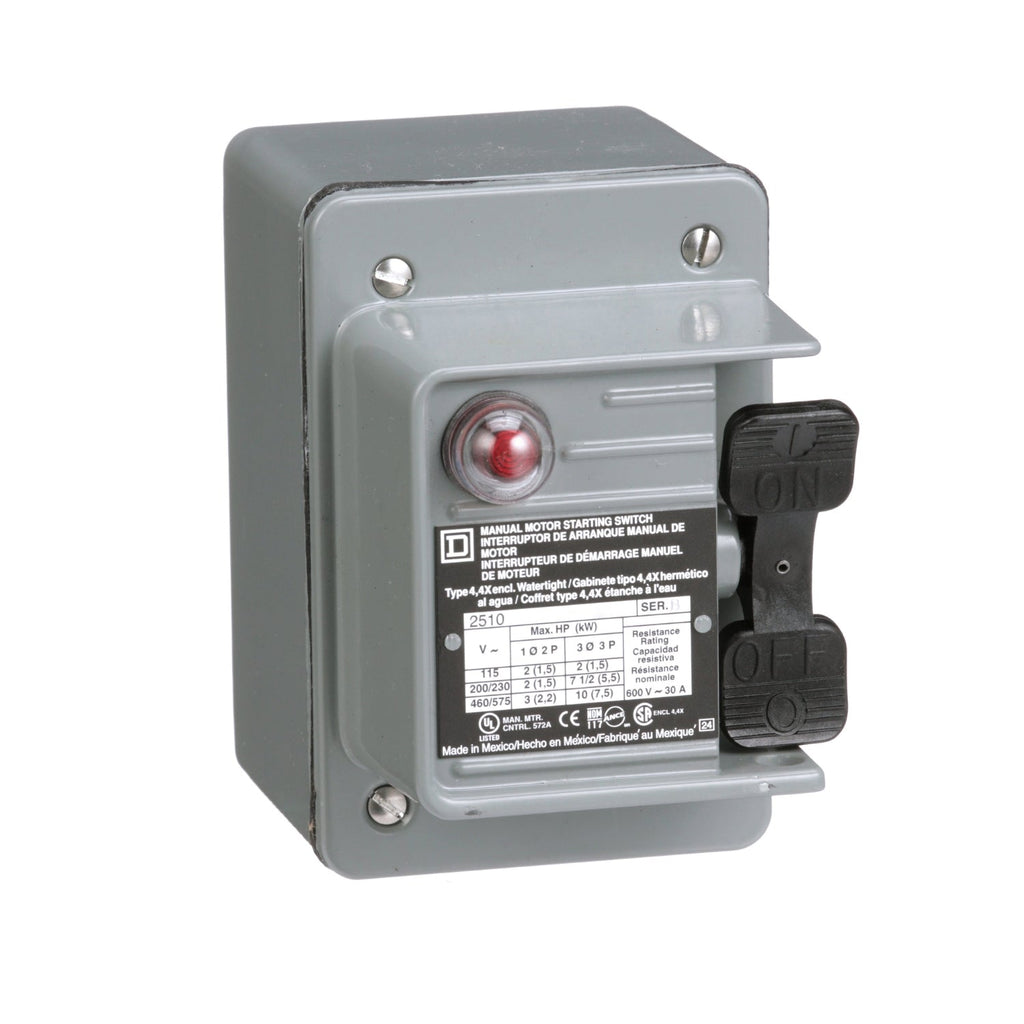

2510KW1A - Square D 30A 600VAC 2-Pole Manual Motor Switch NEMA 4 Non-Reversing Toggle Red Indicator

2510KW1A

2510KW1A is a Square D 2510 series manual motor switch designed for reliable manual control of single-phase motors. This 2-pole switch features a 30A current rating, 600VAC/230VDC voltage rating, and a NEMA 4 enclosure for dusttight and oiltight protection. The toggle actuator provides easy operation, and a red indicator offers clear status visibility. Suitable for surface mounting, this switch is ideal for applications where overload protection is provided separately. The 2510KW1A is built with screw clamp terminals for secure connections and is rated for 2 HP at 115/230VAC, 3 HP at 460/575VAC. The non-reversing action ensures safe operation, and the painted steel enclosure provides durability in demanding environments. This switch is UL, CSA, and CE certified for safety and compliance.

• Part Number: 2510KW1A
• Manufacturer: Square D
• Series/Frame: 2510
• Amperage Rating: 30A
• Voltage Rating: 600VAC, 230VDC
• Poles: 2
• Mounting Type: Surface
• Interrupt Rating: 10kA
• Actuator: Toggle
• Indicator: Red
• Enclosure: NEMA 4
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510KW1A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : K
• Voltage : 600
• Amperage : 30 Amp
• Phase : 1
• Poles : 2
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Enclosure : 4

Product Data

• UPC : 785901077749
• GTIN : 00785901077749
• Country of Origin : Mexico
• Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.56 in (115.82 mm) (Height x Width x Depth)
• Weight : 2.97
• Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
