2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KS2

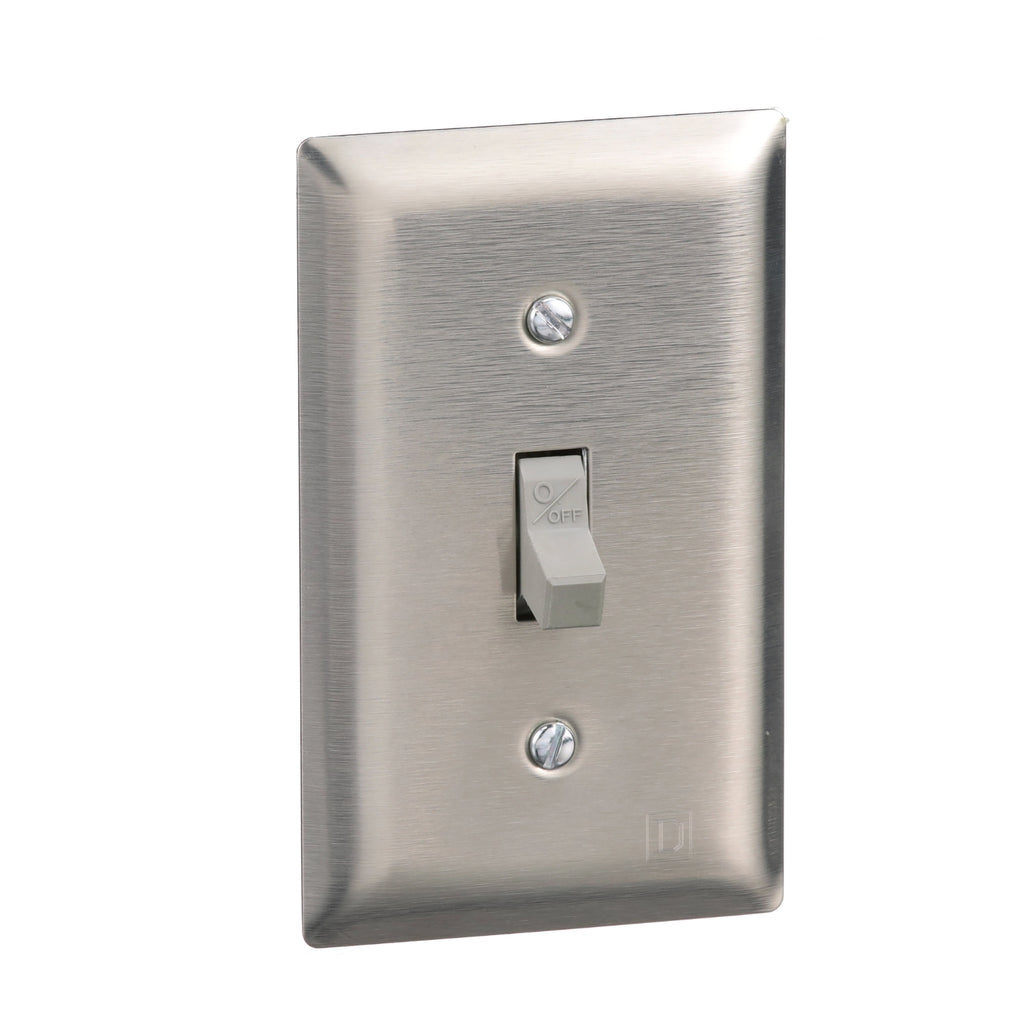

2510KS2 is a Square D 3-pole manual motor switch rated for 30 amps and 600 volts AC, designed for reliable motor control applications.This manual motor switch features a 2510 frame type with a stainless steel flush plate, toggle switch operator, and screw terminal connections. It supports motor horsepower ratings up to 10 hp at 480V AC three-phase and is UL and CSA certified. The switch is not NEMA rated for enclosure and does not include a pilot light or phase loss sensitivity.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 V AC, 230 V DC
- Number of Poles: 3
- Frame Type: 2510
- Operator Type: Toggle Switch
- Mounting: Stainless Steel Flush Plate
- Interrupt Rating: Not specified
- Horsepower Ratings: Up to 10 hp at 480V AC 3-phase
- Certifications: UL Listed, CSA Certified
- Terminal Connection: Screw Terminals
- Enclosure: No NEMA enclosure rating
Specifications
- Part Number: 2510KS2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : K
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
Product Data
- UPC : 785901554684
- GTIN : 00785901554684
- Country of Origin : Mexico
- Dimensions : 4.5 in (114.3 mm) x 2.75 in (69.85 mm) x 2.5 in (63.5 mm) (Height x Width x Depth)
- Weight : 0.51
- Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
