Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KO1

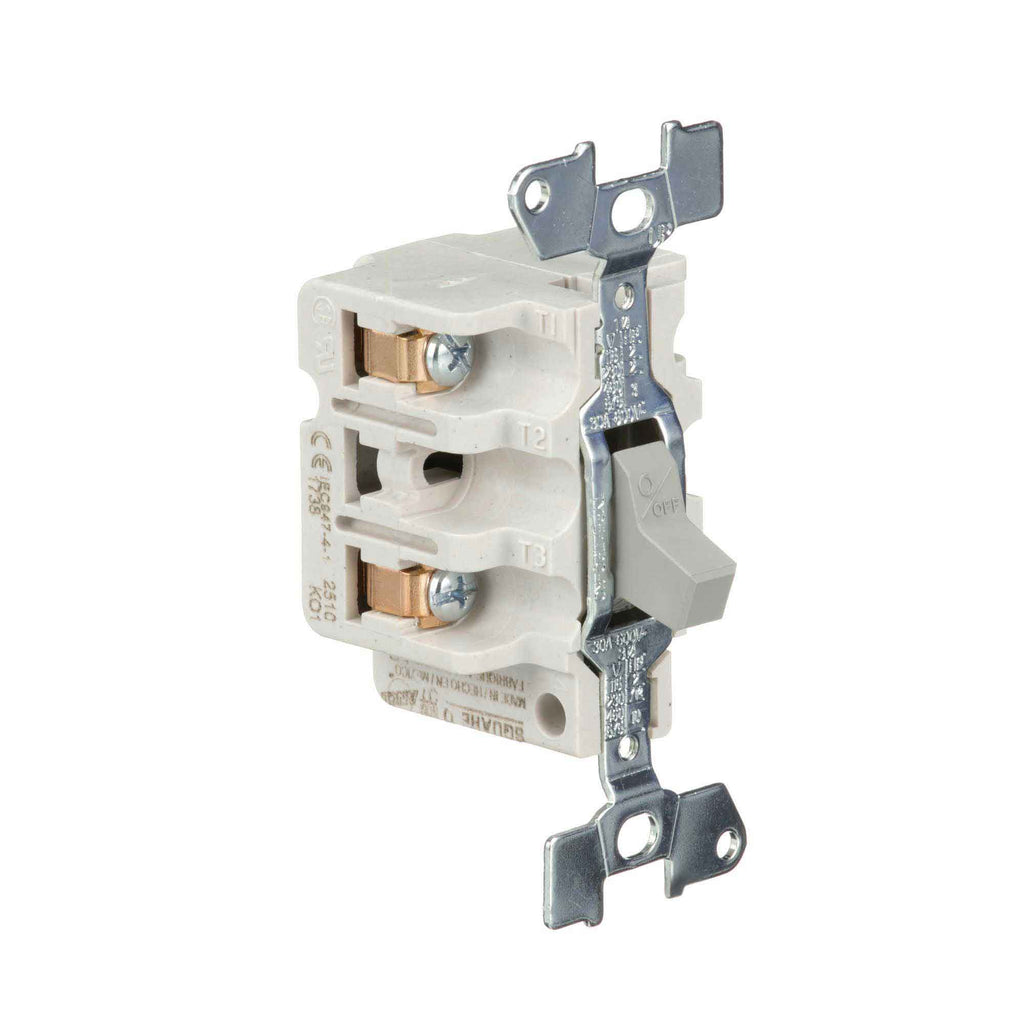

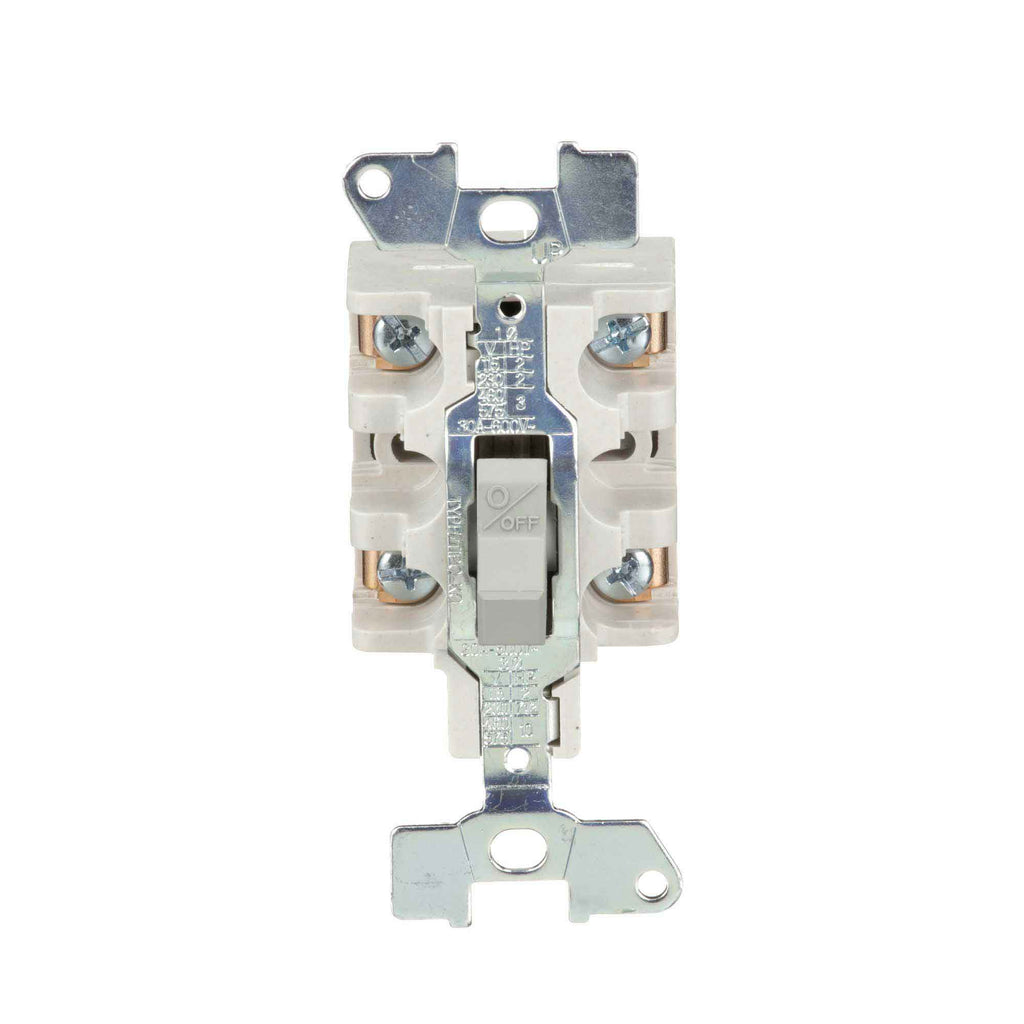

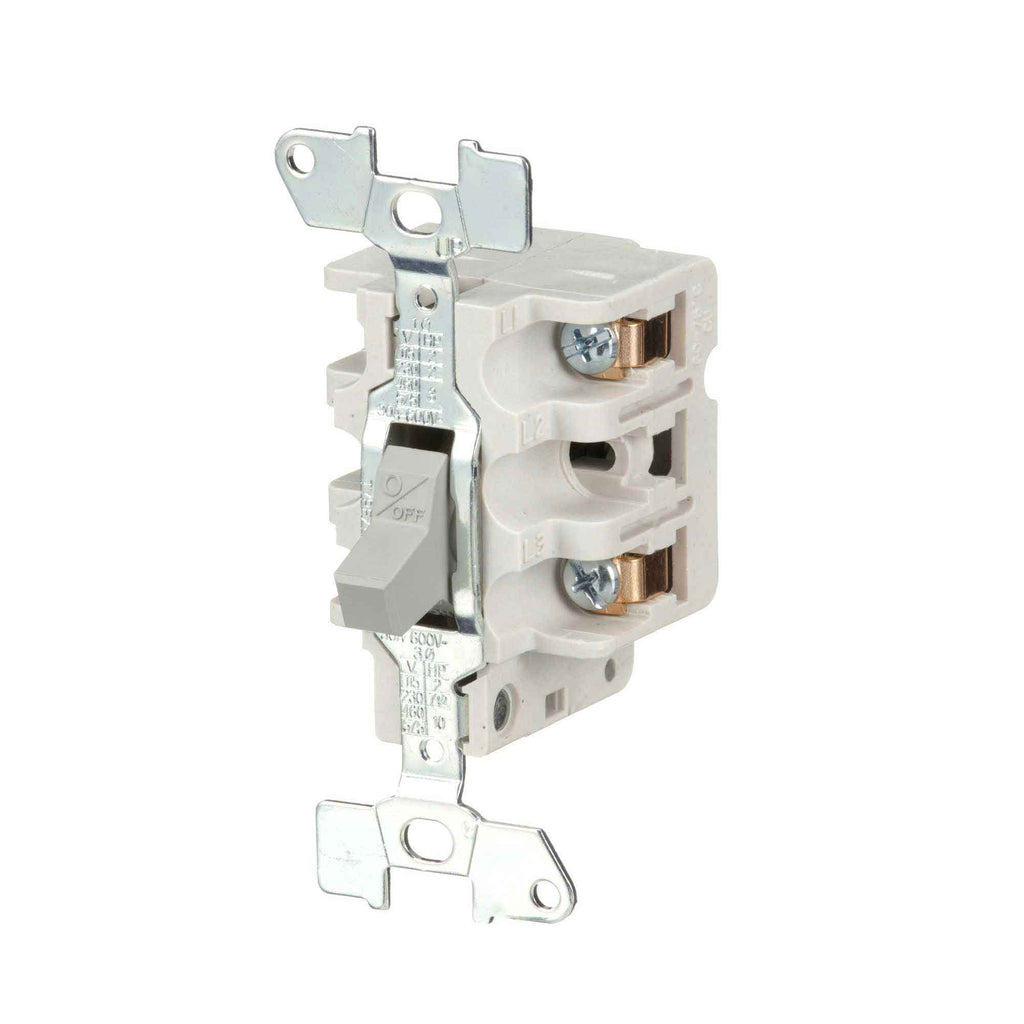

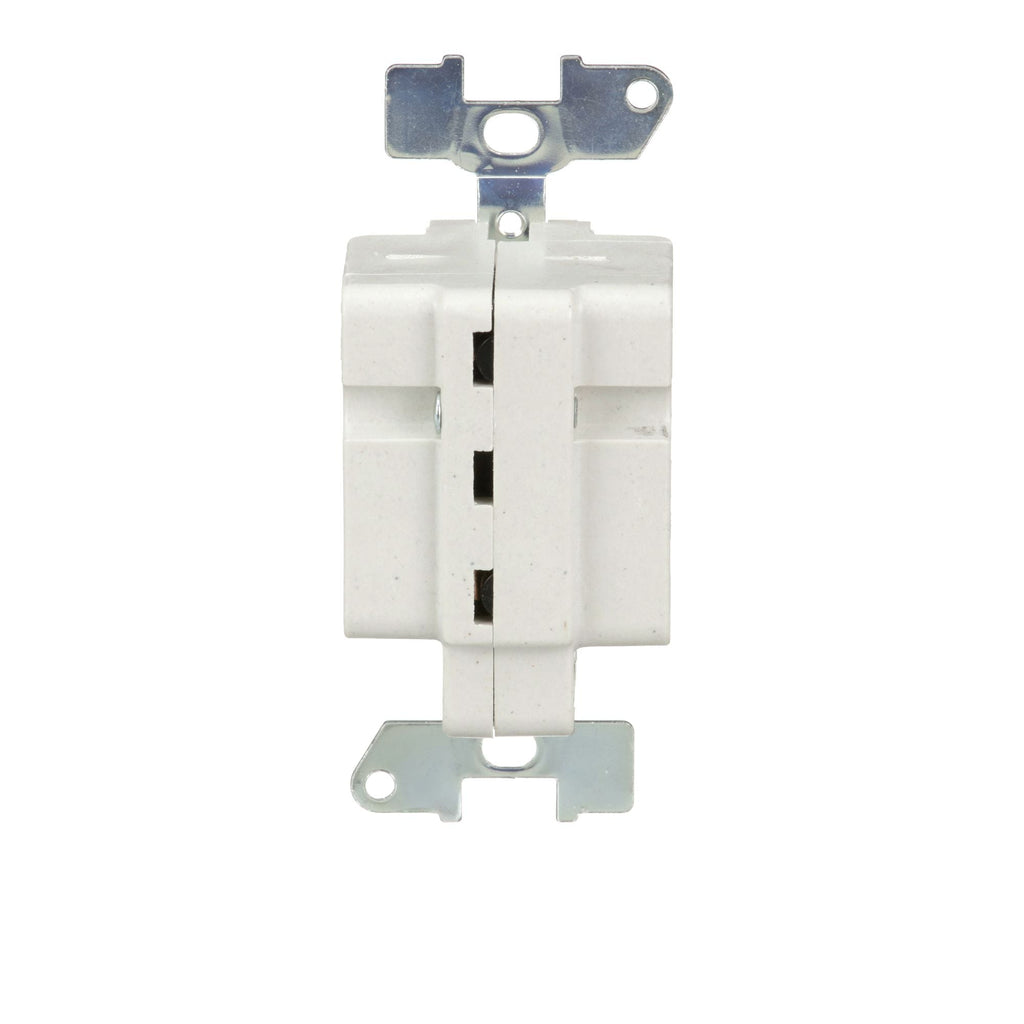

2510KO1 is a Square D 30 Amp, 2-pole motor starter manual switch designed for reliable motor control applications.2510KO1 manual switch from Square D features a 30 Amp rating, 600 Volt maximum operational voltage, and 2 poles. It is a non-reversing toggle-operated switch suitable for single-phase motor control with horsepower ratings up to 3 HP at 460-600 VAC. The switch supports various voltage and horsepower combinations including 230 VDC and 90 VDC ratings. It is part of the Class 2510 series and designed for surface mounting with screw clamp connections.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600 VAC, 230 VDC max
- Poles: 2
- Horsepower Ratings: 3 HP at 460-600 VAC, 2 HP at 115-230 VAC, 1 HP at 90 VDC
- Phase: Single-phase
- Type: Non-reversing manual switch
- Mounting: Surface mount
- Connection: Screw clamp
- Series: Class 2510
- Actuator: Toggle operated
Specifications
- Part Number: 2510KO1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : K
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Nema Rating : 0
Product Data
- UPC : 785901554554
- GTIN : 00785901554554
- Country of Origin : Mexico
- Dimensions : 4.13 in (104.90 mm) x 1.69 in (42.93 mm) x 2.34 in (59.44 mm) (Height x Width x Depth)
- Weight : 0.35
- Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV2
