Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KG2C

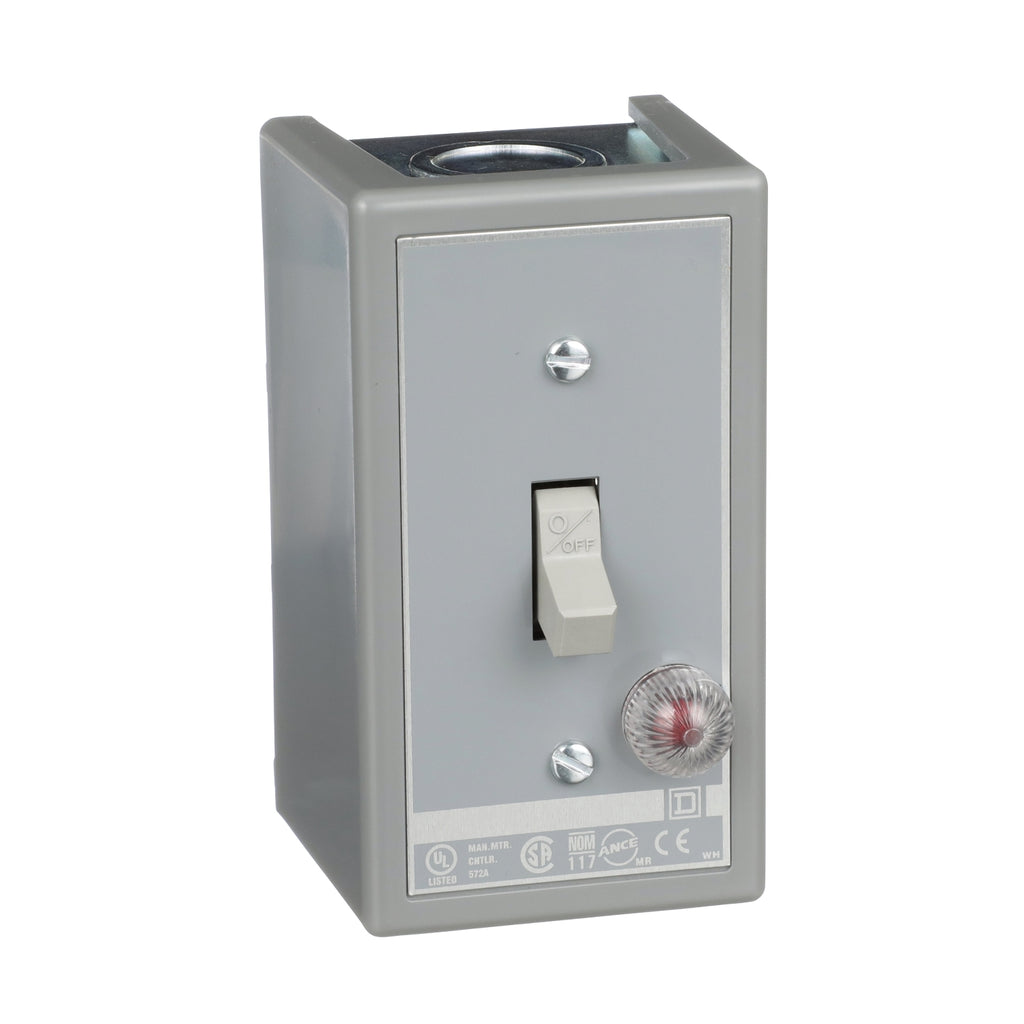

2510KG2C is a Square D manual motor switch designed for reliable ON/OFF control of single or three-phase AC motors.This 3-pole, 30 amp switch operates at up to 600 VAC and 230 VDC, featuring a toggle operator and Type K non-reversing design. It supports motor loads up to 10 HP at 460-600 VAC and includes screw clamp connections for secure wiring. The switch is part of the 2510K series and is suitable for manual reset applications.
- Amperage: 30 A
- Voltage Rating: 600 VAC / 230 VDC
- Poles: 3
- Operator Type: Toggle
- Series/Frame: 2510K
- Mounting Type: Panel Mount
- Motor HP Ratings: 2 HP at 115 VAC, 7.5 HP at 230 VAC, 10 HP at 460/600 VAC
- Non-Reversing Type K
- Connection Type: Screw Clamp
- Phase: 3-Phase
- Manual Reset
- Certifications: UL Listed
Specifications
- Part Number: 2510KG2C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Nema Rating : 0
Product Data
- UPC : 785901554523
- GTIN : 00785901554523
- Country of Origin : Mexico
- Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
- Weight : 0.88 lb
- Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
