Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KG2B

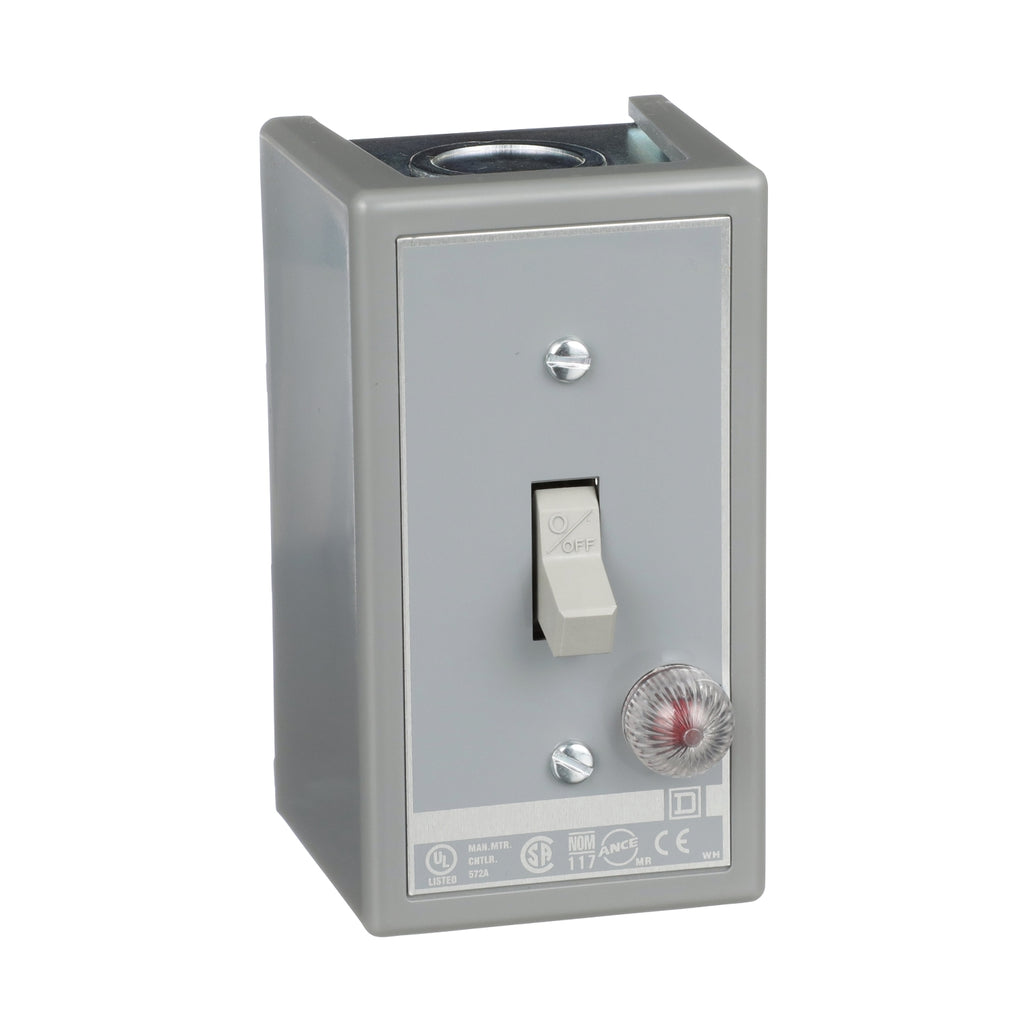

2510KG2B is a Square D 30 Amp manual motor switch designed for controlling 3-phase AC motors with a 600VAC and 230VDC rating.This 3-pole switch features a toggle actuator, screw clamp connections, and a 2510 series frame. It supports motor horsepower ratings of 2 HP at 115VAC, 7.5 HP at 230VAC, and 10 HP at 460/575 VAC. The switch is housed in a NEMA 1 enclosure suitable for general-purpose environments and includes 0.5 and 0.75 inch knockouts for flexible wiring.
- Amperage: 30 A
- Voltage: 600 VAC / 230 VDC
- Poles: 3
- Frame/Series: 2510
- Mounting Type: Panel mount with knockouts
- Actuator: Toggle
- Connection Type: Screw clamp
- Horsepower Ratings: 2 HP at 115 VAC, 7.5 HP at 230 VAC, 10 HP at 460/575 VAC
- Enclosure: NEMA 1 (general purpose)
- Non-reversing switch
Specifications
- Part Number: 2510KG2B
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : K
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
Product Data
- UPC : 785901554516
- GTIN : 00785902000000
- Country of Origin : Mexico
- Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
- Weight : 0.88
