2510KG1B - Square D 30A 600VAC 2 Pole Manual Motor Switch NEMA 1 Enclosure 3HP

2510KG1B

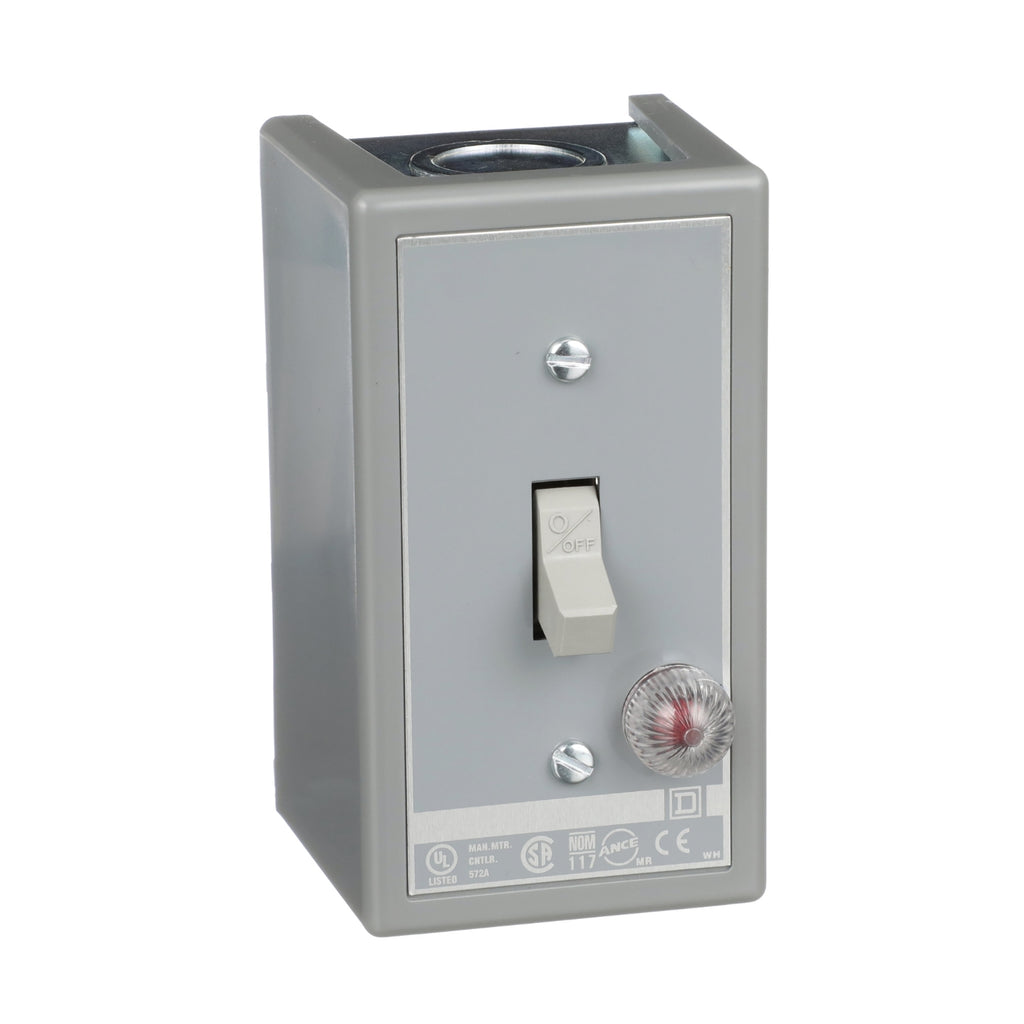

2510KG1B is a Square D manual motor switch designed for reliable motor control applications.This 2-pole manual switch is rated for 30 amps and supports a maximum operational voltage of 600 VAC and 230 VDC. It can handle motor horsepower ratings of 2 HP at 115 VAC and 230 VAC, and 3 HP at 460 VAC and 600 VAC. The switch features screw clamp terminals for electrical connections and comes in a NEMA 1 enclosure suitable for indoor use. It is UL listed and CSA certified, ensuring compliance with safety standards.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC / 230 VDC
• Poles: 2
• Motor Horsepower: 2 HP at 115/230 VAC, 3 HP at 460/600 VAC
• Mounting Type: Manual switch, toggle operated
• Enclosure: NEMA 1
• Electrical Connection: Screw clamp terminals
• Certifications: UL Listed, CSA Certified
• Series/Frame: 2510 K Series
• Non-reversing motor starter type
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 2510KG1B
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : K
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2



Product Data

• UPC : 785901554493
• GTIN : 00785901554493
• Country of Origin : Mexico
• Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
• Weight : 0.863
• Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
