Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510KF1

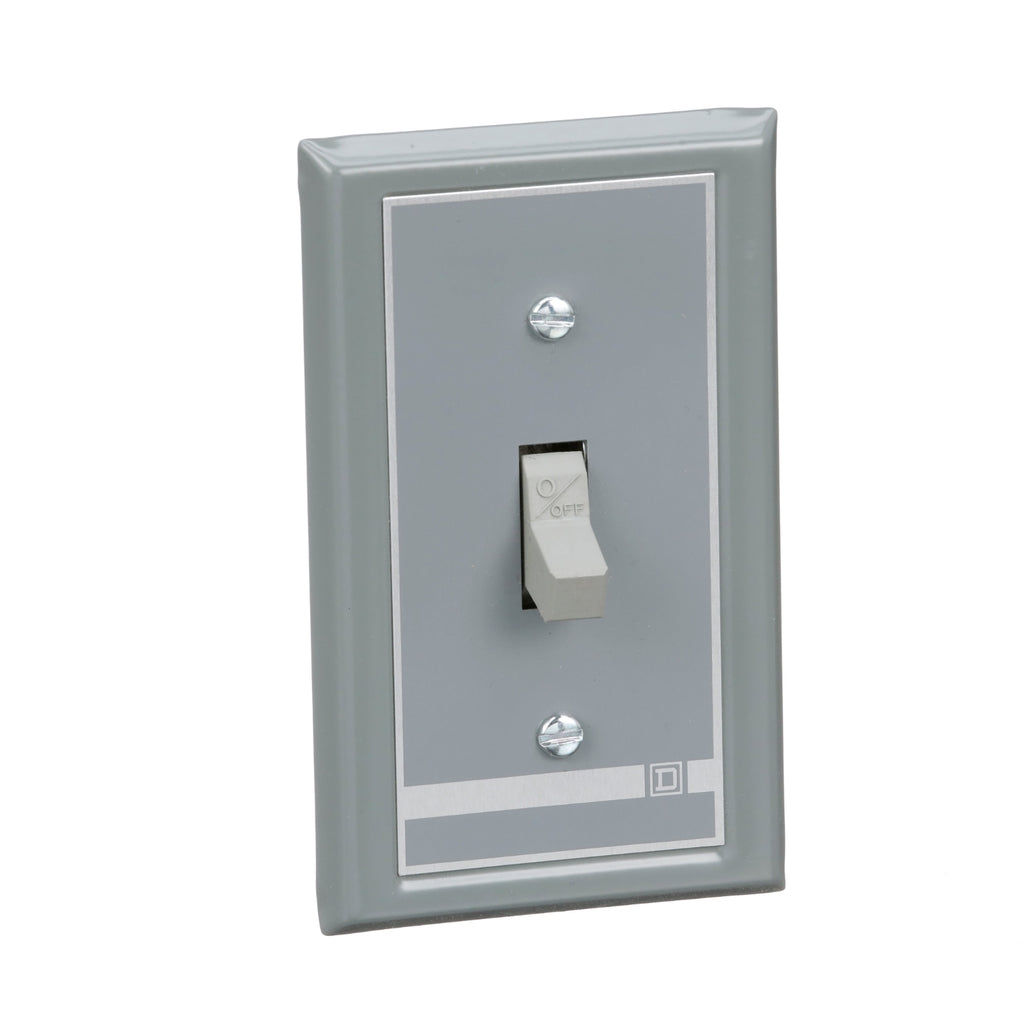

2510KF1 is a Square D Class 2510 manual motor starter designed for reliable motor control applications.This non-reversing Type K manual switch features a toggle actuator and provides manual on/off control for single-phase motors. It is rated for 30 amperes and 600 volts AC, with 2 poles and a flush mount enclosure. The device is suitable for use with Class 2510 motor control systems and supports motor horsepower ratings up to 3 HP at 575 VAC. It includes a gray flush plate and screw clamp connections for secure wiring.
- Manufacturer: Square D
- Part Number: 2510KF1
- Type: Manual Motor Starter, Type K
- Amperage: 30 A
- Voltage: 600 V AC / 230 V DC
- Poles: 2
- Mounting: Flush Mount
- Actuator: Toggle
- Enclosure: NEMA 00
- Phase: Single Phase
- Horsepower Rating: Up to 3 HP at 575 VAC
- Connection: Screw Clamp
- Certifications: UL, CSA, CE
Specifications
- Part Number: 2510KF1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Nema Rating : 0
Product Data
- UPC : 785901554417
- GTIN : 00785901554417
- Country of Origin : Mexico
- Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
- Weight : 0.481
- Certification : CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
