Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FW2P

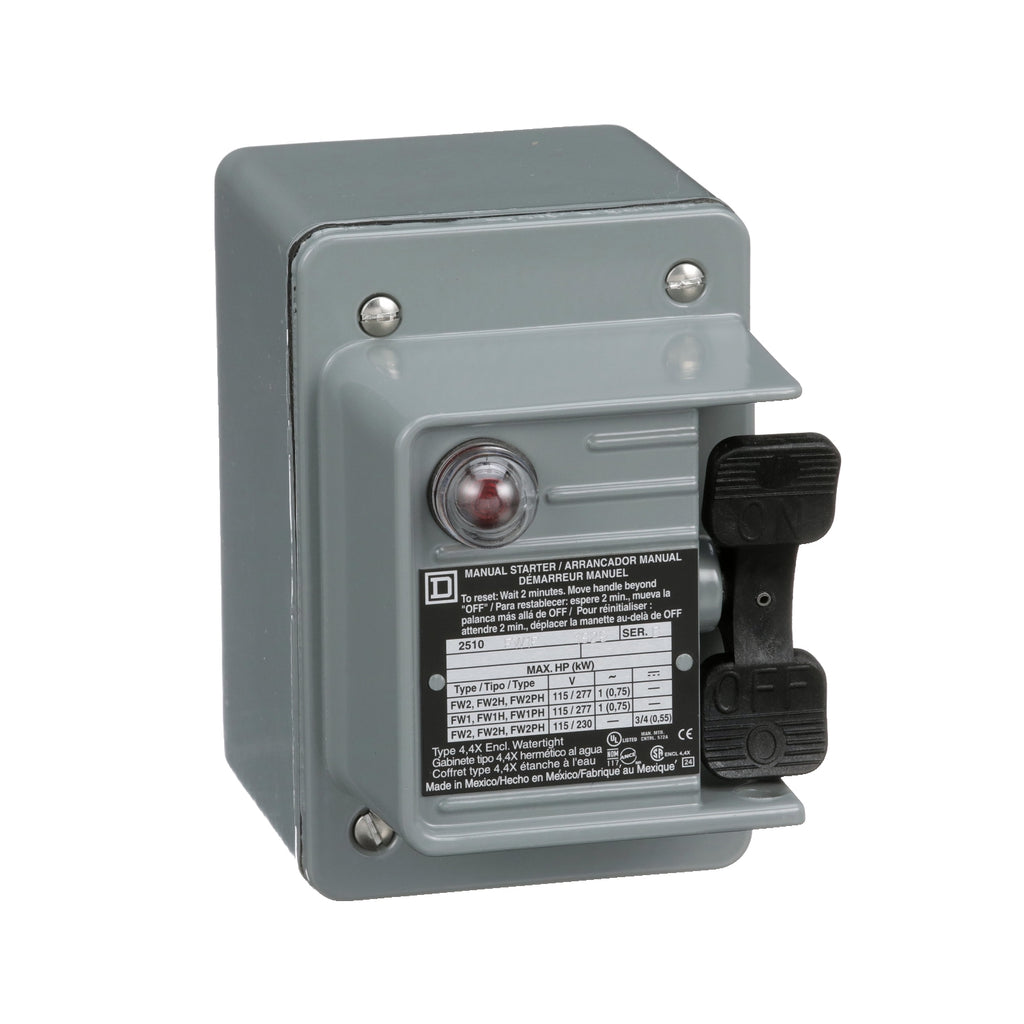

2510FW2P is a Square D Class 2510 manual motor starter designed for reliable motor control in industrial and commercial applications. This non-reversing starter features a toggle switch with lock-off capability and includes a red pilot light for local signaling. The 2510FW2P is rated for 16A continuous current and 277V AC, making it suitable for single-phase motor loads. It comes with a NEMA 4 enclosure for protection against dust and water ingress, and is constructed to NEMA standards. The unit requires separate heater packs for overload protection.
- Part Number: 2510FW2P
- Manufacturer: Square D
- Series: Class 2510
- Type: Manual Motor Starter
- Amperage: 16A
- Voltage: 277V AC
- Poles: 2
- Phase: 1
- Mounting Type: NEMA 4 Enclosure
- Control Unit: Toggle Switch with Lock-Off
- Local Signaling: Red Pilot Light
- Construction Standard: NEMA
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FW2P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 2
Product Data
- UPC : 785901554387
- GTIN : 00785901554387
- Country of Origin : Mexico
- Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.56 in (115.82 mm) (Height x Width x Depth)
- Weight : 2.989
- Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
