Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FW1PH

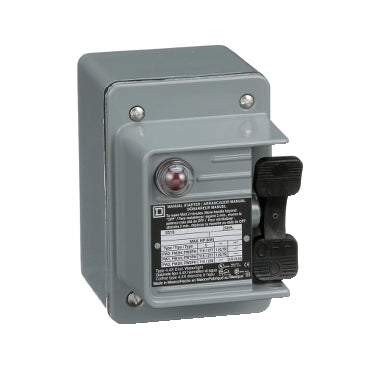

2510FW1PH is a Schneider Electric manual motor starter designed for fractional horsepower motors with a 16 ampere rating and 1 pole configuration.
This manual starter provides manual On-Off control with overload protection for small single-phase motors up to 1 HP at 277 VAC. It features a toggle operator with a red indicator light and is housed in a durable NEMA 4 die cast zinc alloy enclosure suitable for industrial and commercial applications. The starter is non-reversing and mounts on chassis, designed to protect fractional horsepower motors with melting alloy thermal units ordered separately for overload sensing.
- Current Rating: 16 Amps
- Voltage Rating: 277 VAC
- Poles: 1 Pole
- Horsepower Rating: 1 HP at 277 VAC
- Mounting Type: Chassis Mount
- Enclosure Type: NEMA 4
- Actuator Type: Toggle Switch
- Starter Type: Manual Motor Starter
- Non-Reversing Operation
- Red Indicator Light
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FW1PH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
Product Data
- UPC : 785901320241
- GTIN : 00785901000000
- Country of Origin : Mexico
- Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.56 in (115.82 mm) (Height x Width x Depth)
- Weight : 2.91
- Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
