Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FW1P

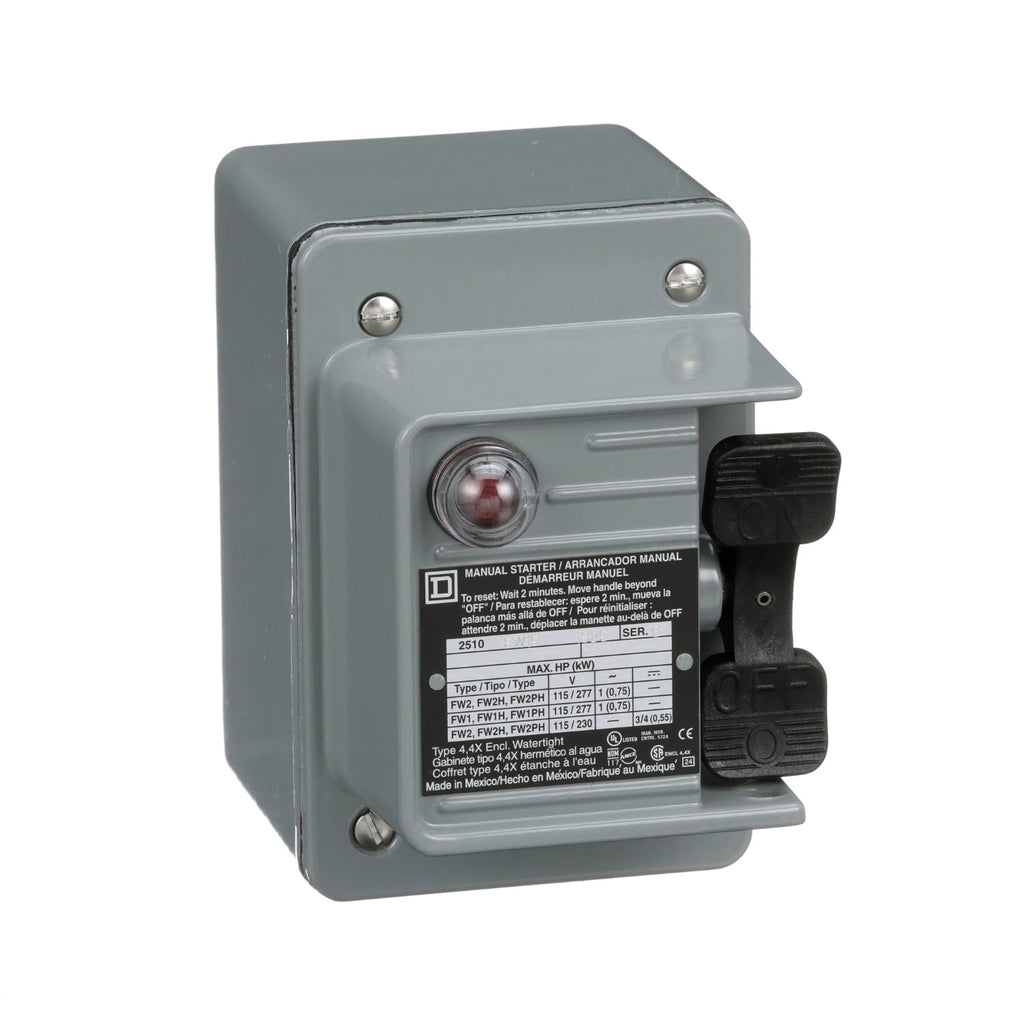

2510FW1P is a Square D Class 2510 manual motor starter designed for single-phase motor control applications. This starter provides manual On-Off operation and melting alloy overload protection for small motors up to 1 HP. The 2510FW1P features a 1-pole, 1-phase configuration with a 16A current rating and 277VAC voltage rating. It is housed in a NEMA 4 enclosure for durability and environmental protection. The toggle-operated handle includes a red pilot light for easy status indication. This starter is non-reversing and suitable for fractional horsepower motor applications.
- Part Number: 2510FW1P
- Manufacturer: Square D
- Series/Frame: Class 2510
- Amperage: 16A
- Voltage: 277VAC
- Poles: 1
- Phase: 1
- Enclosure Type: NEMA 4
- Mounting Type: Panel Mount
- Overload Protection: Melting Alloy
- Operation: Toggle Handle with Red Pilot Light
- Application: Fractional Horsepower Motors up to 1 HP
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FW1P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 1
Product Data
- UPC : 785901554370
- GTIN : 00785901554370
- Country of Origin : Mexico
- Dimensions : 4.38 in (111.25 mm) x 3 in (76.2 mm) x 4.56 in (115.82 mm) (Height x Width x Depth)
- Weight : 2.941
- Certification : CSA LR25490, E42243 CCN NLRV, UL Listed
