Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FS2

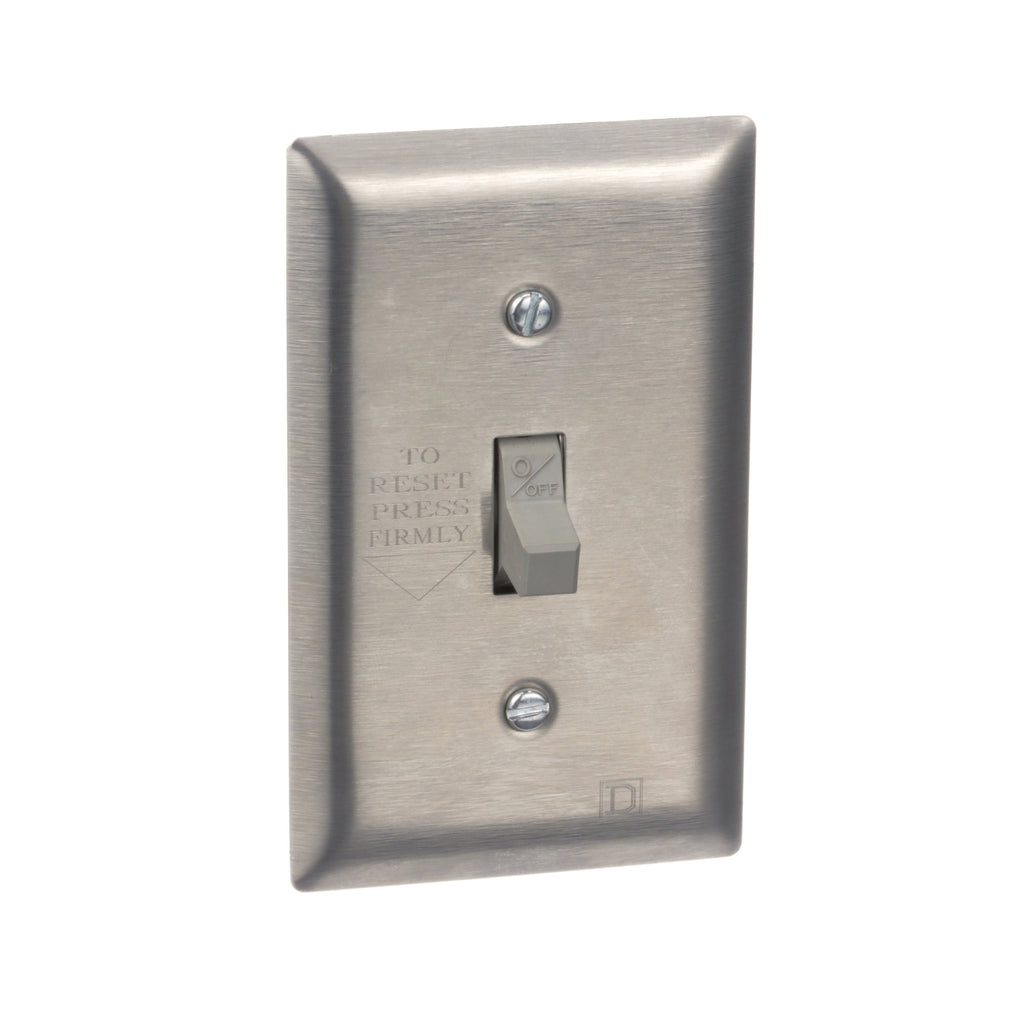

2510FS2 is a Square D Class 2510 manual motor starter designed for 1-phase applications with a 16A current rating and 277VAC maximum voltage. This non-reversing starter features a toggle switch operator and is suitable for fractional horsepower motor control. The 2510FS2 provides reliable manual motor protection in industrial and commercial environments. It is constructed for open mounting and does not include an indicator. Heater packs must be purchased separately for full thermal protection.
- Part Number: 2510FS2
- Manufacturer: Square D
- Series/Frame: Class 2510
- Number of Poles: 2
- Amperage: 16A
- Maximum Voltage: 277VAC
- Mounting Type: Open
- Interrupt Rating: Not rated
- Operator Type: Toggle Switch
- Motor Starter Type: Non-Reversing
- Local Signaling: No Indicator
- Certifications: UL Listed, CSA
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FS2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 2
Product Data
- UPC : 785901554257
- GTIN : 00785901554257
- Country of Origin : Mexico
- Dimensions : 4.5 in (114.3 mm) x 2.75 in (69.85 mm) x 2.19 in (55.63 mm) (Height x Width x Depth)
- Weight : 0.46
- Certification : CSA LR25490, E42243 CCN NLRV, UL Listed
