Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FS1P

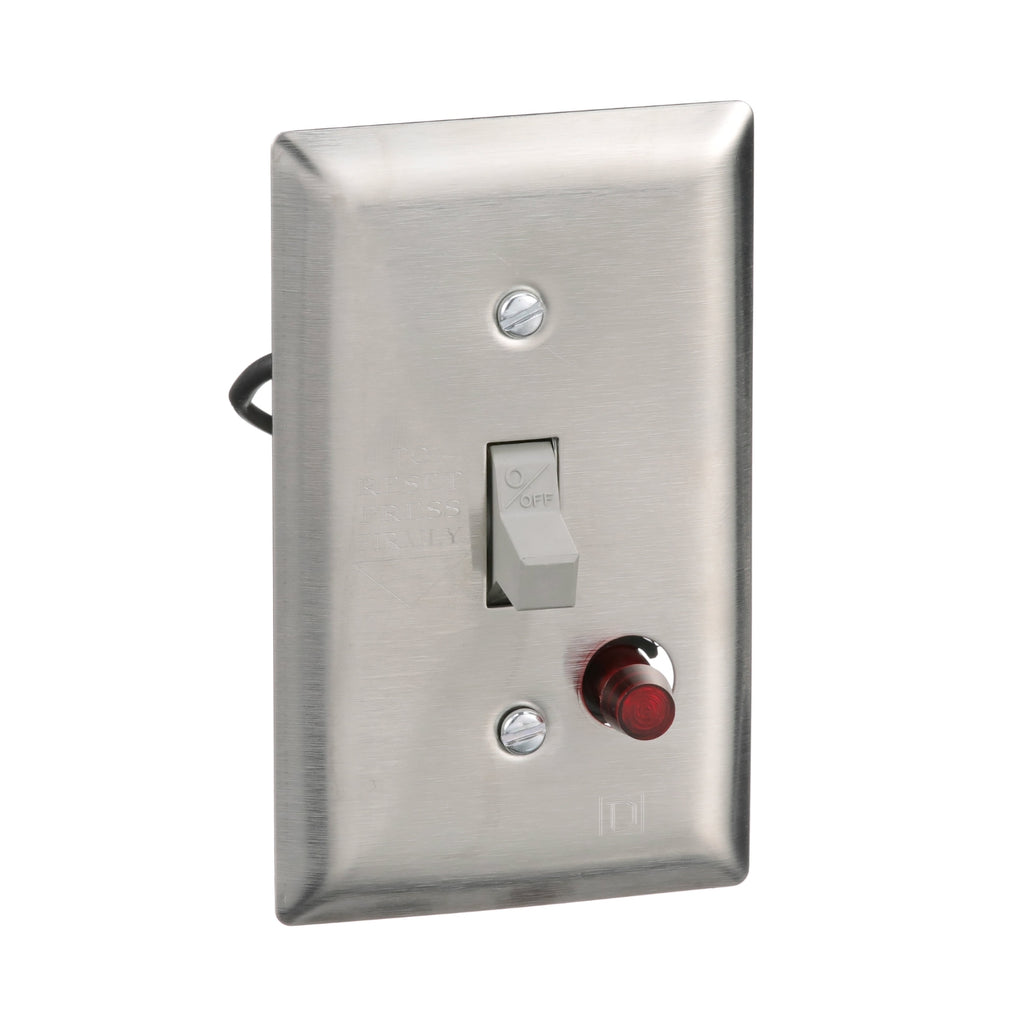

2510FS1P is a Square D Class 2510 manual motor starter designed for fractional horsepower motors with 16 amps, 1 pole, and 277 volts single phase.This manual starter features a toggle operator with a red pilot light indicator and is suitable for controlling small motors up to 1 HP at 277 VAC. It can be flush mounted in a standard switch box or machine cavity without a box, making it ideal for applications such as fans, conveyors, pumps, and small machine tools. Heater packs are sold separately.
- Amperage: 16A
- Voltage: 277V AC
- Poles: 1
- Phase: Single phase
- Horsepower rating: 1 HP at 277 VAC
- Mounting type: Flush mount, stainless steel plate
- Operator type: Toggle with red indicator light
- Motor starter type: Non-reversing
- Series/Frame: Class 2510
- Typical applications: Fans, conveyors, pumps, small machine tools
- Heater packs: Must be purchased separately
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FS1P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 1
Product Data
- UPC : 785901554240
- GTIN : 00785901554240
- Country of Origin : Mexico
- Dimensions : 4.5 in (114.3 mm) x 2.75 in (69.85 mm) x 2.19 in (55.63 mm) (Height x Width x Depth)
- Weight : 0.48 lb
- Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
