2510FS1 - Square D 16A 1-Pole Manual Motor Starter 277VAC Toggle Flush Mount

2510FS1

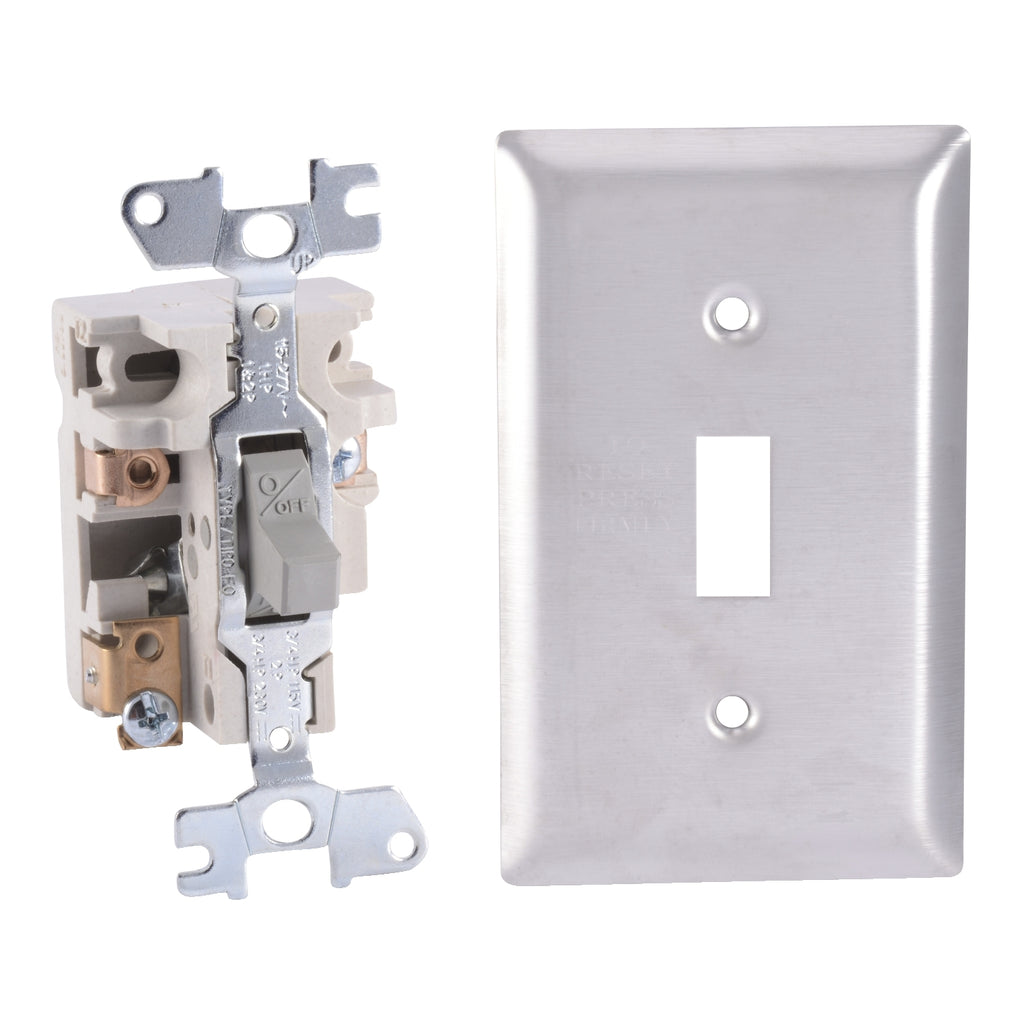

2510FS1 is a Square D fractional horsepower manual motor starter designed for 1-phase motor control applications.This manual starter features a 16 amp line rated current, supports 1 HP motors at 115, 230, and 277 VAC, and operates on a 277V AC system voltage. It is a 1-pole, non-reversing starter with a toggle switch control type and manual reset. The unit mounts flush with stainless steel construction and uses screw clamp terminals for electrical connections. It is UL, CSA, and CE certified.

• Amperage: 16A
• Voltage: 277 VAC system voltage
• Horsepower: 1 HP at 115/230/277 VAC
• Poles: 1-Pole
• Control Type: Toggle Switch
• Mounting Type: Flush Mount
• Reset Type: Manual
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals
• Certifications: UL, CSA, CE
• Phase: Single Phase
• Indicator: No local signaling

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510FS1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : F
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 1

Product Data

• UPC : 785901554233
• GTIN : 00785901554233
• Country of Origin : Mexico
• Dimensions : 4.5 in (114.3 mm) x 2.75 in (69.85 mm) x 2.19 in (55.63 mm) (Height x Width x Depth)
• Weight : 0.42
• Certification : CSA LR25490, E42243 CCN NLRV, UL Listed
