Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FR2

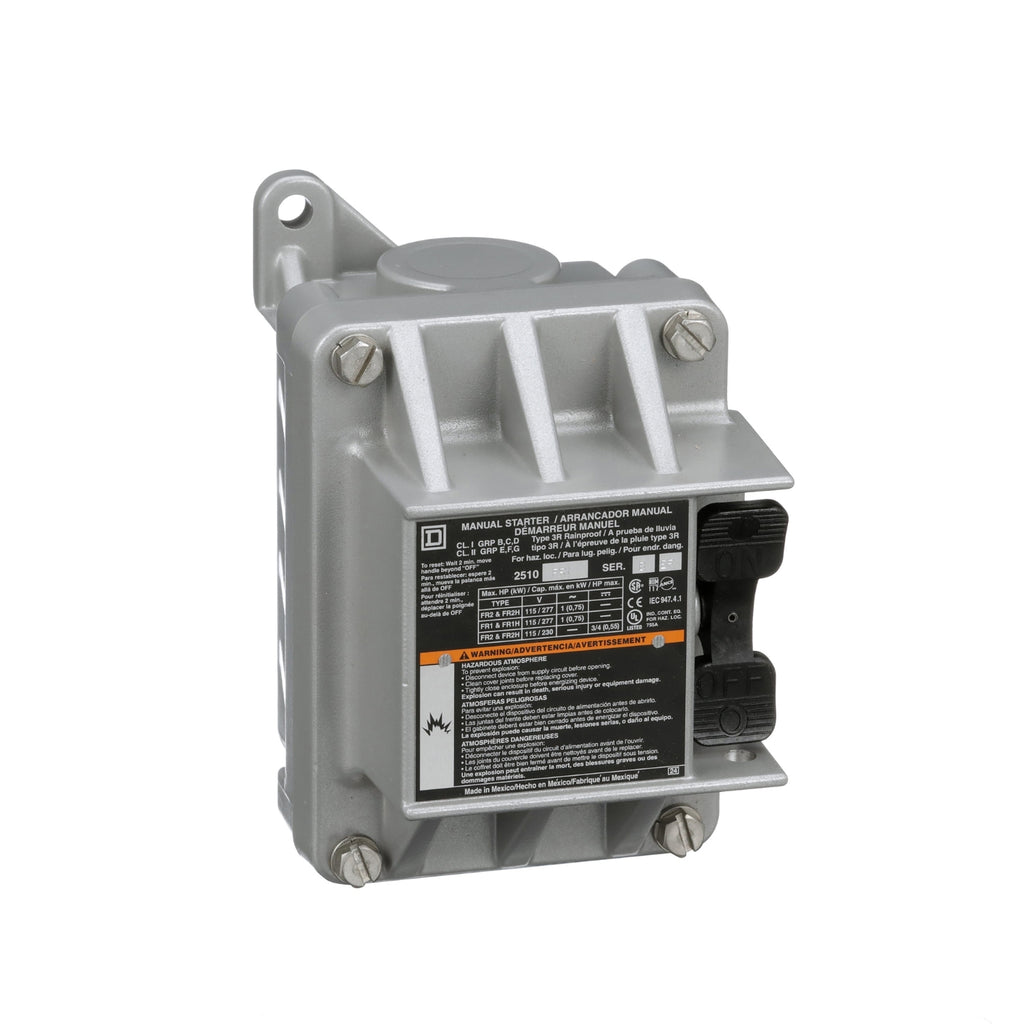

2510FR2 is a Square D fractional horsepower manual starter rated for 16 amps and 277VAC with 2 poles and NEMA 7 and 9 ratings.This manual starter features a toggle switch with lock-off, surface mounting type, and screw clamp terminals. It supports 1 HP motor power at 115 and 277 VAC, is non-reversing, and designed for industrial and commercial applications. The enclosure is cast aluminum, and it meets UL, CSA, and CE certifications.
- Key Specifications
- Amperage: 16A
- Voltage: 277VAC, 230VDC
- Poles: 2
- Phase: 1
- Mounting Type: Surface
- Frame Type: 2510 Series
- Control Type: Toggle Switch with Lock Off
- Interrupt Rating: NEMA 7 & 9
- Motor Power: 1 HP at 115/277 VAC
- Connection Type: Screw Clamp Terminals
- Enclosure Material: Cast Aluminum
- Certifications: UL, CSA, CE
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FR2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 2
Product Data
- UPC : 785901554219
- GTIN : 00785901554219
- Country of Origin : Mexico
- Dimensions : 6.36 in (161.54 mm) x 3.95 in (100.33 mm) x 4.35 in (110.49 mm) (Height x Width x Depth)
- Weight : 3.6
- Certification : CSA LR25490, E42243 CCN NLRV, UL Listed
