Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FO2

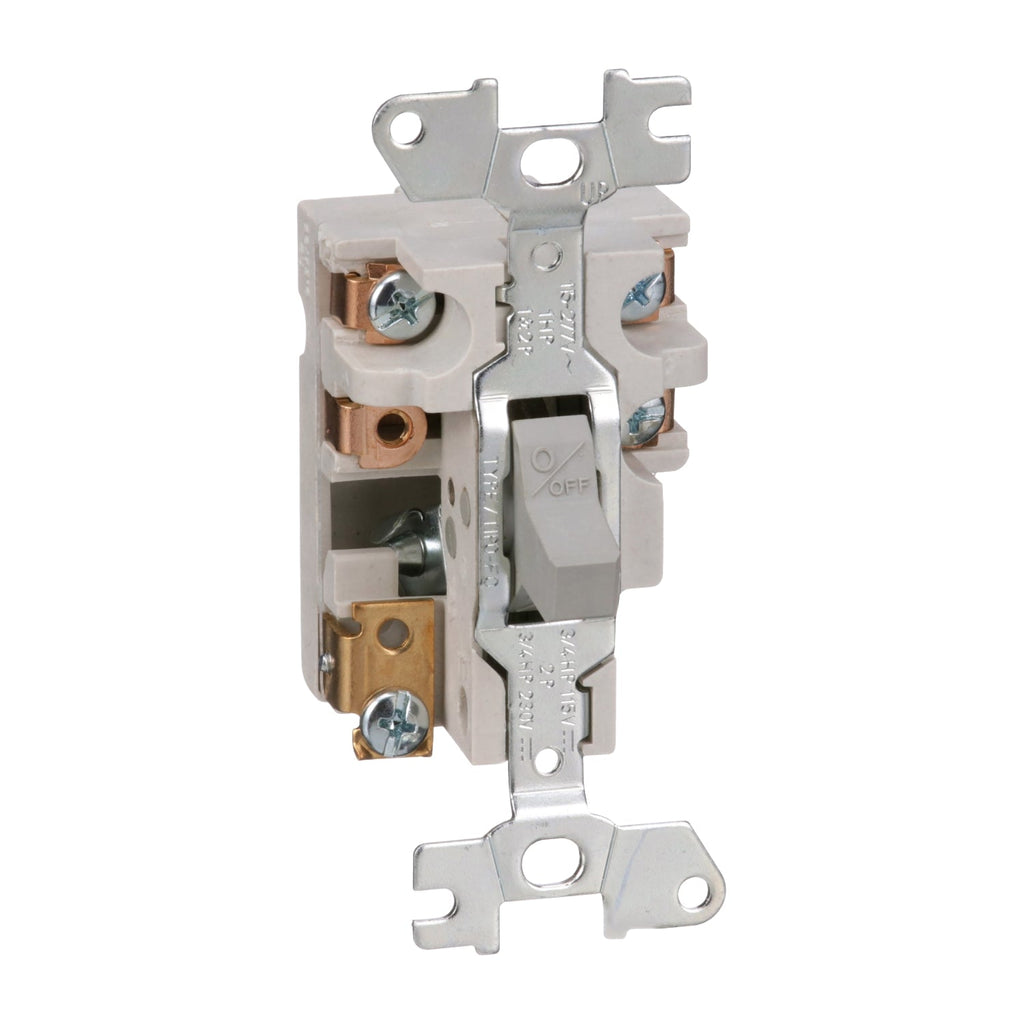

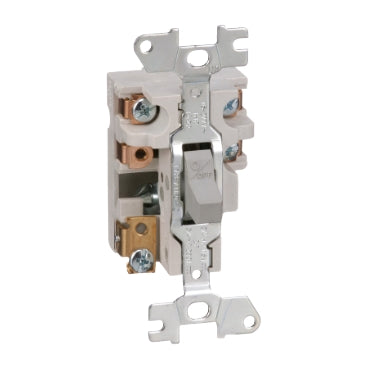

2510FO2 is a Square D fractional horsepower manual motor starter rated for 16 amps and 277 volts AC with 2 poles and toggle operation.This non-reversing manual starter provides manual ON/OFF control and overload protection for small single-phase motors. It supports motor power ratings of 1 HP at 115 VAC and 277 VAC, 2 HP at 230 VAC, and 0.75 HP at 115 and 230 VDC. The starter features screw clamp terminals for electrical connections and an open mounting type without an indicator.
- Amperage: 16A
- Voltage: 277 VAC
- Poles: 2
- Motor Power: 1 HP at 115/277 VAC, 2 HP at 230 VAC
- Control Type: Toggle switch
- Mounting Type: Open
- Non-reversing manual starter
- Electrical Connection: Screw clamp terminals
- Phase: Single-phase
- Overload protection included
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FO2
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 2
- Nema Rating : 0
Product Data
- UPC : 785901554158
- GTIN : 00785901554158
- Country of Origin : Mexico
- Dimensions : 4.13 in (104.90 mm) x 1.69 in (42.93 mm) x 2.22 in (56.39 mm) (Height x Width x Depth)
- Weight : 0.338
- Certification : CSA LR25490, E42243 CCN NLRV2, UL Listed
