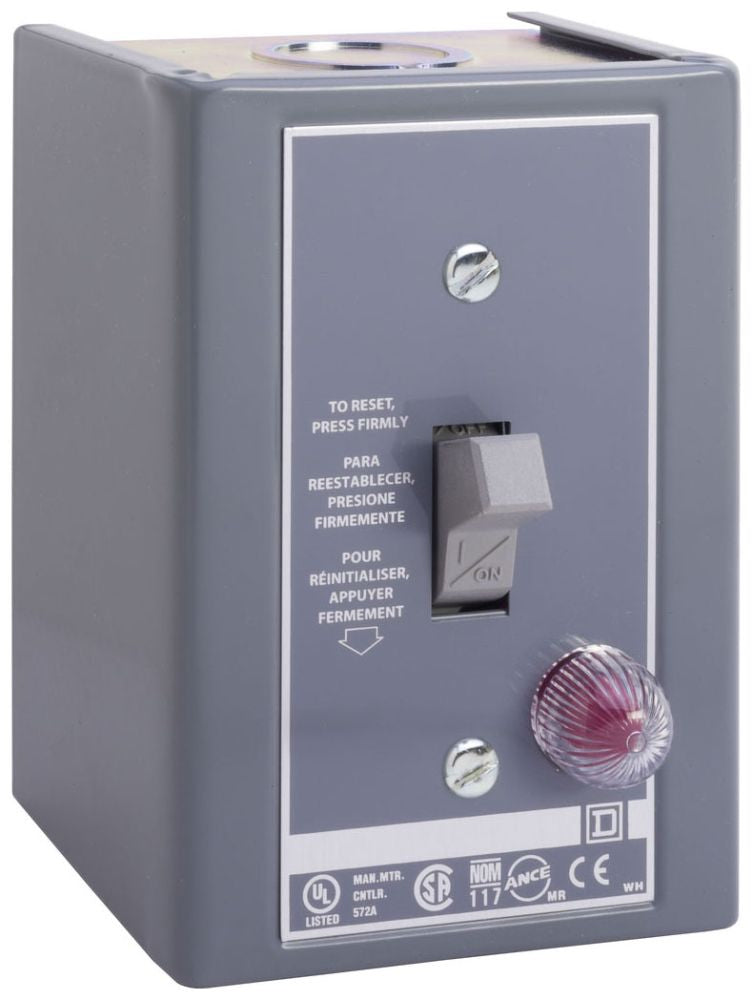

2510FGJ5P - Square D 16A 1 Pole Manual Starter 1 HP 277 VAC NEMA 1 Surface Mount

2510FGJ5P

2510FGJ5P is a Square D manual starter designed for fractional horsepower motors with a 16 ampere rating and 1 pole configuration.This manual starter supports single-phase motors up to 1 HP at 277 VAC. It features a toggle switch with guard and a red pilot light indicator for easy manual On-Off control. The device is housed in a NEMA 1 surface mounting enclosure suitable for general-purpose applications such as fans, conveyors, pumps, and small machine tools. It is UL Recognized, CSA Certified, and CE Marked for global use.

• Amperage: 16A
• Voltage: 277 VAC
• Poles: 1 Pole
• Horsepower Rating: 1 HP
• Mounting Type: Surface Mount
• Enclosure: NEMA 1
• Control Type: Toggle switch with guard and lock-off
• Indicator: Red pilot light
• Motor Type: Fractional single phase
• Certifications: UL Recognized, CSA Certified, CE Marked
• Interrupt Rating: Standard for fractional motor starters
• Series/Frame: Manual Starter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510FGJ5P
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
• Nema Rating : 00
• Protection : Solid State

Product Data

• UPC : 785901005469
• Dimensions : 4.25 in (107.95 mm) x 2.88 in (73.15 mm) x 2.88 in (73.15 mm) (Height x Width x Depth)
• Weight : 1.1
