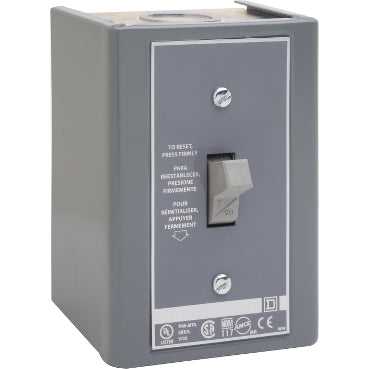

2510FGJ1 - Square D 16A 277V 1 Pole Motor Starter Class 2510 NEMA 1

2510FGJ1

2510FGJ1 is a Square D Class 2510 motor starter designed for single-phase motors with a 16 amp rating and 277V operating voltage.2510FGJ1 provides manual motor control with a single pole and is suitable for fractional horsepower motors up to 1 HP. It features a NEMA 1 enclosure and toggle operation for easy on/off control. Heater packs are sold separately.

• Current Rating: 16 Amps
• Voltage: 277 VAC
• Poles: 1
• Phase: Single Phase
• Motor Power Rating: Up to 1 HP
• Mounting Type: NEMA 1 Enclosure
• Motor Starter Type: Non-Reversing
• Series/Frame: Class 2510
• Manual Toggle Operation
• Heater Packs Sold Separately
• Suitable for Fractional HP Motors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 2510FGJ1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : F
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 1

Product Data

• Dimensions : 4.25 in (107.95 mm) x 2.88 in (73.15 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
• Weight : 5
• Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
