Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FG71P

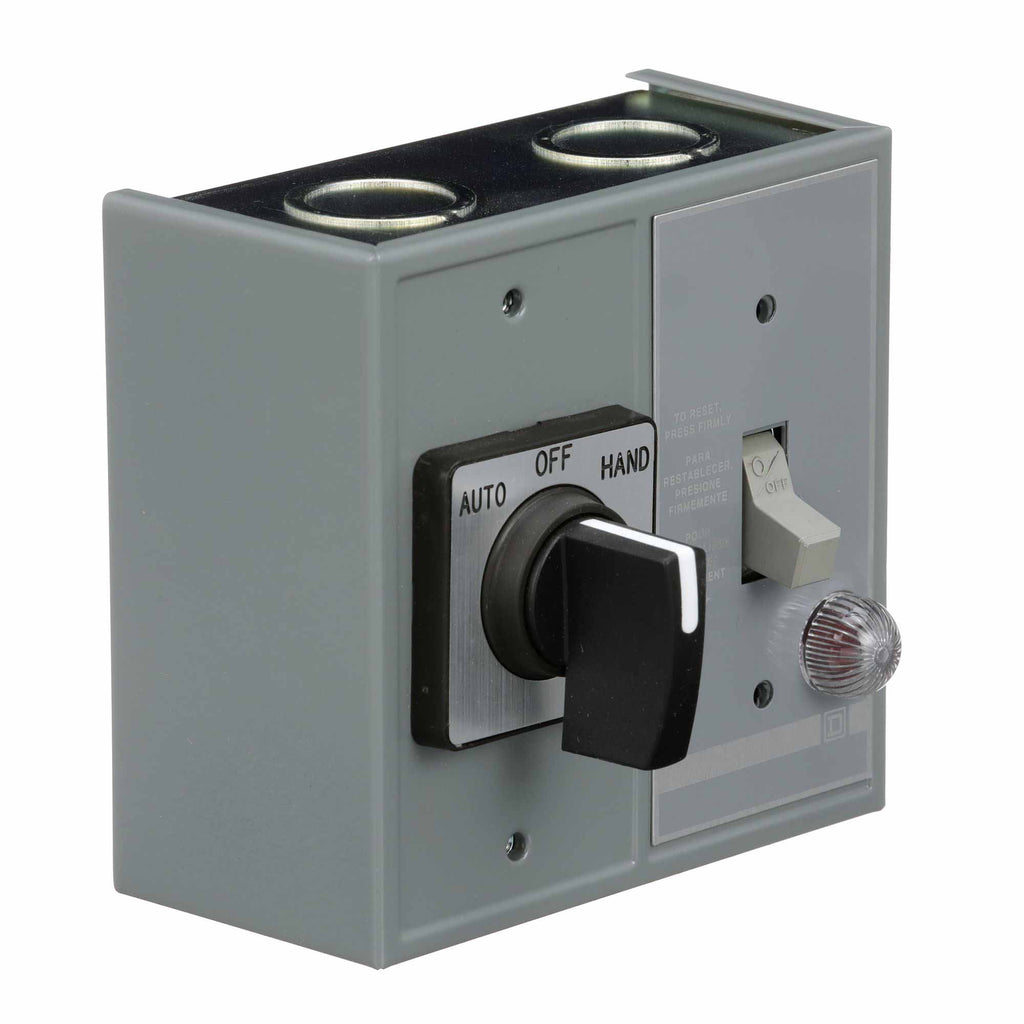

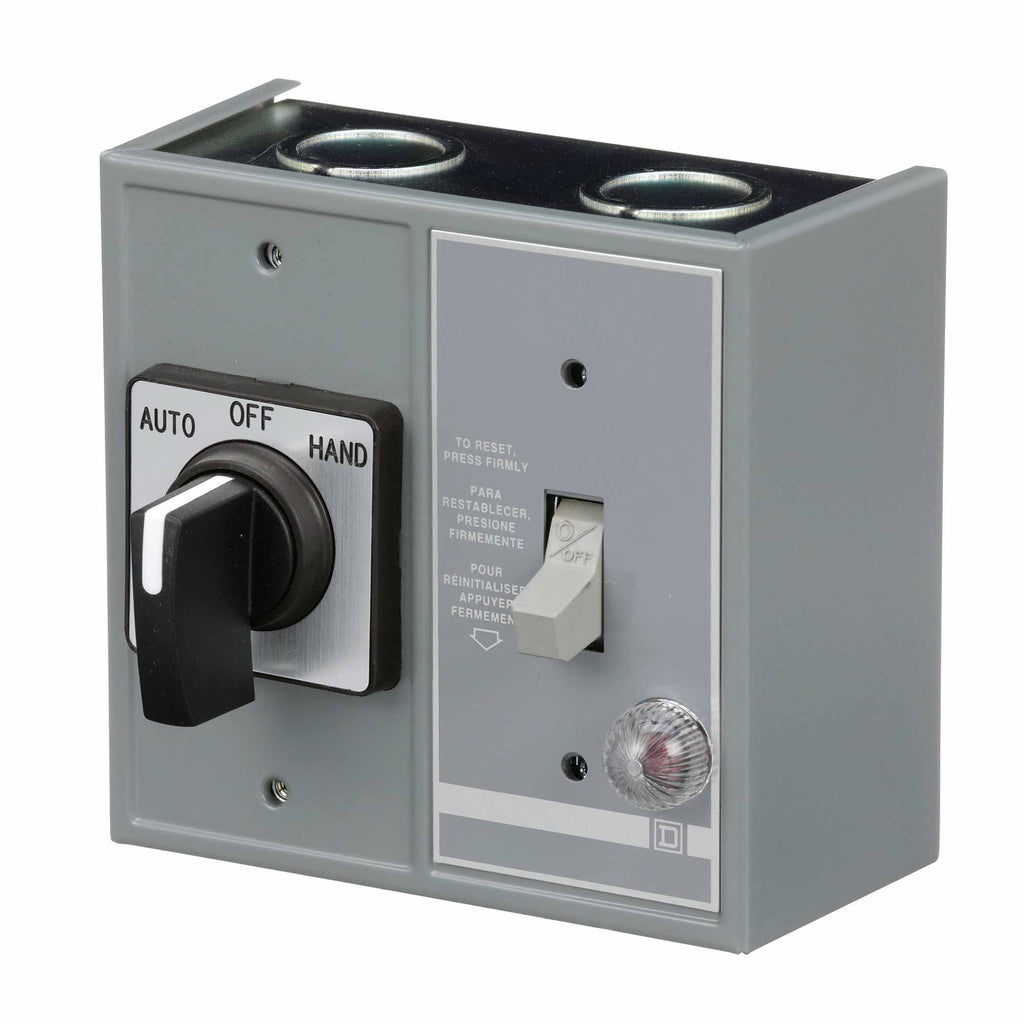

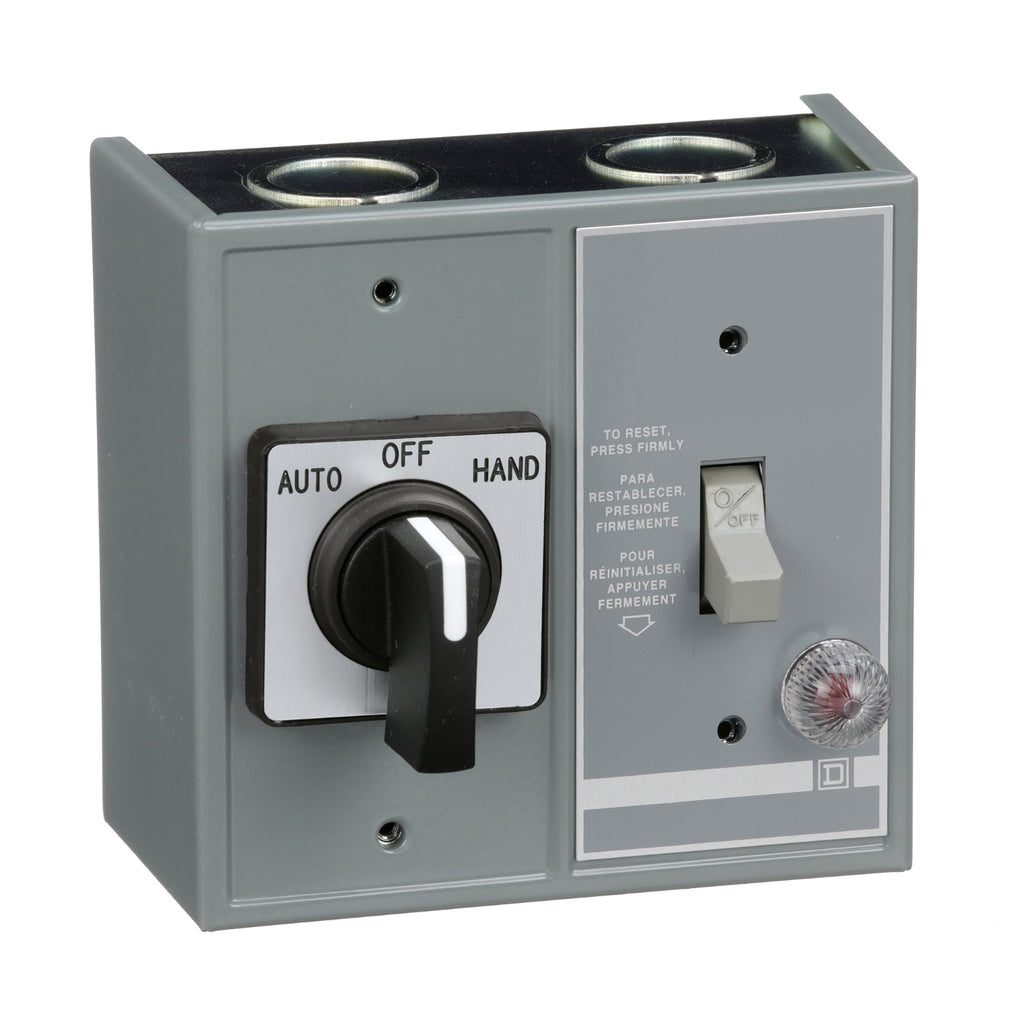

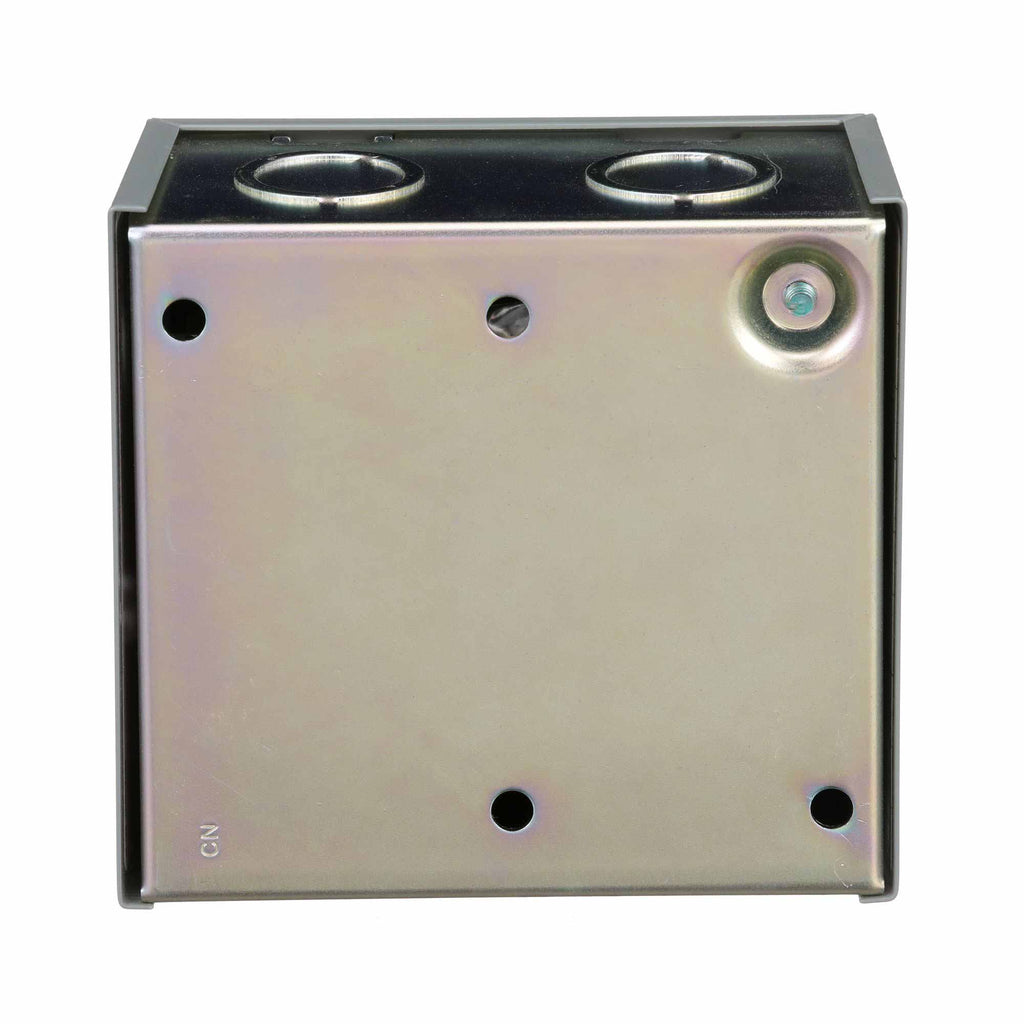

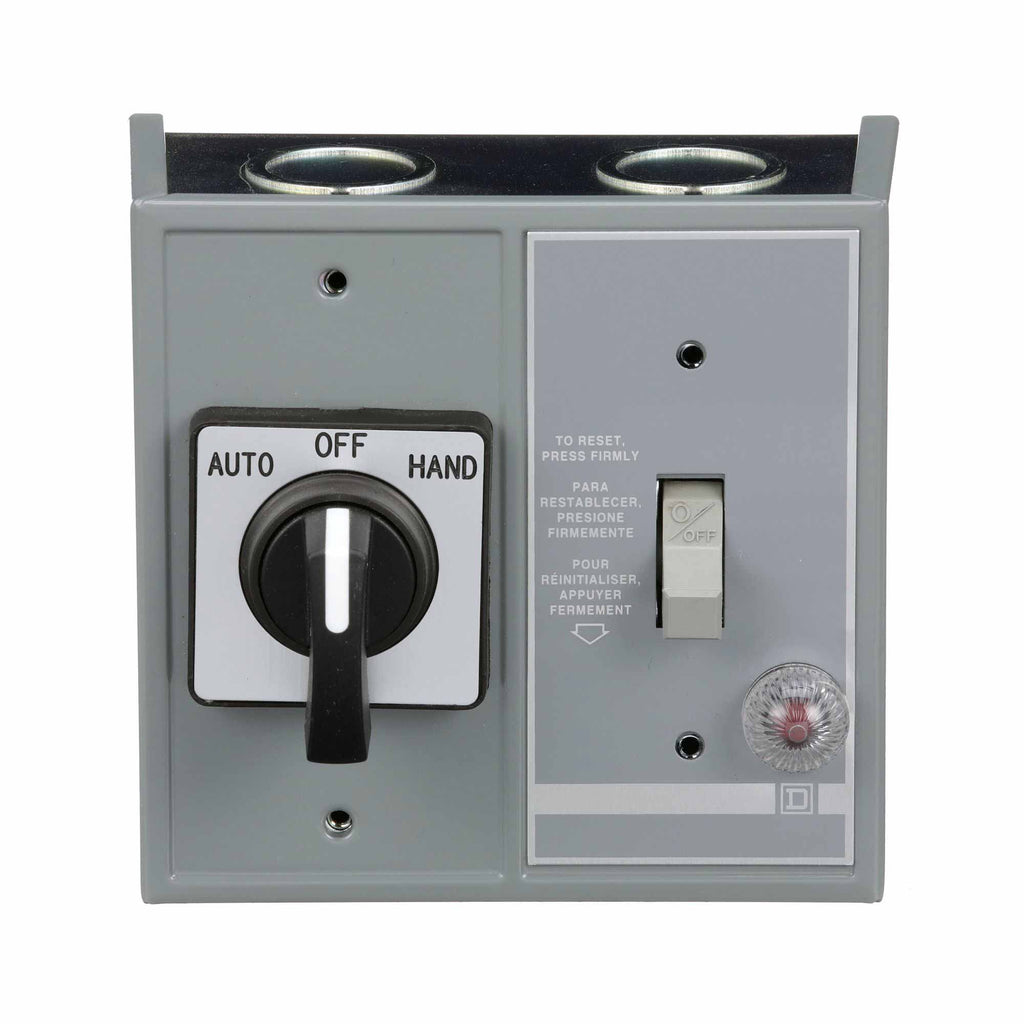

2510FG71P is a Square D manual motor starter designed for fractional horsepower single-phase motors with a 16 amp rating and 277VAC voltage.2510FG71P features a 1-pole duplex design with a toggle switch control and a red pilot light indicator. It is housed in a NEMA 1 surface mounting enclosure suitable for applications such as fans, conveyors, pumps, and small machine tools. The starter provides manual reset and melting alloy overload protection and is UL Recognized and CSA Certified.
- Amperage: 16A
- Voltage: 277VAC
- Poles: 1
- Phase: Single-phase
- Mounting Type: Surface mount NEMA 1 enclosure
- Control Type: Toggle switch with selector
- Indicator: Red pilot light
- Horsepower Rating: 1 HP at 277VAC
- Series: 2510F Duplex
- Certifications: UL Recognized, CSA Certified
- Reset Type: Manual
- Interrupt Rating: 600 VAC / 250 VDC
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FG71P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 1
Product Data
- UPC : 785901554899
- GTIN : 00785901554899
- Country of Origin : Mexico
- Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.88 in (73.15 mm) (Height x Width x Depth)
- Weight : 1.7 lb
- Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
