2510FG71 - Square D 16A 1 Pole Manual Starter 1 HP 277 VAC NEMA 1 Duplex

2510FG71

2510FG71 is a Square D manual starter designed for fractional horsepower motor control with overload protection.

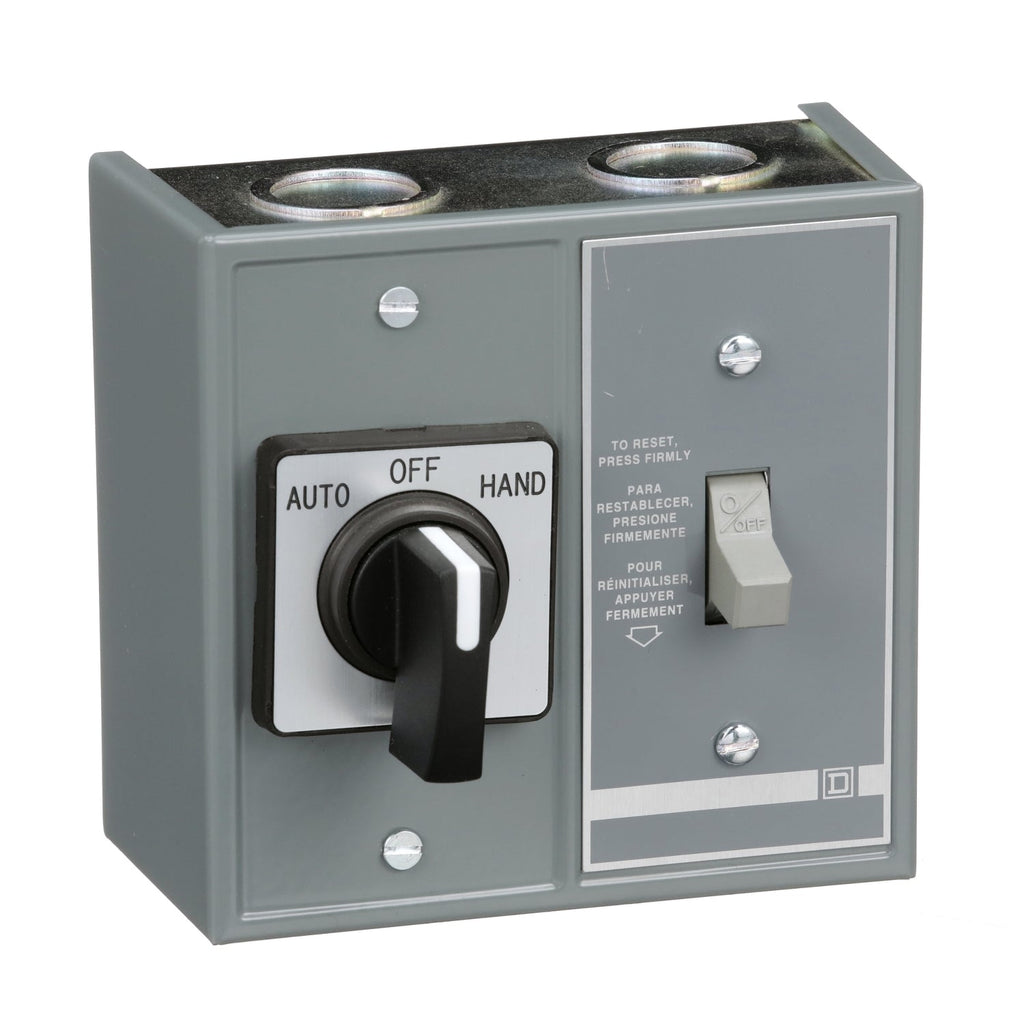

This 1 pole, non-reversing manual starter provides manual On-Off control for small single-phase motors up to 1 HP at 277 VAC. It features a 16 amp current rating and comes in a duplex NEMA 1 general purpose surface mounting enclosure. The starter includes a toggle operator and an Auto-Off-Hand single pole double throw selector switch without a pilot light indicator. It is UL listed and CSA certified for industrial and commercial applications such as fans, conveyors, pumps, and small machine tools.

• Manufacturer: Square D
• Part Number: 2510FG71
• Current Rating: 16 Amps
• Voltage Rating: 277 VAC
• Poles: 1 Pole
• Power Rating: 1 HP
• Enclosure Type: NEMA 1 Duplex
• Mounting Type: Surface Mount
• Motor Drive Type: Non-Reversing
• Toggle and Selector Switch Included
• No Pilot Light Indicator
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 2510FG71
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 2510
• Type : F
• Voltage : 277
• Amperage : 16
• Phase : 1
• Poles : 1
• Nema Rating : 00

Product Data

• UPC : 785901554097
• GTIN : 00785901554097
• Country of Origin : Mexico
• Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.88 in (73.15 mm) (Height x Width x Depth)
• Weight : 1.72
• Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
