Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
2510FG6P

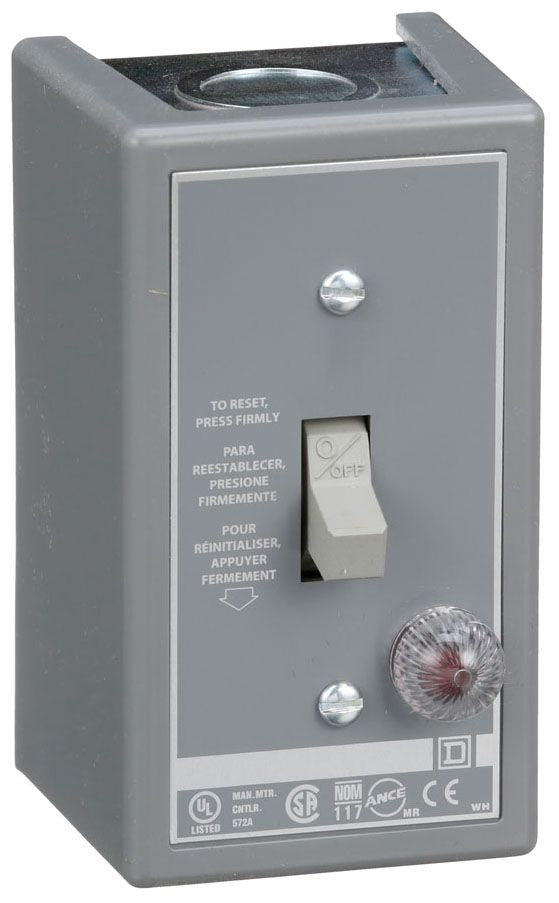

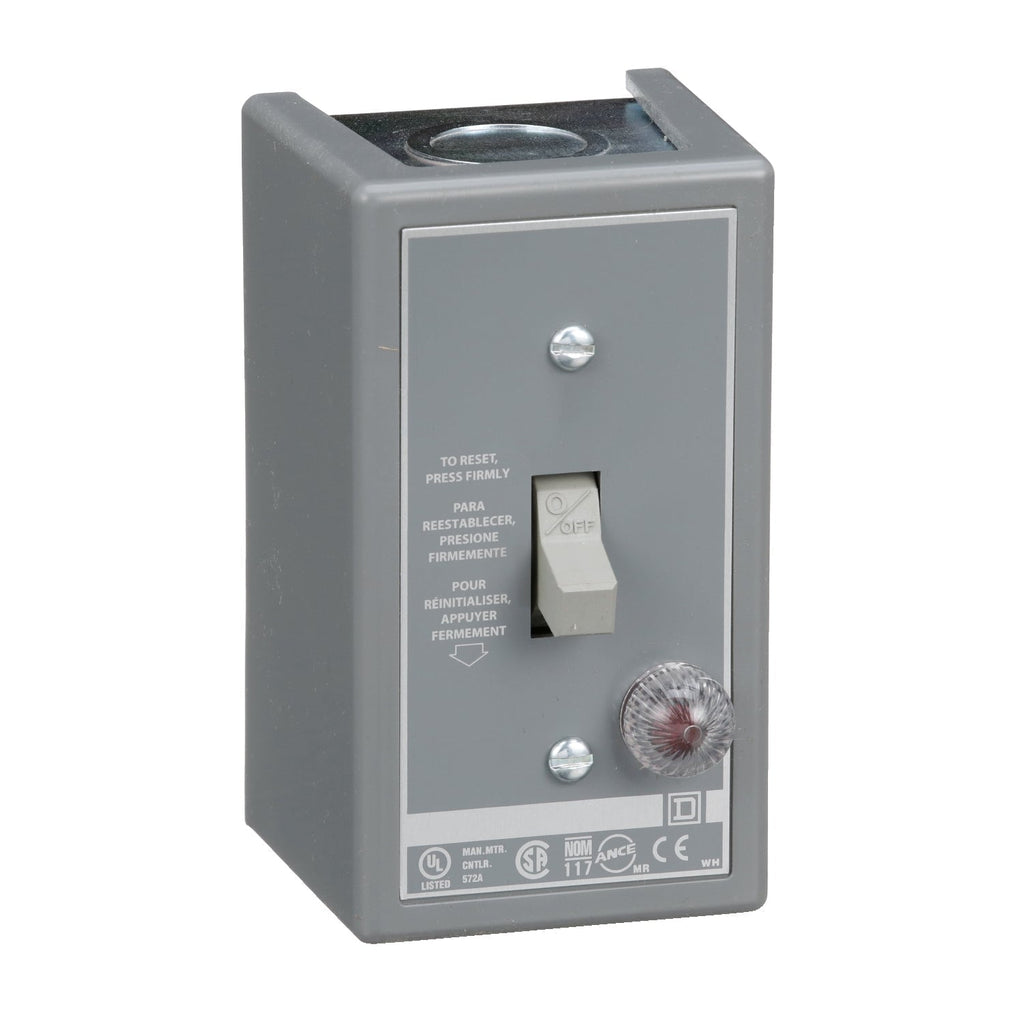

2510FG6P is a Square D Class 2510 manual motor starter designed for fractional horsepower motors with 16 ampere rating and 2 poles.This motor starter operates at 277 volts single phase and provides overload protection along with manual on/off control. It features a NEMA 1 sheet steel enclosure, a toggle switch with guard, and a red indicator for status. The starter is non-reversing and suitable for general purpose motor control applications.
- Amperage: 16A
- Voltage: 277V
- Poles: 2
- Phase: Single phase
- Frame/Series: Class 2510
- Enclosure Type: NEMA 1 sheet steel
- Type: Manual motor starter
- Non-reversing
- Toggle switch with guard and red indicator
- Overload protection included
- Suitable for fractional horsepower motors
Additional Information
Non-Reversing
Specifications
- Part Number: 2510FG6P
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : F
- Voltage : 277
- Amperage : 16
- Phase : 1
- Poles : 2
- Nema Rating : 00
Product Data
- UPC : 785901554042
- GTIN : 00785901554042
- Country of Origin : Mexico
- Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.88 in (73.15 mm) (Height x Width x Depth)
- Weight : 0.84
- Certification : UL listed file E42243 CCN NLRV CSA LR25490 class 3211 05
