24TDMEJ20 - Eaton Bussmann Medium Voltage DIN Fuse 20A 24kV Cartridge

24TDMEJ20

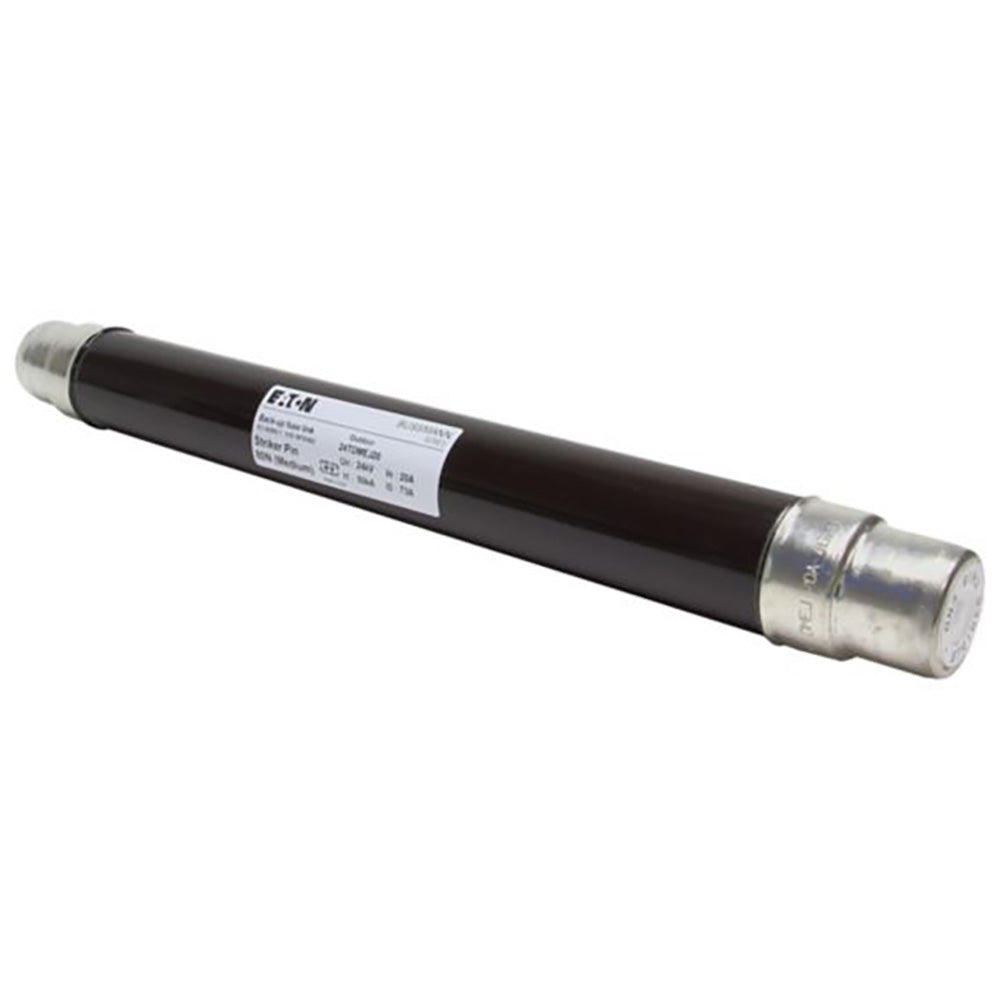

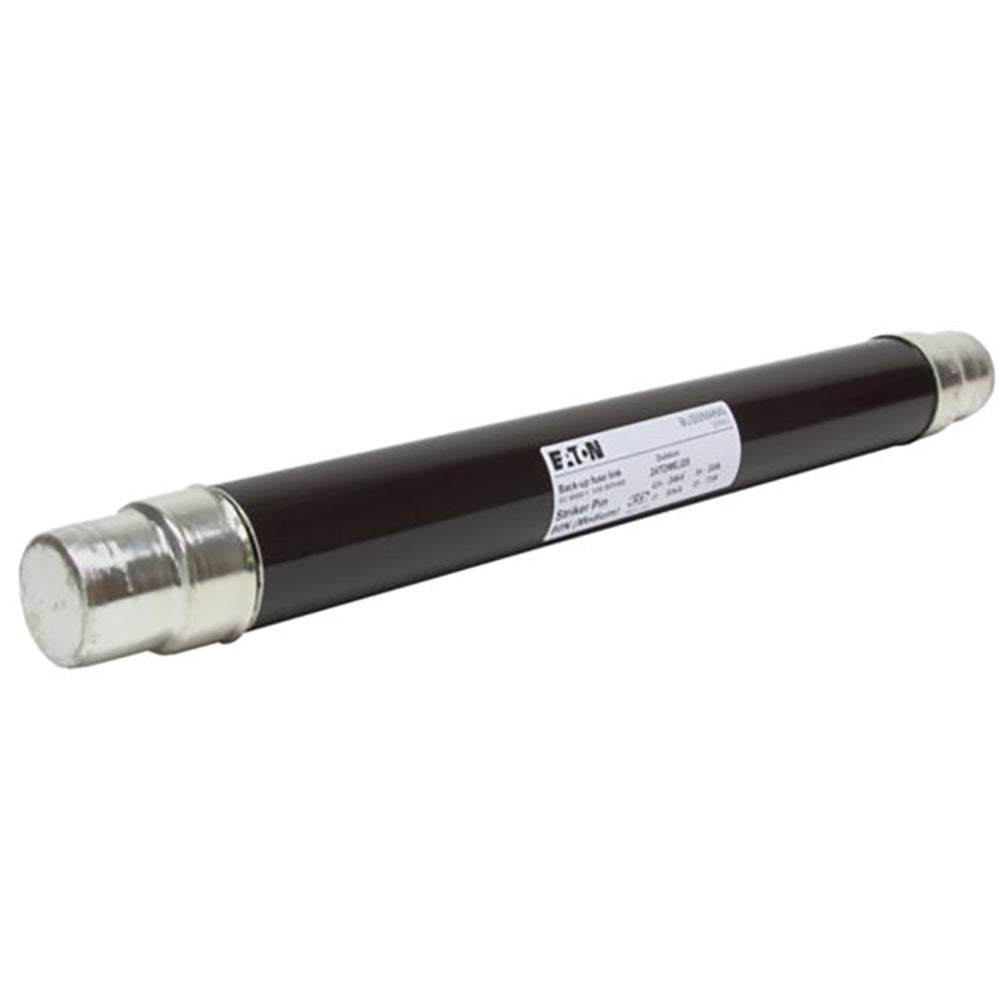

24TDMEJ20 is an Eaton Bussmann series medium voltage DIN fuse-link designed for backup protection in high-voltage AC applications. This cartridge fuse delivers reliable performance in industrial and utility power distribution systems requiring medium voltage protection.Technical Overview

The 24TDMEJ20 is a back-up type fuse-link rated for 20 amperes at 24 kV AC. It features a 51 x 442 mm (2 inch) form factor with an integrated striker for visual fault indication. The fuse is designed for use with standard DIN fuse clips and provides a breaking capacity of 50 kA, making it suitable for demanding medium voltage circuits. The unit operates at a minimum rated frequency of 50 Hz and is engineered to meet international DIN standards for medium voltage protection.

Key Specifications

• Part Number: 24TDMEJ20
• Manufacturer: Eaton Bussmann
• Amperage Rating: 20 A
• Voltage Rating: 24 kV AC
• Fuse Type: Cartridge, Back-up
• Fuse Size: 51 x 442 mm (2 inch)
• Breaking Capacity: 50 kA
• Fuse Indicator: With Striker
• Mounting Type: Requires Holder/Fuse Clip
• Rated Frequency: 50 Hz minimum
• Standards: DIN

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 24TDMEJ20
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : DIN
• Type : DIN
• Voltage : 24000
• Amperage : 20
• AIC rating : 50kA@24kV
• Diameter : 2
• Class Rating : R
• Barrels : 1

Product Data

• UPC : 005171218631
• GTIN : 00051712186315
• Dimensions : 442 mm x 54 mm x 51 mm (Length/Depth x Height x Width)
• Weight : 5.1888
