Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

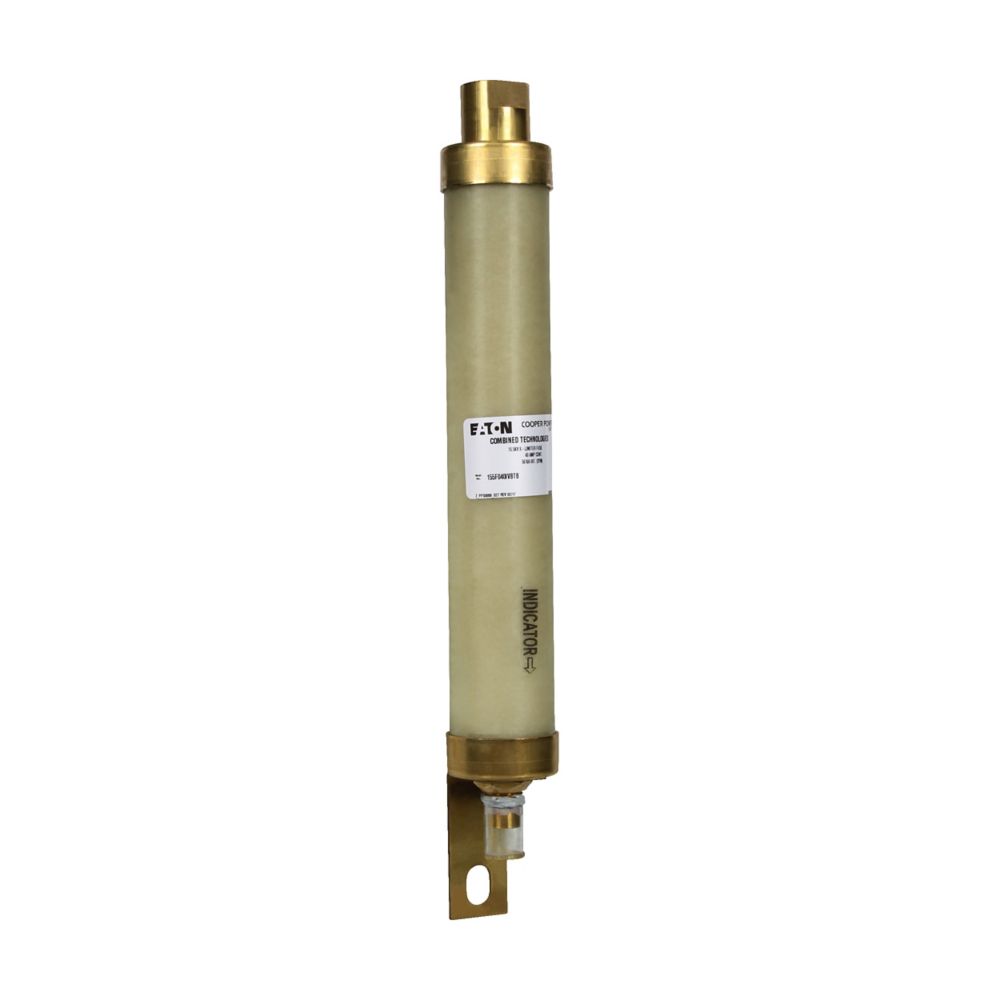

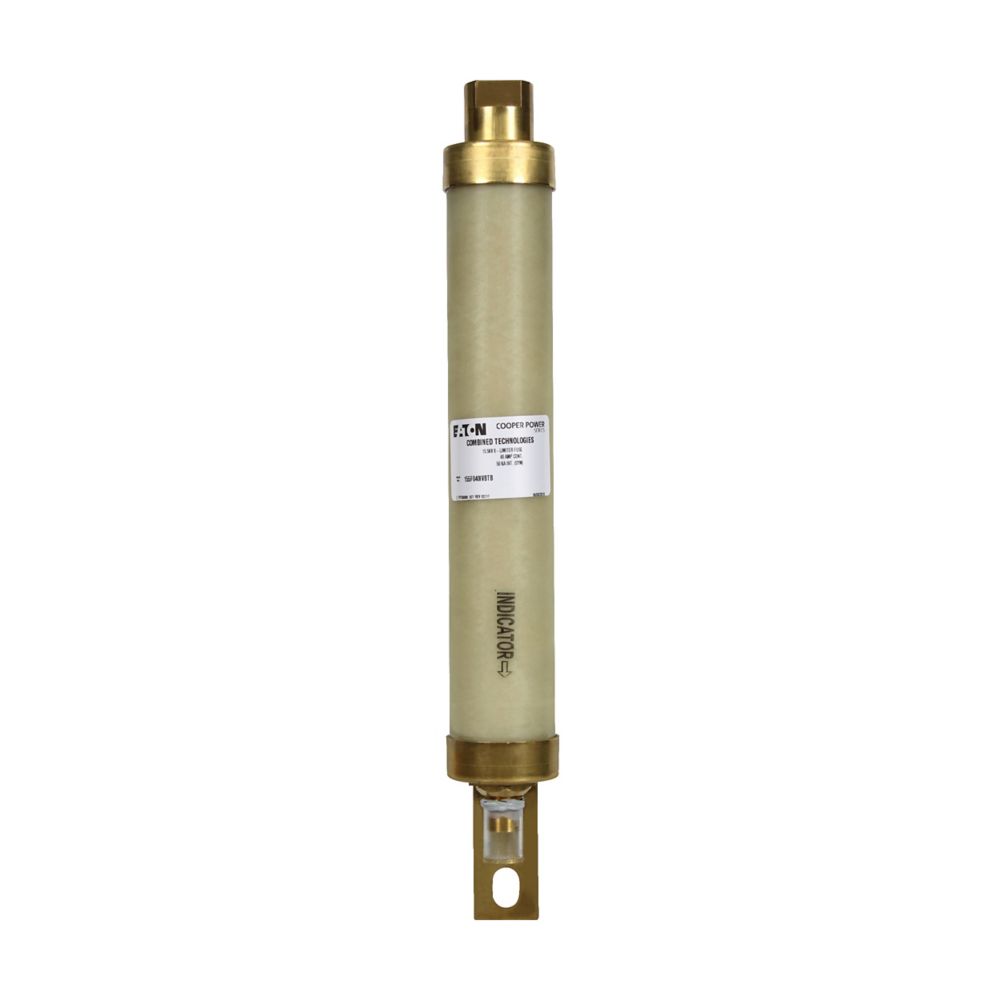

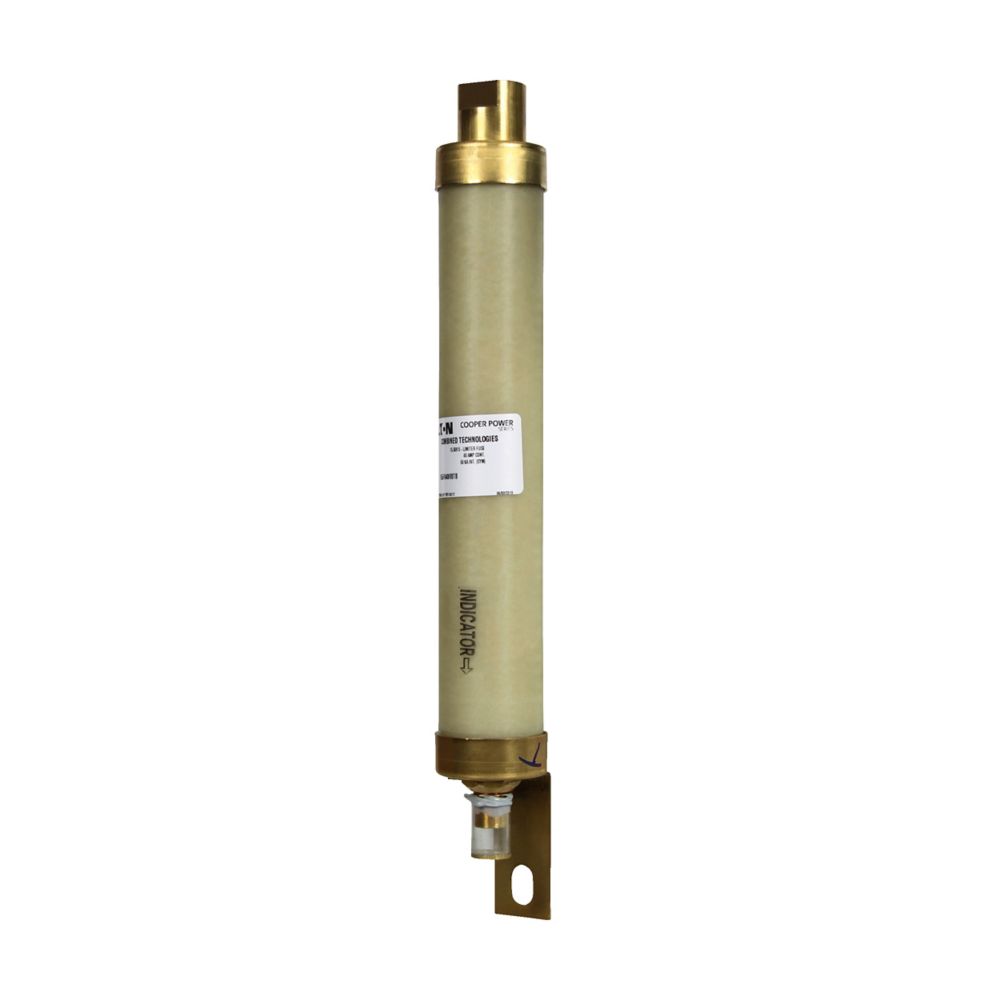

23F020-IVBTB
23F020-IVBTB is an Eaton Cooper Power series current-limiting capacitor fuse designed for indoor direct-connect applications in medium-voltage power distribution systems. This fuse provides reliable overcurrent protection with a full-range interrupting capability suitable for distribution-class circuits. The BTB design features a bolt-tab connection configuration for secure mounting on capacitor bushings and other medium-voltage equipment. The fuse body incorporates a red indicator that displays when the fuse has blown, enabling quick visual identification of a fault condition. Installation requires standard hardware and torque specifications as outlined in Eaton installation documentation.
- Voltage Rating: 23 kV
- Current Rating: 20 A
- Maximum Interrupting Current: 50 kA symmetrical
- Design Type: BTB (bolt-tab direct-connect)
- Mounting: Indoor direct connect
- Diameter: 2.13 inches
- Class: Distribution C
- Fuse Indicator: Red blown position indicator
- Connection Type: 1/2-13 UNC threaded
Specifications
- Part Number: 23F020-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting capacitor fuse
- Voltage : 23000
- Amperage : 20
- Connection : Special
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 194006030786
- Dimensions : 2.1 in x 18.5 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 3.527
