Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
23012R1B5.5

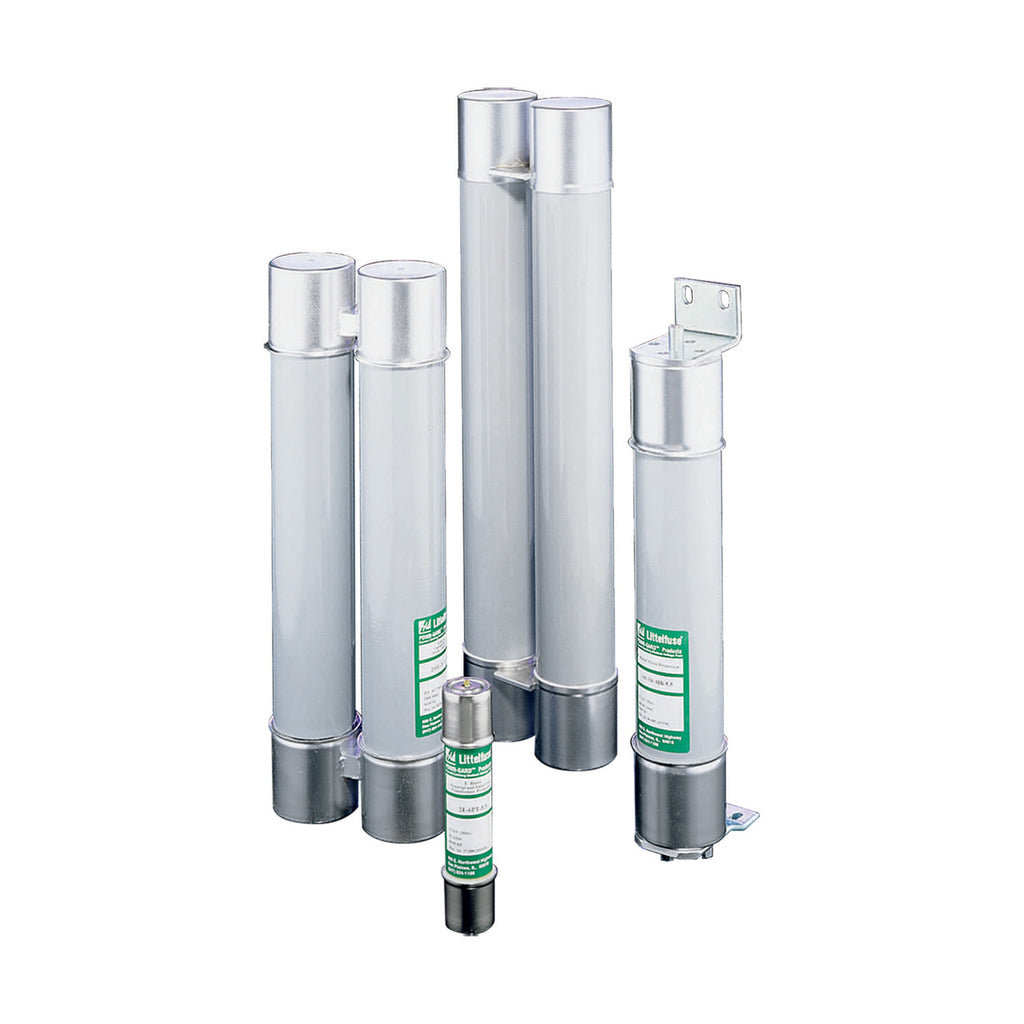

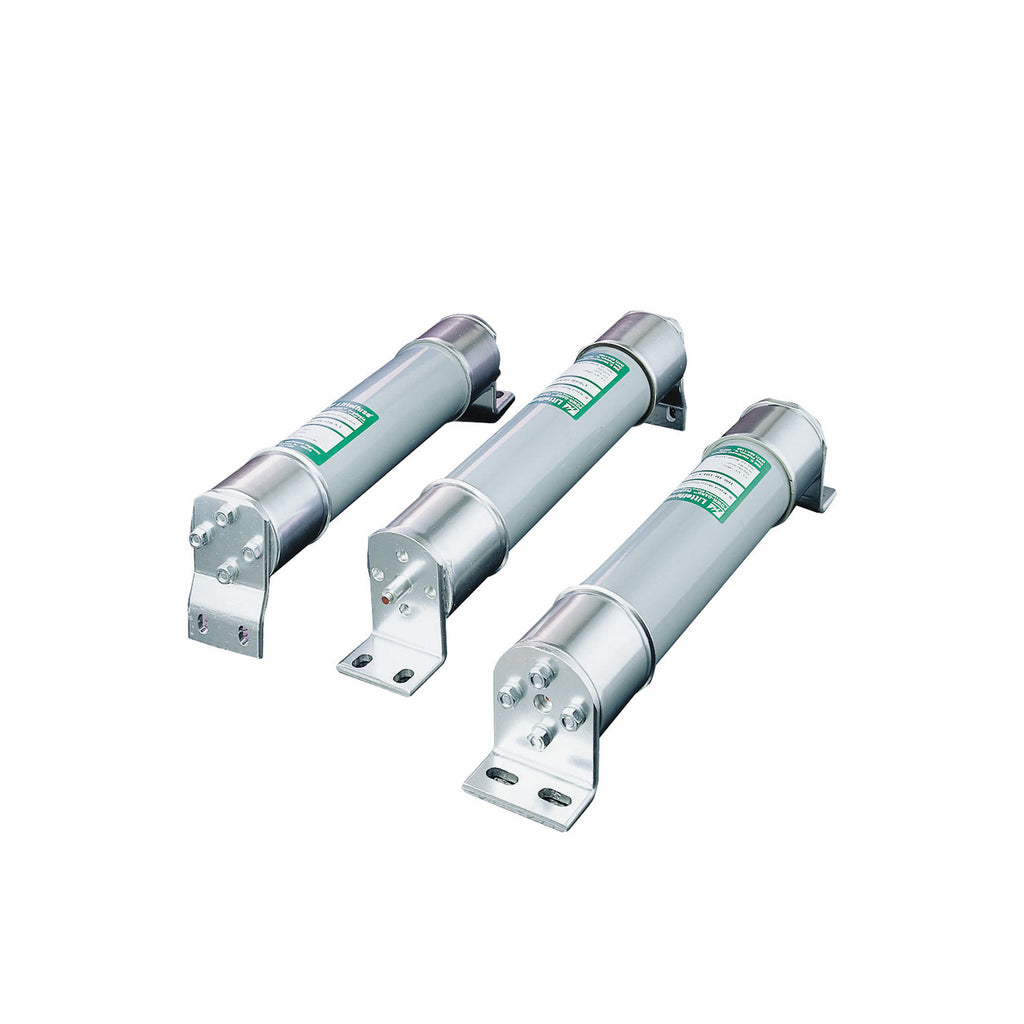

23012R1B5.5 is an R-rated medium voltage fuse designed to provide short-circuit protection for medium voltage motors, motor controllers, and associated circuitry. This fuse operates within NEMA standards for R-rated fuses, opening within 15-35 seconds when subjected to an rms current 100 times the R rating. The bolt-in design allows for secure mounting in medium voltage power distribution systems. R-rated fuses are engineered to work in conjunction with motor controllers that provide overload and locked rotor protection, preventing sustained overcurrents from damaging the fuse. Key Specifications
- Part Number: 23012R1B5.5
- Manufacturer: Littelfuse
- Amperage Rating: 230 Amp
- Voltage Rating: 5.5 kV
- Fuse Type: R-Rated
- Interrupt Rating: 80 kA @ 5.5 kV
- Mounting Style: Bolt-In
- Fuse Size: 12R
- Package Type: Cylindrical with Blade Terminal

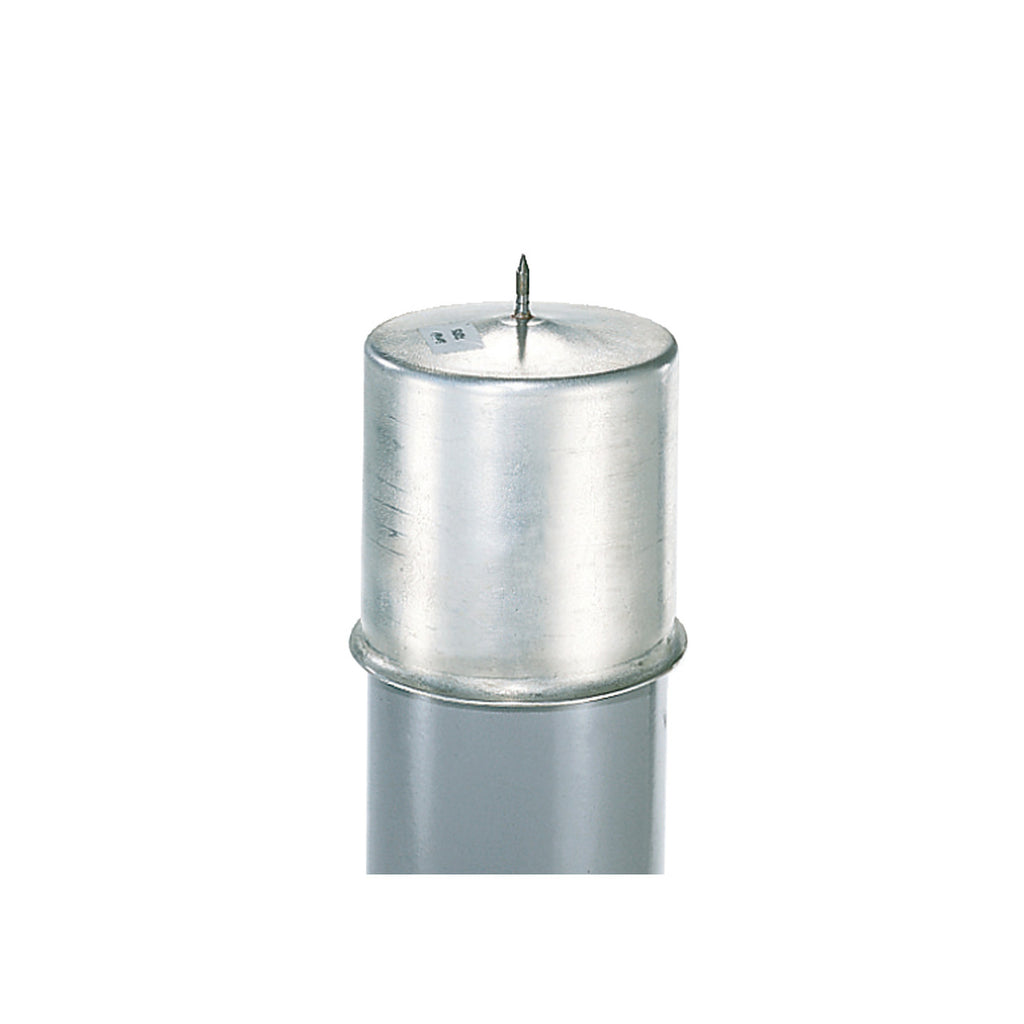

- Indicator: Mechanical Indicator
Specifications
- Part Number: 23012R1B5.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : R Rated
- Type : R Rated
- Voltage : 5500
- Amperage : 230
- AIC rating : [email protected]
- Connection : Bolt
- Diameter : 3
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 079458042665
- GTIN : 00079458042665
- Weight : 11
