2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-979

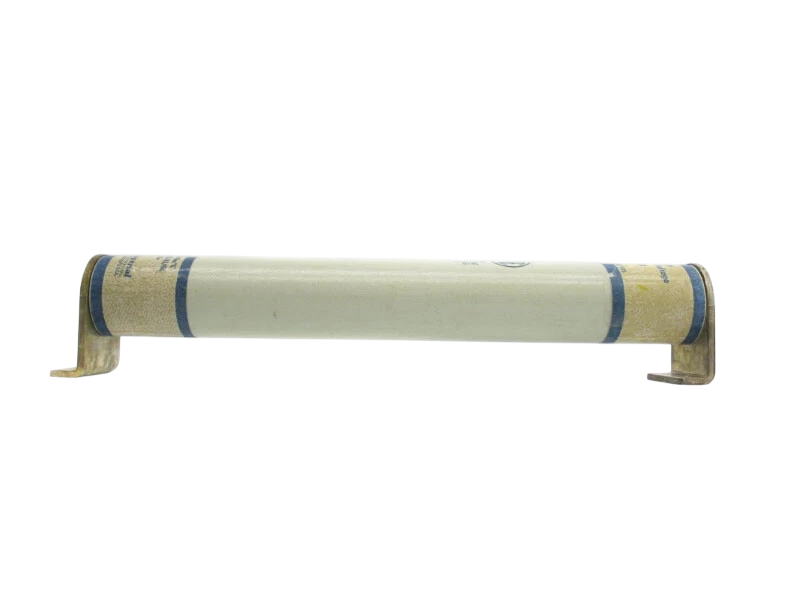

225-007-979 is a Ferraz Shawmut medium voltage fuse rated for 200 amps and 15.5kV, designed for reliable current-limiting protection in power distribution systems.This triple barrel fuse features a filament wound glass epoxy tube construction with silver-plated copper terminals, providing UV and moisture resistance for indoor and outdoor use. It meets CL-14 current-limiting specifications and is suitable for transformer and feeder protection with a high interrupt rating.
- Key Specifications
- Amperage: 200A
- Voltage Rating: 15.5kV maximum
- Fuse Type: Triple Barrel
- Construction: Filament wound glass epoxy tube
- Current Limiting: CL-14
- Interrupt Rating: High (typical for medium voltage fuses)
- Mounting: Bolt-in or clip-lock style (typical for series)
- Application: Transformer and feeder protection
- Agency Certifications: Meets ANSI standards for medium voltage fuses
Specifications
- Part Number: 225-007-979
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 3
- Clip Center : 21.25
Product Data
- Weight : 43
