Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-978

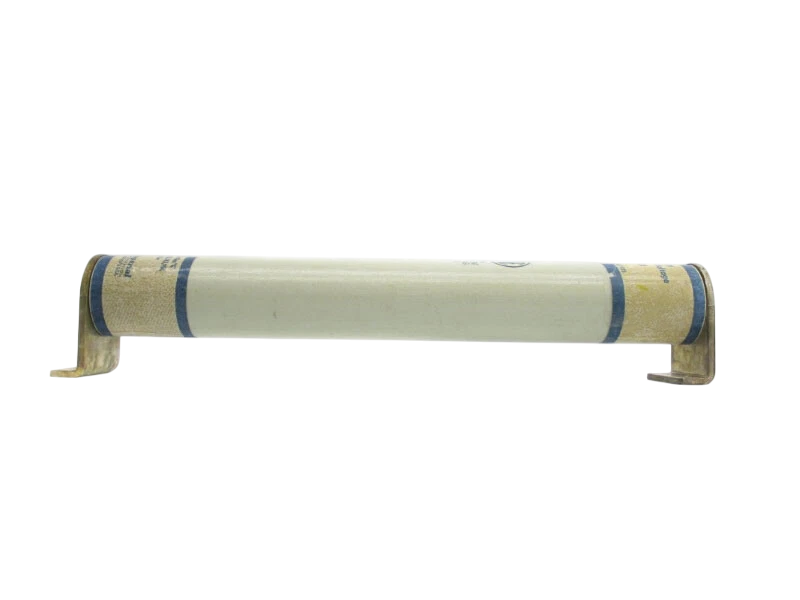

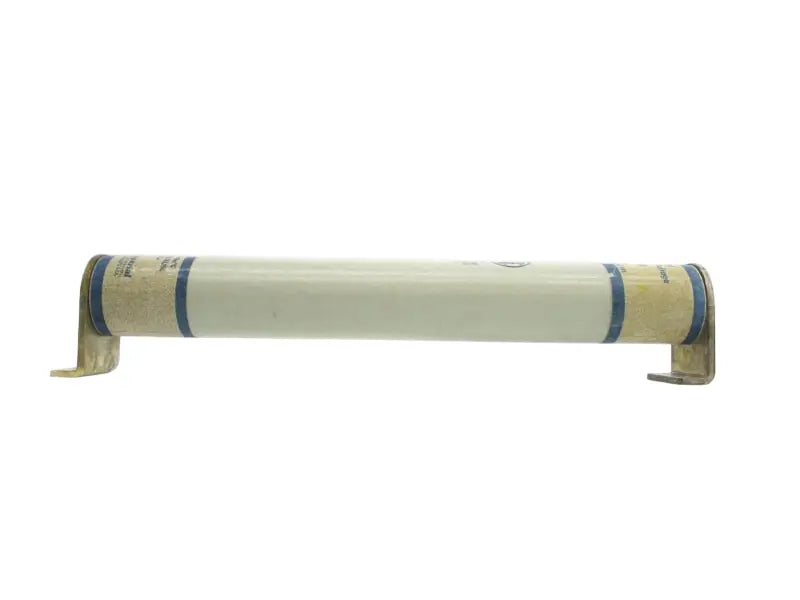

225-007-978 is an Eaton 150E rated medium voltage current limiting fuse designed for transformer and feeder protection.This fuse features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. It is rated for 15.5 kV voltage and 150 amps, with a 50,000 A symmetrical interrupting rating. The clip-lock double barrel design ensures positive installation, and the fuse tube provides UV and moisture protection, making it suitable for both indoor and outdoor applications. It meets E requirements per ANSI C37.46 and general purpose requirements per ANSI C37.40 standards.
- Key Specifications
- Voltage Rating: 15.5 kV
- Amperage: 150 A
- Interrupting Rating: 50,000 A symmetrical
- Fuse Type: Current limiting
- Construction: Filament wound glass epoxy tube with silica filler
- Terminals: Silver-plated copper endcaps
- Design: Clip-lock double barrel
- Standards: ANSI C37.46, ANSI C37.40
- Application: Transformer and feeder protection
- Suitable for indoor and outdoor use
Specifications
- Part Number: 225-007-978
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 150
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 3
- Clip Center : 21.25
Product Data
- Weight : 43
