Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-977

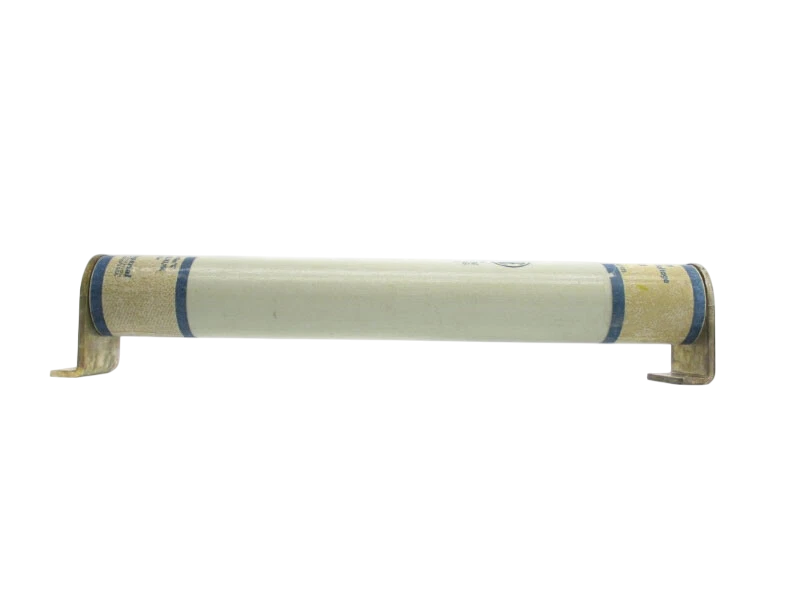

225-007-977 is a Eaton 125 amp, 15.5 kV CL-14 current limiting medium voltage fuse designed for transformer and feeder protection.225-007-977 features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps. It provides UV and moisture protection, making it suitable for both indoor and outdoor applications. This fuse meets E-rated requirements per ANSI C37.46 and general purpose requirements per ANSI C37.40 standards. It includes an open fuse indicator for easy troubleshooting and a clip-lock double barrel design for secure installation.
- Amperage: 125A
- Voltage Rating: 15.5 kV
- Type: CL-14 Current Limiting Fuse
- Construction: Filament wound glass epoxy tube with silica filler
- Terminals: Silver-plated copper endcaps
- Interrupt Rating: 63kA Symmetrical (10-200A range)
- Mounting: Clip-lock double barrel design
- Standards: ANSI C37.46 and ANSI C37.40 compliant
- Open fuse indicator for troubleshooting
- Suitable for indoor and outdoor use
Specifications
- Part Number: 225-007-977
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 125
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 21.25
Product Data
- Weight : 5
