Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-976

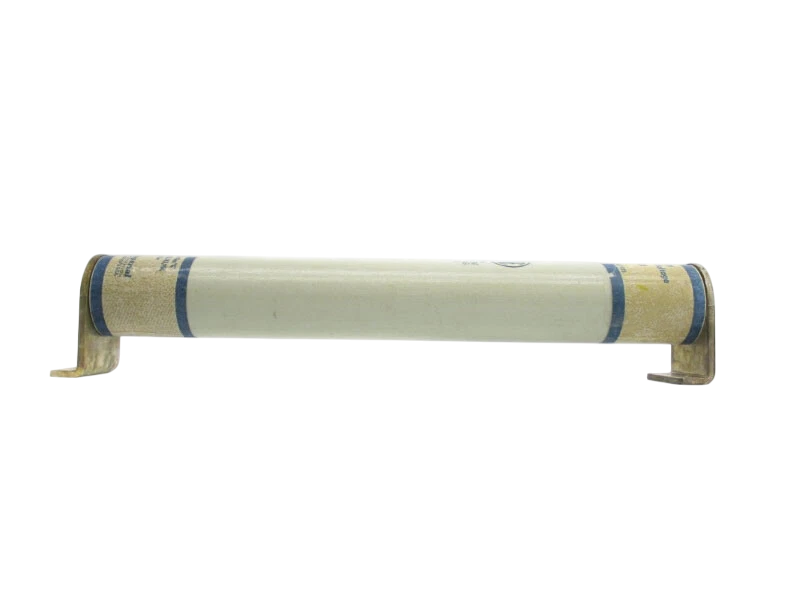

225-007-976 is an E-rated medium voltage, current-limiting fuse designed for transformer and feeder protection applications. This Eaton Bussmann series fuse features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. The fuse is suitable for both indoor and outdoor installations due to its UV and moisture protection properties. Key Specifications
- Voltage Rating: 15.5kV
- Amperage: 125A
- Interrupt Rating: 63kA Sym. Max
- Construction: Filament wound glass epoxy fuse tube with silica filler
- Terminals: Silver-plated copper endcaps
- Mounting Style: Clip-lock double barrel design
- Open Fuse Indication: 16mm indicator travel distance
- Agency Certification: Meets E requirements per ANSI C37.46
- Agency Certification: Meets General Purpose requirements per ANSI C37.40
Specifications
- Part Number: 225-007-976
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 100
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21.25
Product Data
- Weight : 16
