Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-975

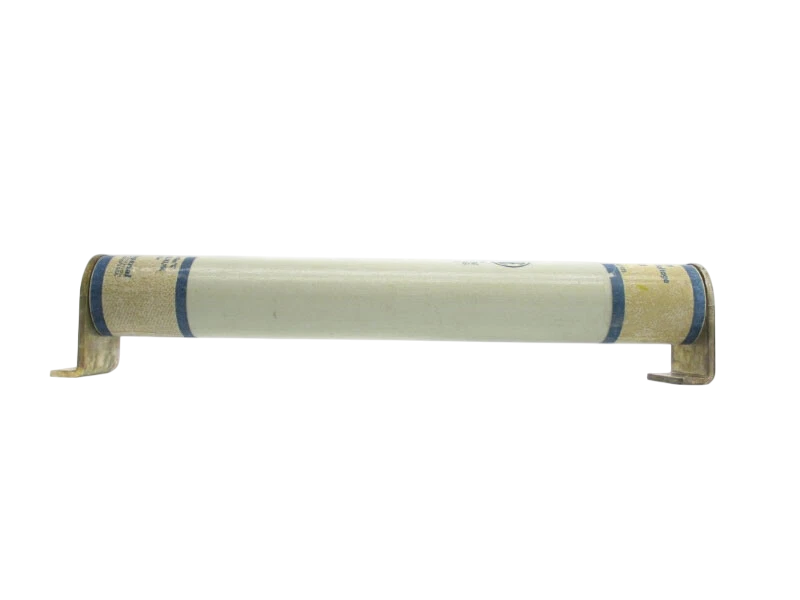

225-007-975 is an E-rated medium voltage, current-limiting fuse designed for transformer and feeder protection applications.
The ECL155-100E features a filament wound, glass epoxy fuse tube with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. This construction provides UV and moisture protection, making it suitable for both indoor and outdoor installations. The fuse includes an open fuse indicator with a 16mm indicator travel distance for easy troubleshooting. The clip-lock double barrel fuse design assures positive installation.
- Voltage Rating: 15.5kV
- Amperage: 100A
- Interrupt Rating: 63kA Sym.
- E-Rated per ANSI C37.46
- General Purpose per ANSI C37.40
- Construction: Filament wound glass epoxy tube
- Terminals: Silver-plated copper endcaps
- Mounting: Clip-lock double barrel design
- Indicator: Open fuse indication (16mm travel distance)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 225-007-975
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 80
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21.25
Product Data
- Weight : 16
