Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-970

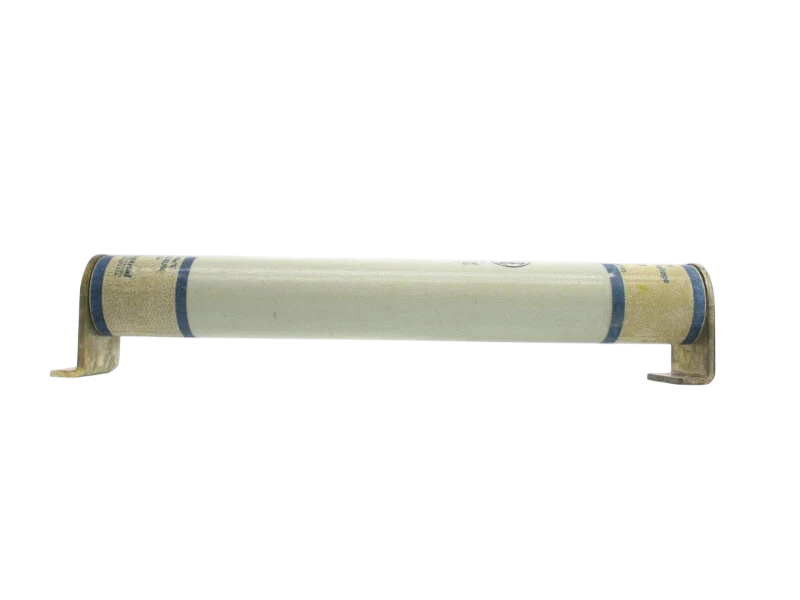

225-007-970 is an Eaton ECL155-30E medium voltage current-limiting fuse designed for transformer and feeder protection.This fuse features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. It is rated for 30 amps and 15.5 kV with a symmetrical interrupt rating of 50kA. The clip-lock double barrel design ensures positive installation and the fuse tube provides UV and moisture protection, making it suitable for both indoor and outdoor applications. It also includes an open fuse indicator for ease of troubleshooting.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 15.5 kV
- Interrupt Rating: 50kA Symmetrical Max
- Fuse Type: Current-Limiting
- Construction: Filament wound glass epoxy tube with silica filler
- Terminals: Silver-plated copper
- Design: Clip-lock double barrel
- Application: Transformer and feeder protection
- Open fuse indicator included
- Suitable for indoor and outdoor use
- Agency Certifications: Meets ANSI C37.46 and ANSI C37.40 E requirements
Specifications
- Part Number: 225-007-970
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 25
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 18.25
Product Data
- Weight : 15
