Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-969

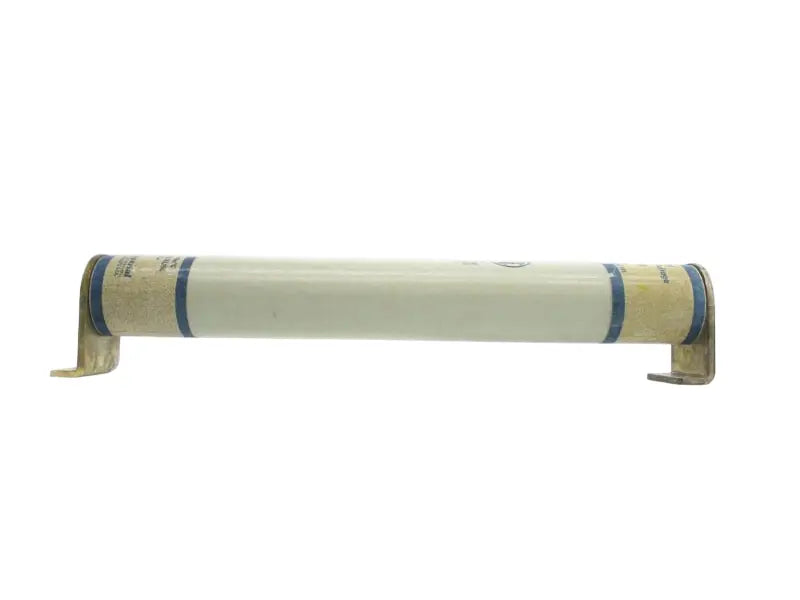

225-007-969 is an E-rated medium voltage, current-limiting fuse designed for transformer and feeder protection applications. This fuse provides reliable circuit protection in demanding electrical environments. The Eaton ECL155 series fuse features a filament wound, glass epoxy fuse tube with silica filler and silver-plated copper terminals and endcaps. It contains a silver element in a double concentric helical configuration, ensuring robust performance and durability. The fuse is suitable for both indoor and outdoor installations due to its UV and moisture protection.
- Part Number: 225-007-969
- Manufacturer: Eaton
- Series: ECL155
- Voltage: 15.5kV
- Amperage: 20A
- Interrupt Rating: 63kA Sym. Max
- Mounting Type: Clip-lock double barrel
- Construction: Filament wound, glass epoxy tube, silica filler, silver-plated copper terminals
- Agency Information: Meets E requirements per ANSI C37.46
- Application: Transformer and feeder protection
- Features: Open fuse indication, positive installation
- Protection: UV and moisture resistant
Specifications
- Part Number: 225-007-969
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 20
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 18.25
Product Data
- Weight : 15
