2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-968

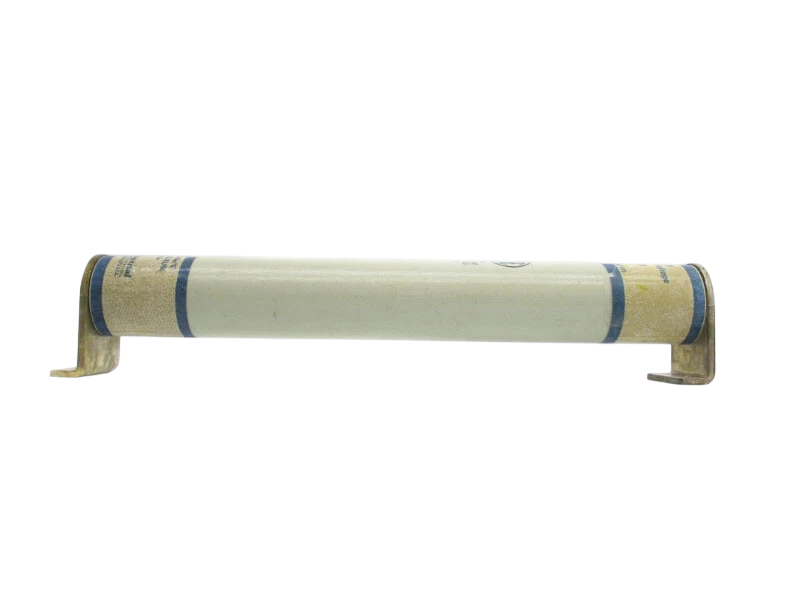

225-007-968 is an ECL155 series E-rated medium voltage current-limiting fuse designed for transformer and feeder protection. This fuse features a filament wound glass epoxy tube construction with silica filler and silver-plated copper terminals for reliable performance in demanding electrical environments. The ECL155 fuse is engineered for use in 15.5kV systems and provides robust protection with a 20A current rating. Its double barrel clip-lock design ensures secure installation and positive contact, while the open fuse indicator allows for easy troubleshooting. The filament wound glass epoxy tube offers UV and moisture resistance, making it suitable for both indoor and outdoor applications.
- Part Number: 225-007-968
- Manufacturer: Eaton
- Series: ECL155
- Rated Voltage: 15.5kV
- Rated Current: 20A
- Interrupting Rating: 63kA Symmetrical
- Mounting Type: Clip-Lock Double Barrel
- Construction: Filament wound glass epoxy tube, silica filler, silver-plated copper terminals
- Agency Approval: Meets E requirements per ANSI C37.46
- Application: Transformer and feeder protection
- Indication: Open fuse indicator
- Environmental: UV and moisture resistant
Specifications
- Part Number: 225-007-968
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 15500
- Amperage : 15
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 18.25
Product Data
- Weight : 15
