Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-955

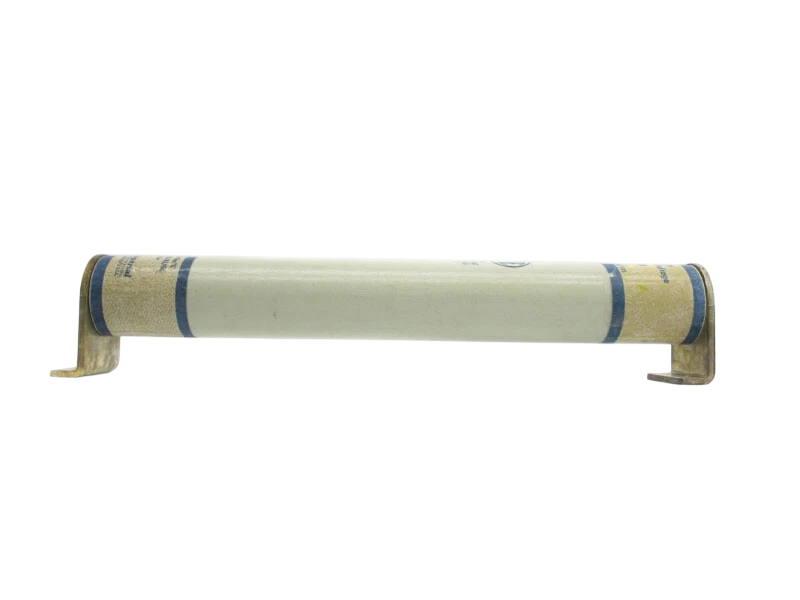

225-007-955 is an Eaton ECL055-750E medium voltage current-limiting fuse designed for transformer and feeder protection.This fuse features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals. It provides reliable current limiting protection with an open fuse indication feature showing a 16mm indicator travel distance. Rated for 750 amps and 5.5kV voltage, it meets E requirements per ANSI C37.46 and ANSI C37.40 standards.
- Type: Medium Voltage Current-Limiting Fuse
- Amperage: 750A
- Voltage Rating: 5.5kV
- Construction: Filament wound glass epoxy tube with silica filler
- Terminals: Silver-plated copper
- Open Fuse Indication: 16mm indicator travel
- Standards: ANSI C37.46, ANSI C37.40
- Application: Transformer and feeder protection
Specifications
- Part Number: 225-007-955
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 600
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 21.25
Product Data
- Weight : 45
